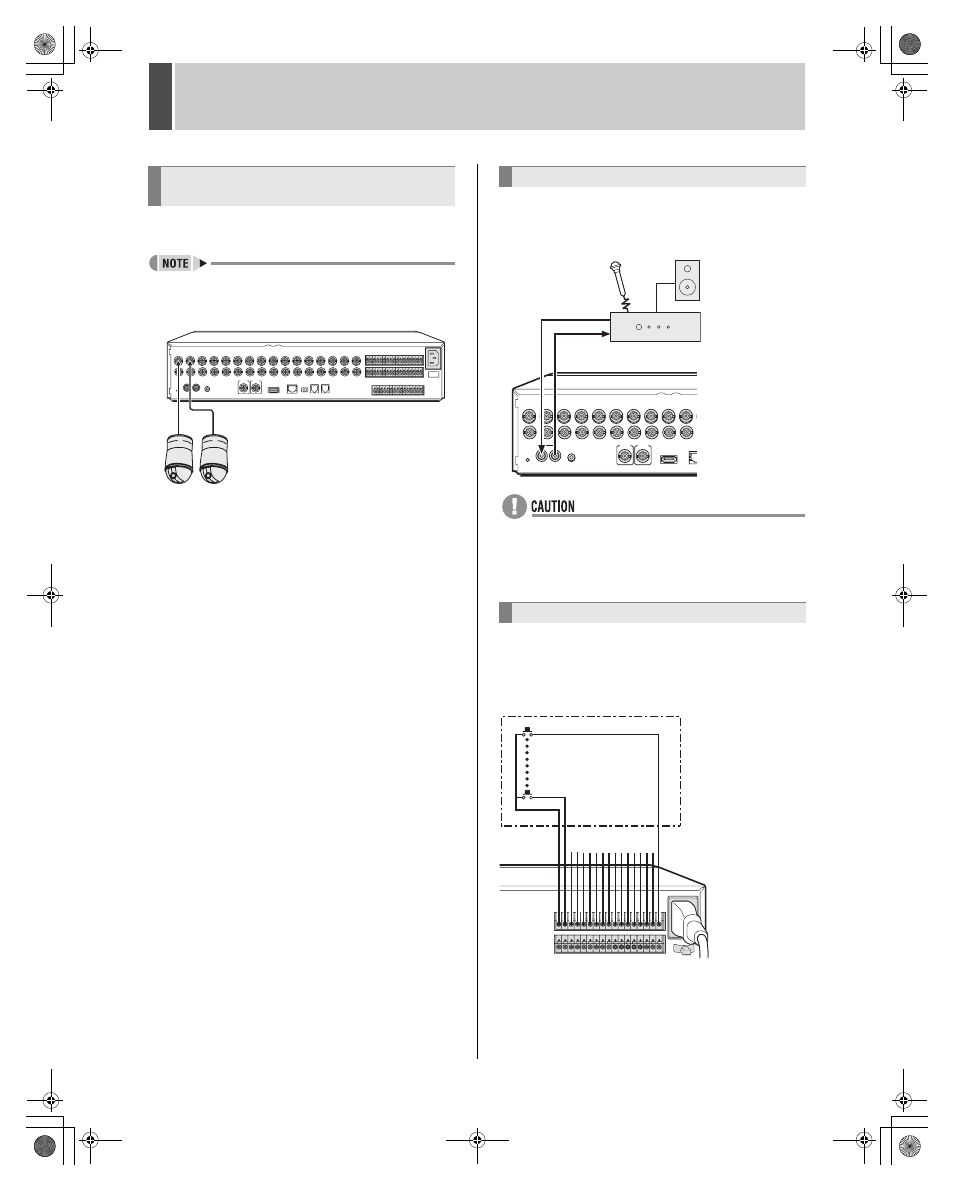

INSTALLATION AND CONNECTIONS 3
English
13
Turn off all devices and use a coaxial cable to connect the
devices.
z Use the same procedure to connect using PELCO and
BBV.
1
Connect cameras to the VIDEO IN
terminals.
2
Set the protocols and address in the
screen.
(JP.97)
3
Operate the dome cameras with the
front panel buttons. (JP.99)
An amplifier is connected when using a microphone or
external speakers with the digital video recorder.
z Audio input from the AUDIO IN terminal and the MIC IN
terminal cannot be performed simultaneously. If both
terminals have devices connected, the MIC IN terminal
is used.
When using external alarms (i.e., intruder sensors and the
like), external switches are to be connected to the ALARM
IN terminals.
The DSR-3709 has nine ALARM IN terminals.
Connecting SANYO protocol devices
(Dome Cameras)
Camera
Connecting an amplifier
Connecting ALARM IN terminals
AUDIO
IN OUT
IN OUT
Audio input
Audio
output
Amp
(sold separately)
1
16
C 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Connecting ALARM IN
terminals to external
switches
