Page 102: Checking modified screen positions
SCREEN SET
5
English
101
4

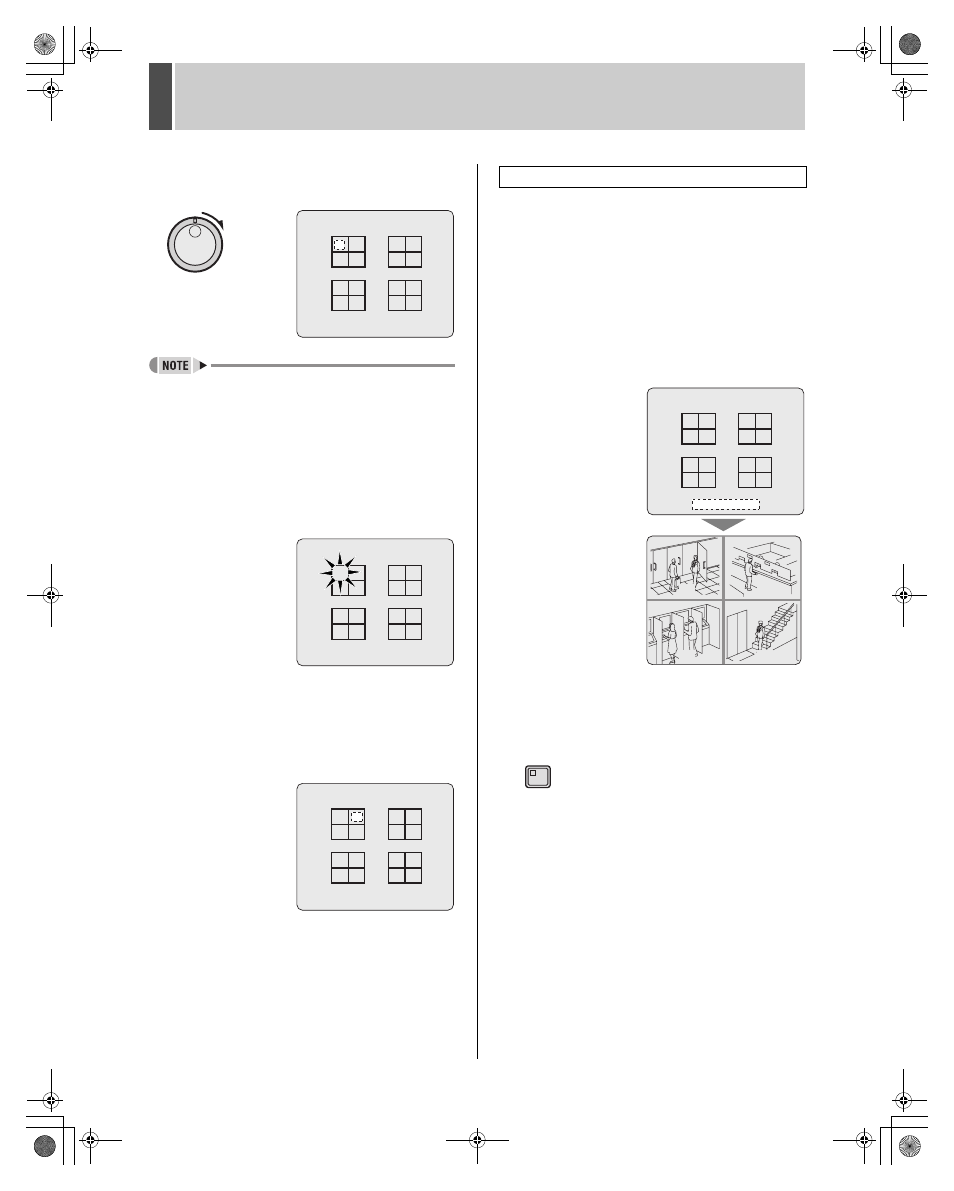

Turn the shuttle dial clockwise.
The
z
When arranging display position for 9 screen display
select “MULTI 9 POSITION SET” and for 16 screen
display select “MULTI 16 POSITION.”
16 screen display can only be set on the DSR-3716.
5
Turn the jog dial to select “01” of
“QUAD1”, and then turn the shuttle dial
clockwise.
“01” of “QUAD1” flashes.
6
Set “05” with the jog dial or numeric
keys and turn the shuttle dial to the
right.
“01” of “QUAD1” changes to “05.”
Select one of the “CHECK THE SCREEN” at the bottom of
the modification screen to confirm that the modified screen
positions are as intended.
7
Turn the jog dial to select “CHECK THE
SCREEN” and then turn the shuttle dial
clockwise.
QUAD 1 pattern is displayed. Pressing the [QUAD] button
changes the display in the order QUAD B J C J D.
Turn the shuttle dial counter-clockwise to return to the
8
Press the [EXIT/OSD] button.
The setting procedure is ended and the display returns to
the normal screen.
QUAD1 QUAD2
QUAD3 QUAD4
CHECK THE SCREEN ->
01
02
05
04
03
06
08
07
09
10
13
12
11
14
16
15
QUAD1 QUAD2
QUAD3 QUAD4
CHECK THE SCREEN ->
01
02
05
04
03
06
08
07
09
10
13
12
11
14
16
15
QUAD1 QUAD2
QUAD3 QUAD4
CHECK THE SCREEN ->
05
02
05
04
03
06
08
07
09
10
13
12
11
14
16
15
Checking modified screen positions
QUAD1 QUAD2
QUAD3 QUAD4
CHECK THE SCREEN ->
05
02
05
04
03
06
08
07
09
10
13
12
11
14
16
15
02
05
04
03
EXIT/OSD
