MENU SETTING SEQUENCE 3
122
English
OTHER
1.DISPLAY SET ->
2.BUZZER SET ->
3.SECURITY LOCK SET ->
4.HDD SET ->
5.NETWORK SET ->
6.RS-485 SET ->
7.CAMERA CONTROL SET ->
MOVE:JOG SELECT:SHUTTLE
1.MULTI SCREEN : NORMAL
QUAD POSITION SET ->
MULTI 9 POSITION SET ->
MULTI 16 POSITION SET ->
2.SEQUENCE SET : 1S
SEQUENCE SET ->
MAIN/MON.2 MONITOR SET ->
3.MASK : OFF
MASK SET ->
4.COLOR LEVEL SET ->
POWER LOSS RECOVER
#011 01-14 19:15 15-01 09:55
01-13 21:13 14-01 09:21
01-03 18:48 05-01 08:56
01-01 09:49 03-01 10:32
USED TIME DISK1 USE : 00096H
DISK2 USE : -----H
POWER : 00096H
F/W: M 0.30-00 / S 0.20-04 / C 0.09-00
DATE TIME AREA
10-26 18:25 ALL AREAS (INITIALIZED)
10-26 23:18 ALL AREAS (INITIALIZED)
10-26 23:18 ARCHIVE (AREA RESET)
10-26 23:18 ALARM REC (AREA RESET)
10-26 23:18 NORMAL REC (AREA RESET)
10-26 23:16 ALL AREAS (INITIALIZED)
10-26 23:15 ALL AREAS (INITIALIZED)
----- --:-- ------ (------)
DVR TYPE VER. SA16-03
SAVE MENUS TO CF ->
LOAD MENUS FROM CF ->
COPY RECORDING AREA SETTINGS: NO
*IF YOU CHOOSE $YES$ OF THE ABOVE MENU,
HARD DISK WILL BE INITIALIZED !
DATE : ON
TIME : ON
QUALITY : ON
AUDIO : ON
ALARM COUNT : ON
ALARM TYPE : ON
TITLE : ON
VIDEO LOSS : ON
K
QUAD1 QUAD2
QUAD3 QUAD4
CHECK THE SCREEN ->
02 05
04 03
06
08 07
09 10 13
12 11
14
16 15
K
CHECK THE SCREEN ->
02 03
04 05 06
07 08 09
K
CHECK THE SCREEN ->
05
09
13
02
06
10
14
03
07
11
15
04
08
12
16
ALARM : OFF
DISK FULL : ON
DISK ERROR : ON
LOCK WARNING : ON
KEY IN : OFF
NON REC : OFF
K
LEVEL PASSWORD(4-8) USE
ADMIN -------- OFF
USER -------- OFF
REC CONTROL : ADMIN
CAMERA CONTROL : ADMIN
DISK1 : 82GB
DISK2 : ---GB
DISK INITIALIZE ->
CAUTION : ALL RECORDING WILL BE ERASED!
MIRRORING : OFF
PLAYBACK DRIVE : ***
CAUTION : RECORDING SPEED WILL BE
LIMITED BY MIRRORING!
K
NETWORK CONTROL : OFF
NETWORK STATUS : ON
IP ADDRESS : 192.168. 0. 1
SUBNET MASK : 255.255.255. 0
GATEWAY : 0. 0. 0. 0
PORT : 00080
ID : PASSWORD (4-8)
ID1 : 1111----
ID2 : 2222----
ID3 : 3333----
K
DATA SPEED : 19200
STATUS INFO : ON
ALARM INFO : ON
ADDRESS : 000
TIME PERIOD : T-1 (06:00-11:30)
CH 01 02 03 04 05 06 07 08
MAIN MON. ON ON ON ON ON ON ON ON
MON.2 ON ON ON ON ON ON ON ON
CH 09 10 11 12 13 14 15 16
MAIN MON. ON ON ON ON ON ON ON ON
MON.2 ON ON ON ON ON ON ON ON
CH 01 02 03 04 05 06 07 08
MAIN MON. OFF OFF OFF OFF OFF OFF OFF OFF
MON.2 OFF OFF OFF OFF OFF OFF OFF OFF
NETWORK OFF OFF OFF OFF OFF OFF OFF OFF
CH 09 10 11 12 13 14 15 16
MAIN MON. OFF OFF OFF OFF OFF OFF OFF OFF
MON.2 OFF OFF OFF OFF OFF OFF OFF OFF
NETWORK OFF OFF OFF OFF OFF OFF OFF OFF
CH01 COLOR LEVEL : 5
MAIN MON. FULL : 1S
QUAD : 1S
MON.2 FULL : 1S
INDIVIDUAL INTERVAL (SEC)
01: 1S 02: 1S 03: 1S 04: 1S
05: 1S 06: 1S 07: 1S 08: 1S
09: 1S 10: 1S 11: 1S 12: 1S
13: 1S 14: 1S 15: 1S 16: 1S
CH PROTOCOL ADD. | CH PROTOCOL ADD.
| 09 OFF ---
02 OFF --- | 10 OFF ---
03 OFF --- | 11 OFF ---
04 OFF --- | 12 OFF ---
05 OFF --- | 13 OFF ---
06 OFF --- | 14 OFF ---
07 OFF --- | 15 OFF ---
08 OFF --- | 16 OFF ---
01
01
01
TIME PERIOD : T-1 (06:00-11:30)
01 OFF ---
1)

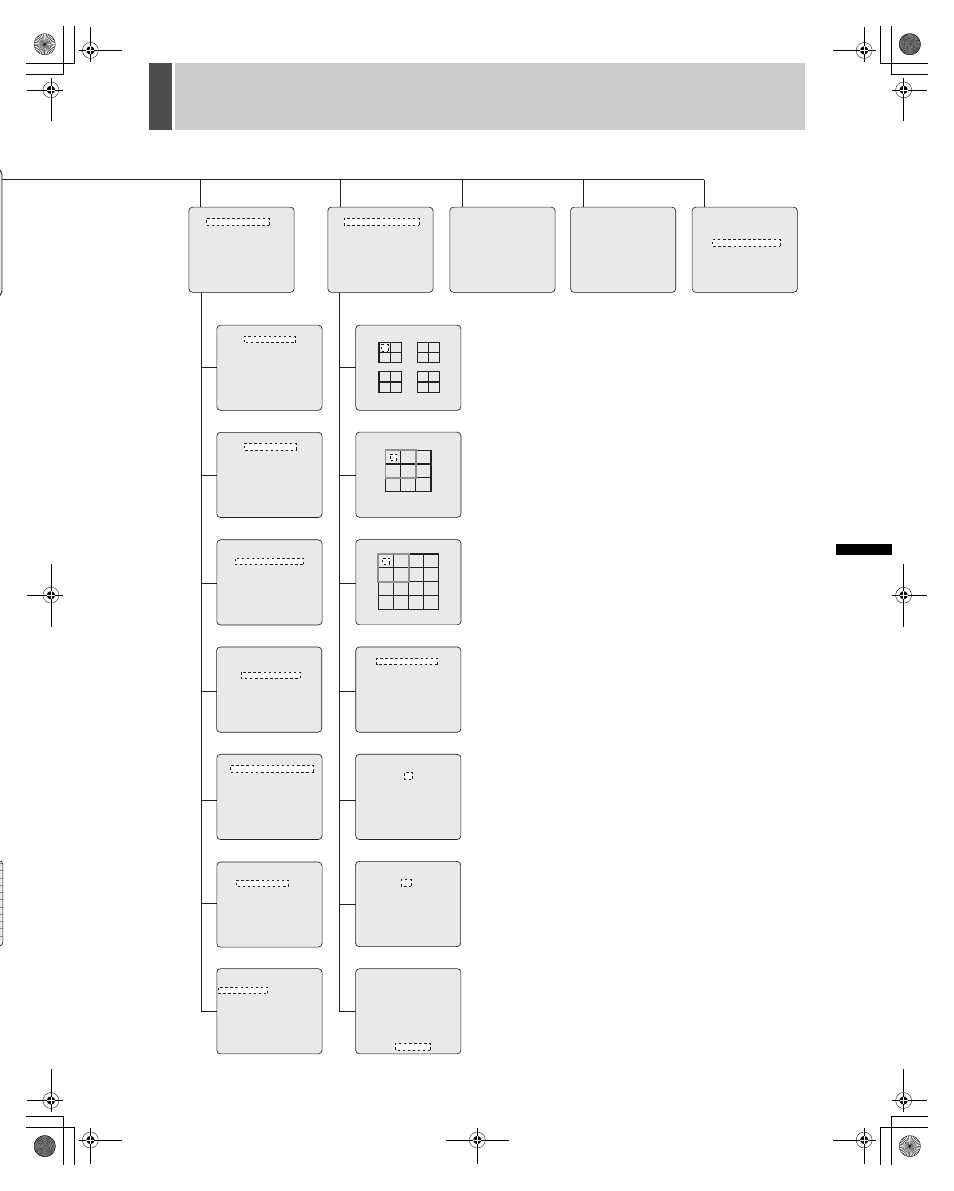

GENERAL SET (→P.86) COPY MENU SETTINGS (→P.109)
DISPLAY SET (→P.86)
BUZZER SET (→P.88)
SECURITY LOCK SET (→P.89)
SCREEN SET (→P.100)
QUAD POSITION SET MENU (→P.100)
MULTI 9 POSITION SET MENU (→P.100)
MULTI 16 POSITION SET MENU (→P.100)
MAIN/MON2 MONITOR SET (→P.102)
MASK SET (→P.104)
COLOR LEVEL SET (→P.105)
POWER LOSS/USED TIME (→P.107) INITIALIZATION LOG (→P.108)
HDD SET (→P.92) SEQUENCE SET (→P.102)
NETWORK SET (→P.93)
RS-485 SET (→P.96)
CAMERA CONTROL SET (→P.97)
