86
English
SE
TTIN
GS
4

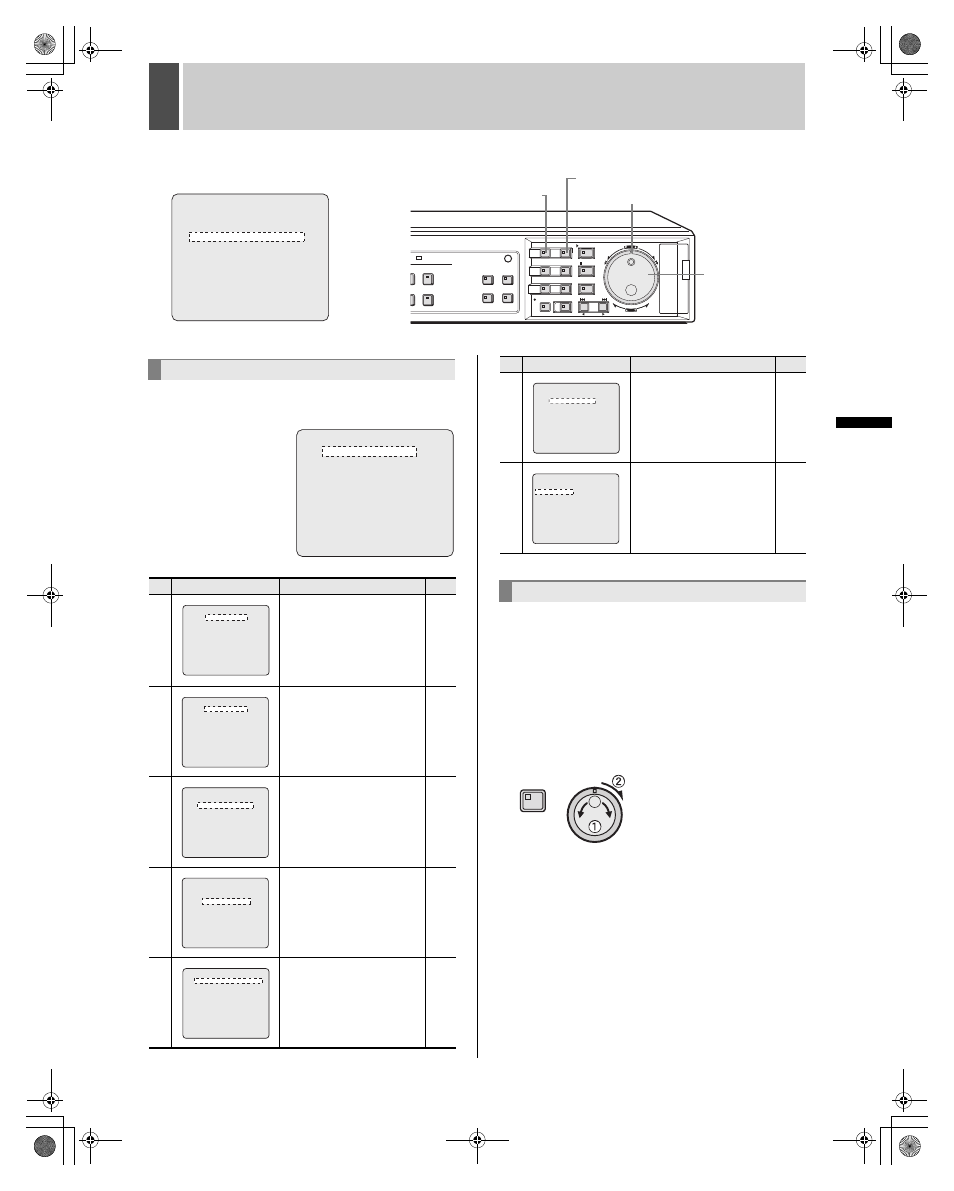

GENERAL SET
The is used to make the following
settings.
Use the following procedure to remove the date, time, or
other information from the operation display area. All items
are set to “ON” by default. Where necessary, the required
items can be turned off.
1
Press the [MENU] button and turn the
jog dial to select “3. GENERAL SET”,
and then turn the shuttle dial clockwise.
The screen is displayed.
MOVE:JOG SELECT:SHUTTLE
Main menu
CARD CARD
MENU RESET
EJECT
[EXIT/OSD] button
Jog dial
[MENU] button Shuttle dial
General settings
Setting Description Ref.
1
Switches display items such
as date and time from the
operation display area.
Settings can also be made
for situations where video
signals are lost.
P.86
2
Turns the buzzer on or off.
P.88
3
Lets you set passwords to
prevent unauthorized users
from operating the digital
video recorder.
P.89
4
Allows confirmation of hard
disk capacity and performs
initialization.
Settings can also be made
for mirroring.
P.92
5
Allows the digital video
recorder to be connected to a
PC via a network.
P.93
1.DISPLAY SET ->
2.BUZZER SET ->
3.SECURITY LOCK SET ->
4.HDD SET ->
5.NETWORK SET ->
6.RS-485 SET ->
7.CAMERA CONTROL SET ->
MOVE:JOG SELECT:SHUTTLE
DATE : ON
TIME : ON
QUALITY : ON
AUDIO : ON
ALARM COUNT : ON
ALARM TYPE : ON
TITLE : ON
VIDEO LOSS : ON
ALARM : OFF
DISK FULL : ON
DISK ERROR : ON
LOCK WARNING : ON
KEY IN : OFF
NON REC : OFF
LEVEL PASSWORD(4-8) USE
ADMIN -------- OFF
USER -------- OFF
REC CONTROL : ADMIN
CAMERA CONTROL : ADMIN
DISK1 : 82GB
DISK2 : ---GB
DISK INITIALIZE ->
CAUTION : ALL RECORDING WILL BE ERASED!
MIRRORING : OFF
PLAYBACK DRIVE : ***
CAUTION : RECORDING SPEED WILL BE
LIMITED BY MIRRORING!
NETWORK CONTROL : OFF
NETWORK STATUS : ON
IP ADDRESS : 192.168. 0. 1
SUBNET MASK : 255.255.255. 0
GATEWAY : 0. 0. 0. 0
PORT : 00080
ID : PASSWORD (4-8)
ID1 : 1111----
ID2 : 2222----
ID3 : 3333----
6
Lets you make settings when
using RS-485.
P.96
7
Set when cameras with
remote operation capability
are connected.
P.97
Setting data display
Setting Description Ref.
DATA SPEED : 19200
STATUS INFO : ON
ALARM INFO : ON
ADDRESS : 000
CH PROTOCOL ADD. | CH PROTOCOL ADD.
01 OFF --- | 09 OFF ---
02 OFF --- | 10 OFF ---
03 OFF --- | 11 OFF ---
04 OFF --- | 12 OFF ---
05 OFF --- | 13 OFF ---
06 OFF --- | 14 OFF ---
07 OFF --- | 15 OFF ---
08 OFF --- | 16 OFF ---
MENU
