Chapter 8 Application Notes

8.1

Application Diagram

The LAN8710 requires few external components. The voltage on the magnetics center tap can range
from 2.5 - 3.3V.

8.1.1

MII Diagram

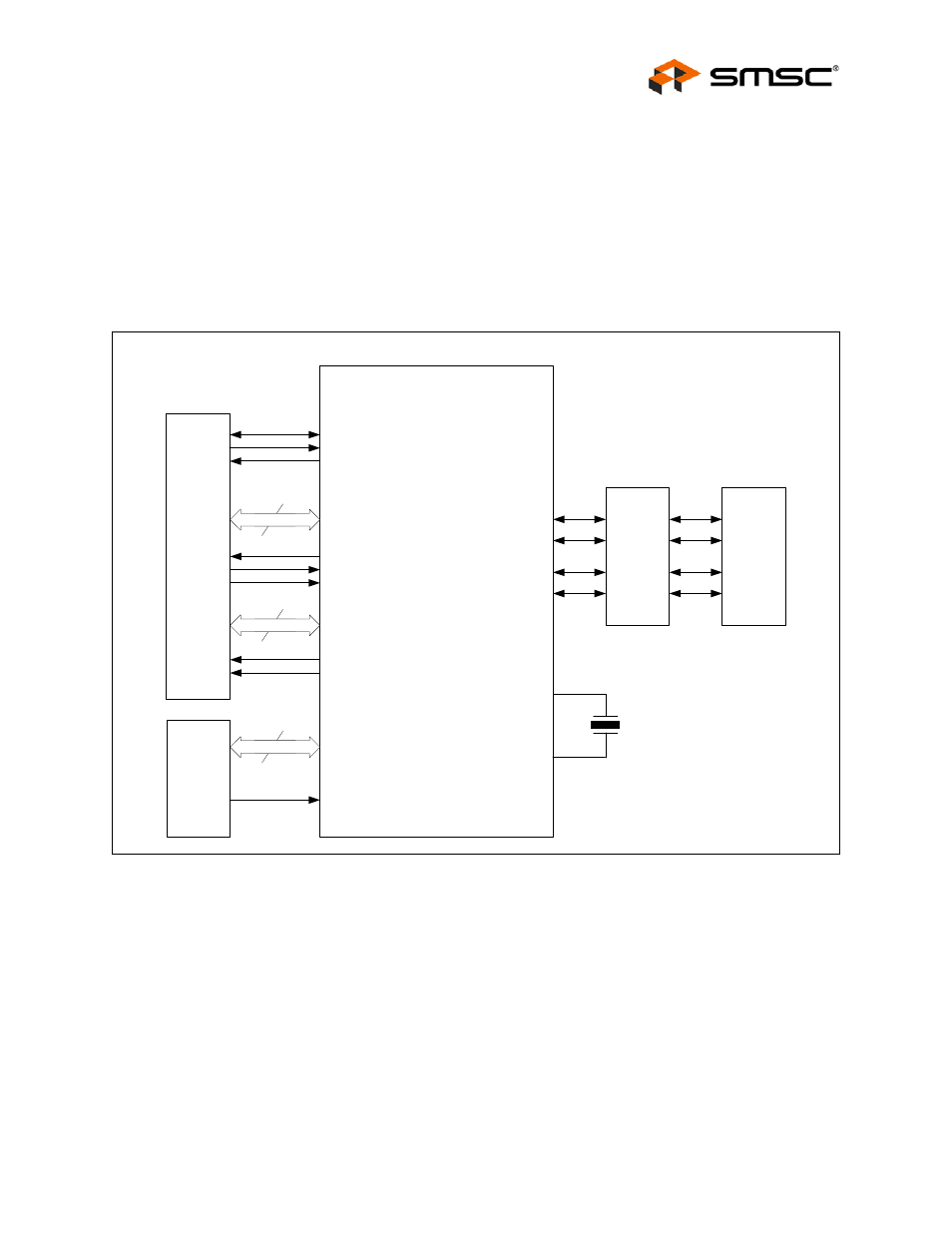

Figure 8.1 Simplified Application Diagram

LAN8710

10/100 PHY

32-QFN

MII

TXP

TXN

Mag

RJ45

RXP

RXN

25MHz

XTAL1/CLKIN

XTAL2

TXD[3:0]

4

RXD[3:0]

RXCLK
RXDV

4

MII

LED[2:1]

2

Interface

MDIO
MDC
nINT

nRST

TXCLK
TXER
TXEN
