6.2.2 MII 10Base-T TX/RX Timings
6.2.2.1 10M MII Receive Timing

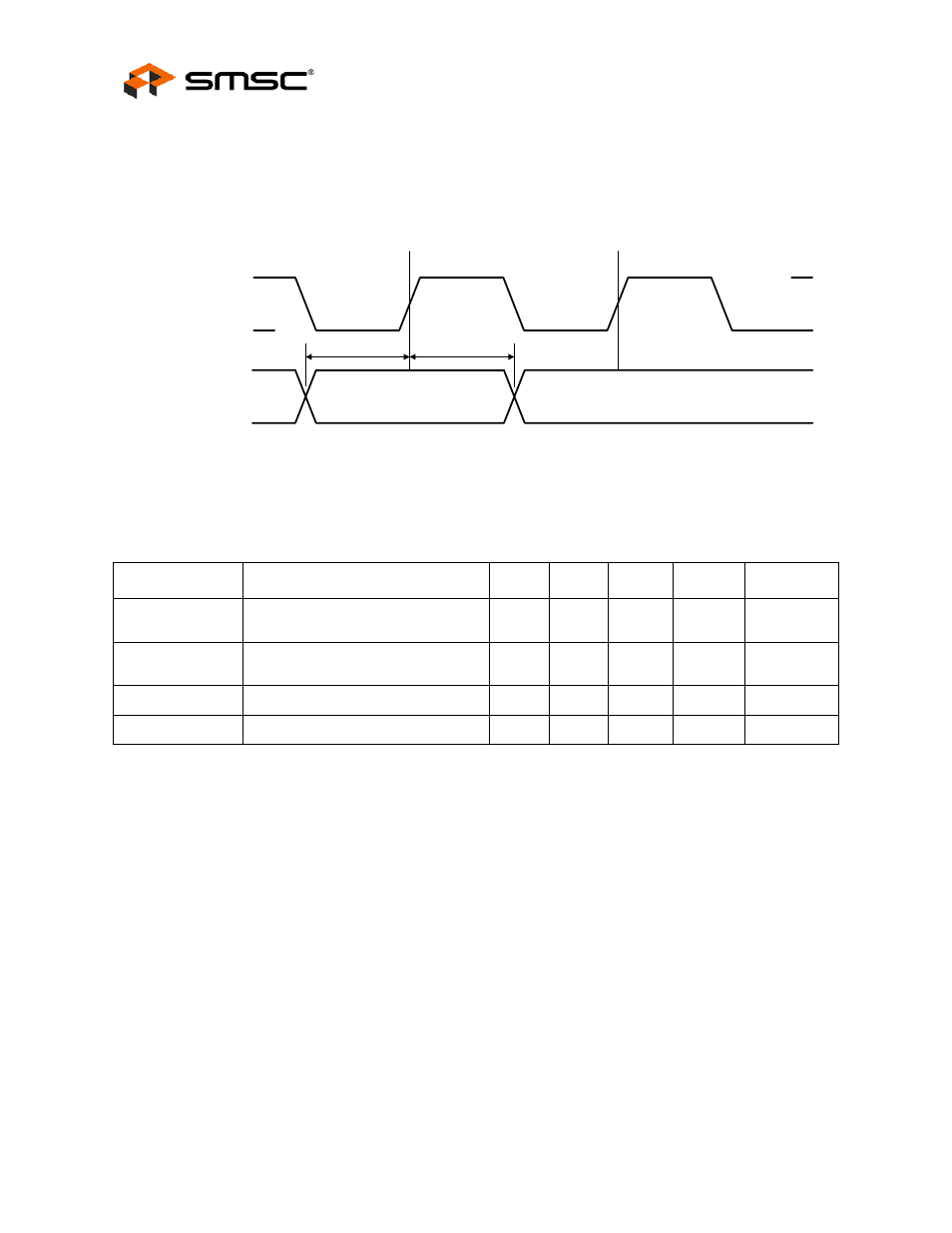

Figure 6.4 10M MII Receive Timing Diagram
Table 6.4 10M MII Receive Timing Values
PARAMETER DESCRIPTION MIN TYP MAX UNITS NOTES
T4.1 Receive signals setup to RXCLK
rising 10 ns
T4.2 Receive signals hold from RXCLK
rising 10 ns
RXCLK frequency 2.5 MHz
RXCLK Duty-Cycle 50 %
Clock Out -
RX_CLK
Data Out -
RXD[3:0]
T
4.1
RX_DV
T
4.2
Valid Data
