Revision 1.0 (04-15-09) 60 SMSC LAN8710/LAN8710i
DATASHEET
6.3 RMII 10/100Base-TX/RX Timings (50MHz REF_CLK IN)
6.3.1 RMII 100Base-T TX/RX Timings (50MHz REF_CLK IN)
6.3.1.1 100M RMII Receive Timing (50MHz REF_CLK IN)

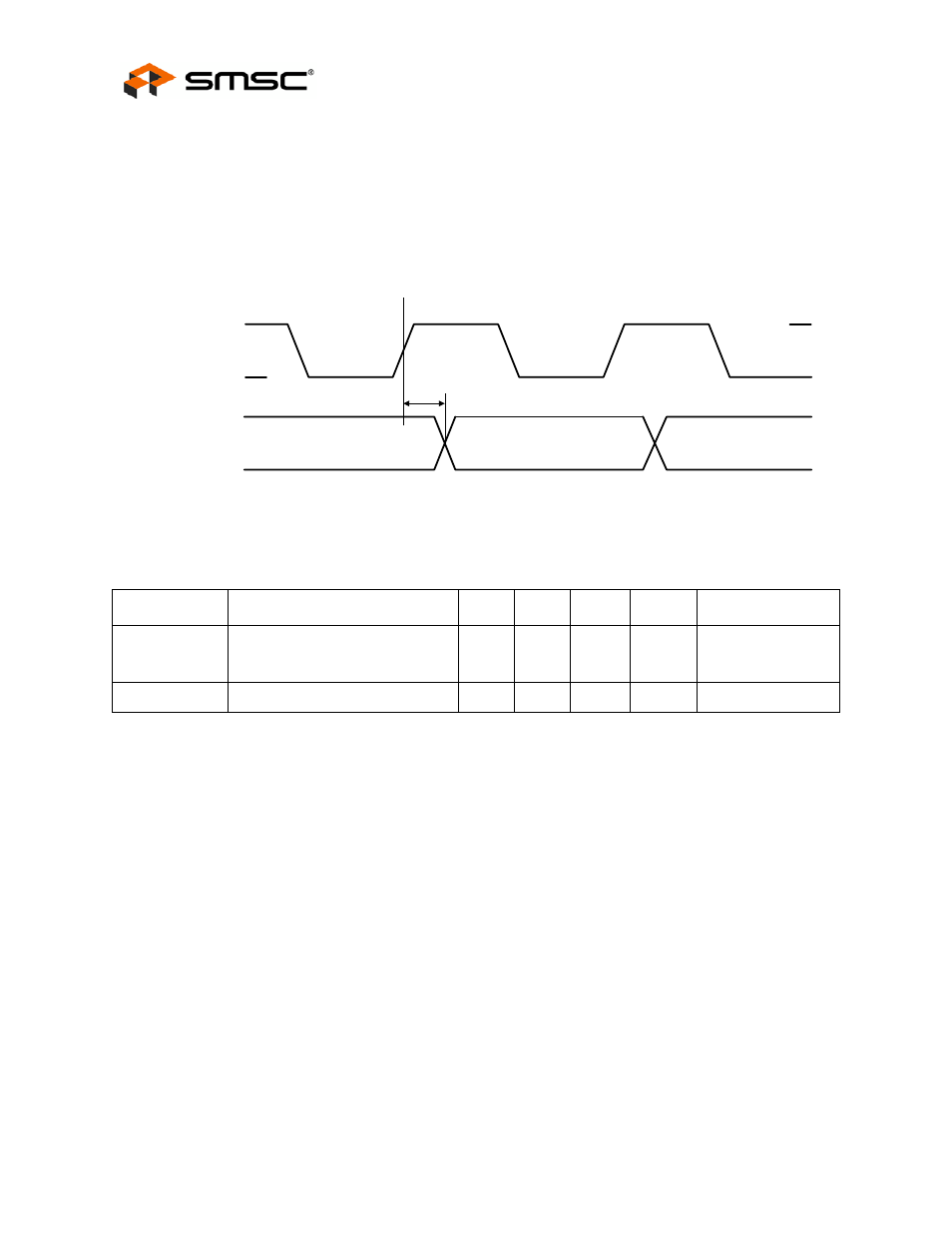

Figure 6.6 100M RMII Receive Timing Diagram (50MHz REF_CLK IN)
Table 6.6 100M RMII Receive Timing Values (50MHz REF_CLK IN)
PARAMETER DESCRIPTION MIN TYP MAX UNITS NOTES
T6.1 Output delay from rising edge of
CLKIN to receive signals output
valid 3 10 ns
CLKIN frequency 50 MHz
Clock In -
CLKIN
Data Out -
RXD[1:0]
CRS_DV
Valid Data
T
6.1
