-33-
Model W1823 (Mfg. Since 9/10)
SE
RV
IC
E
5. Loosen the two plastic screws that secure the cover
of the magnetic switch box shown in Figure 41, then
remove the cover.
6. Locate the incoming power and outgoing motor cords
(shown in Figure 42) inside the magnetic switch box.
Carefully note the destination of all of the wires
associated with these two cords, and record their
position so that you can return them to the corre-
sponding positions in the 220V magnetic switch box
assembly later.
7. Loosen all of the terminal screws that have wires
from the power cord or motor cord attached, then
remove the wires.
8. Remove the entire 110V magnetic switch box assem-
bly from the dust collector frame.
9. Install the 220V magnetic switch box assembly
(purchased separately) in place of the 110V switch
removed in Step 8, then re-install power and motor
wires on the 220V switch box assembly in the same
positions that they were in on the 110V switch.
Tighten all terminals.
10. At this point, the new remote control receiver inside
your new magnetic switch must be reprogrammed
so it can communicate with your old hand-held
control. To do this, complete the Remote Control
Reprogramming procedure on Page 29.
11. Close the magnetic switch box cover and secure it
with the two plastic screws.

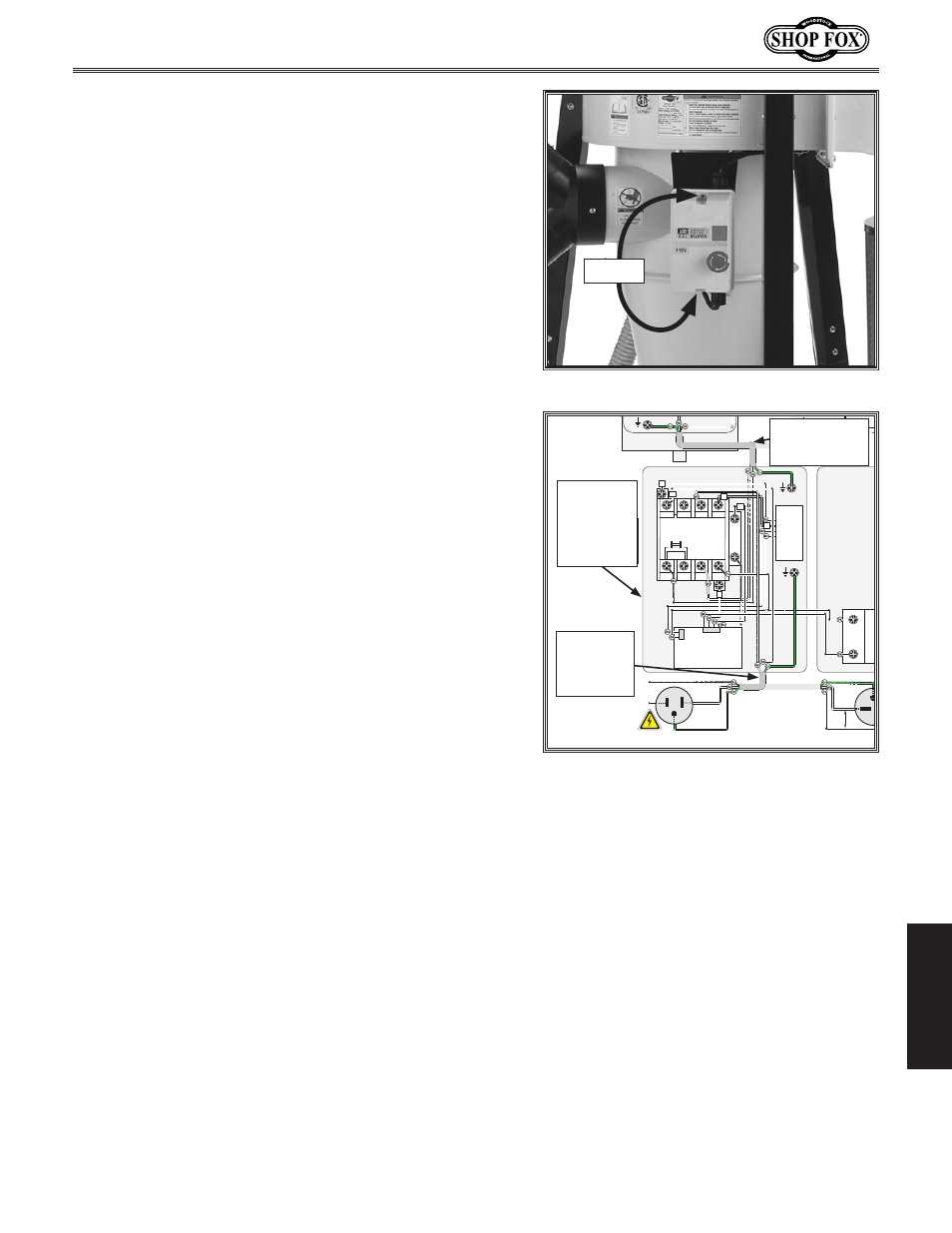

Figure 41. Magnetic switch box.
Figure 42. Magnetic switch.
Thermal
Overload
GND
Start
Capacitor 250MFD 250V
AC
Run
Capacitor 50MFD 250V
AC
A
B
T1/2 T3/6 8 T2/4
L1/1 L3/5 7 L2/3
Contactor
SDE MA-15 110V
Stop Switch
Remote Control
Reciever
Circuit Board
SJE-MSR-PCB
Motor Prewired
for 110V
Motor Junction Box
Rewired for 220V
Thermal
Overload
ON
Rewired for 220V
Rewired
for 220V
7V|0V|120V|0V Transformer
50/60Hz
Hot
Hot
Hot
Neutral
Ground
Ground 110 VAC
220V 6-15 Plug
(As Recommended)
220
VAC
G
GND
GND
GND
L1
L1
6
L2
L2
L2
Start
Capacitor 250MFD 250V
AC
Run
Capacitor
50MFD 250V
AC
5-15 Plug
(Prewired)
DX^e\k`Zjn`kZ_Yfo
Xjj\dYcp dljk Y\
i\gcXZ\[ n`k_ ))'M
df[\c]fi))'Mlj\%
Loosen
Outgoing
Motor Cord
Incoming
Power
Cord
Magnetic
Switch
Box
Assembly
