-11-
Model W1823 (Mfg. Since 9/10)
SE
TU
P
Keep machine disconnected from
power until instructed otherwise.
This machine has been carefully packaged for safe
transportation. If you notice the machine has been
damaged during shipping, please contact your authorized
Shop Fox dealer immediately.
Unpacking
SETUP
The following is a description of the main components
shipped with the Model W1823. Lay the components out
to inventory them.
Note: If you can't find an item on this list, check the
mounting location on the machine or examine the
packaging materials carefully. Occasionally we pre-install
certain components for safer shipping.

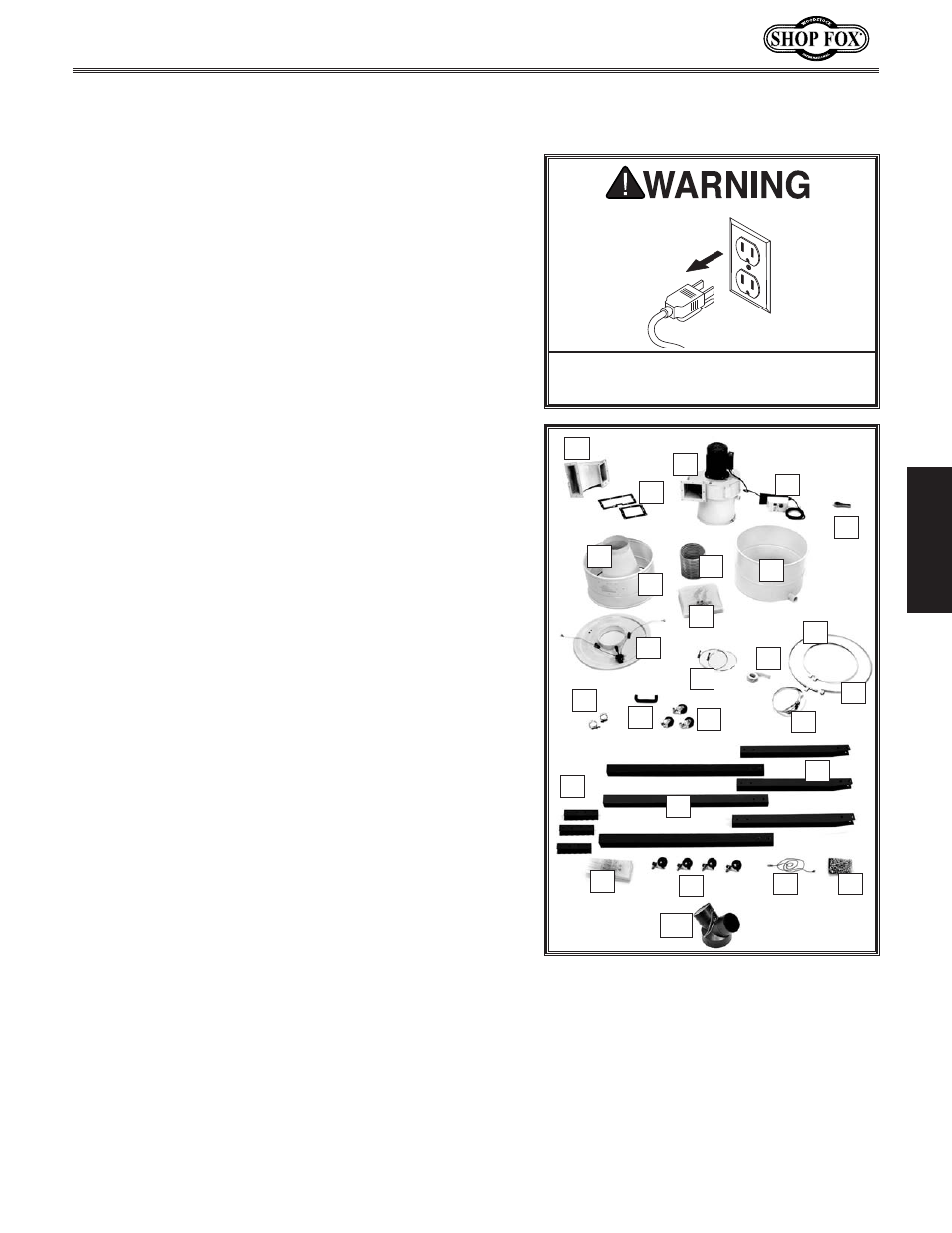

Main Inventory (Figure 5) Qty
A. Outlet Port..................................................1
B. Outlet Port Gasket Set ...................................1
C. Blower and Collector Assembly .........................1
D. Magnetic Switch Assembly for 110V ....................1
E. RF Remote Control ........................................1
F. Collection Drum ...........................................1
G. Cyclone Funnel .............................................1
H. Collection Drum Extension ...............................1
I. Dust Hose 7" Diameter ....................................1
J. Collection Drum Bag ......................................1
K. Collection Drum Lid w/Lift System .....................1
L. Hose Clamps 7" Diameter ................................2
M. Foam Tape ..................................................1
N. Collection Drum Clamp ...................................1
O. Barrel Clamp ...............................................1
P. Hose Clamps 1 3 ⁄
4
" Diameter .............................2
Q. Stand Leg Swivel Casters ................................3
R. Quick-Release Canister Bag Clamp .....................1
S. Collection Drum Handle ..................................1
T. Upper Legs ..................................................3
U. Lower Legs ..................................................3
V. Leg Connectors ............................................3
W. Canister Bag ................................................1
X. Collection Drum Swivel Casters .........................4
Y. Ground Wire ................................................1
Z. Hardware and Tool Bag (see Figure 6).................1
AA. Y-Adapter 6" x 4" x 4" w/Cap ............................1
Inventory
A
H
M
V
W
X
P
Q R
S
T
U
I
J
K
L
N
O
B
C
D
E
F
G
Figure 5. Main inventory.
Y Z
AA
