Se tu p – Woodstock PORTABLECYCLONE W1823 User Manual
Page 18
-16-
Model W1823 (Mfg. Since 9/10)
SE
TU
P
13. Fasten one end of the 1
1
⁄
2
" diameter vacuum hose to
the intake barrel using one of the 1
3
⁄
4
" hose clamps,
as shown in
Figure 15.

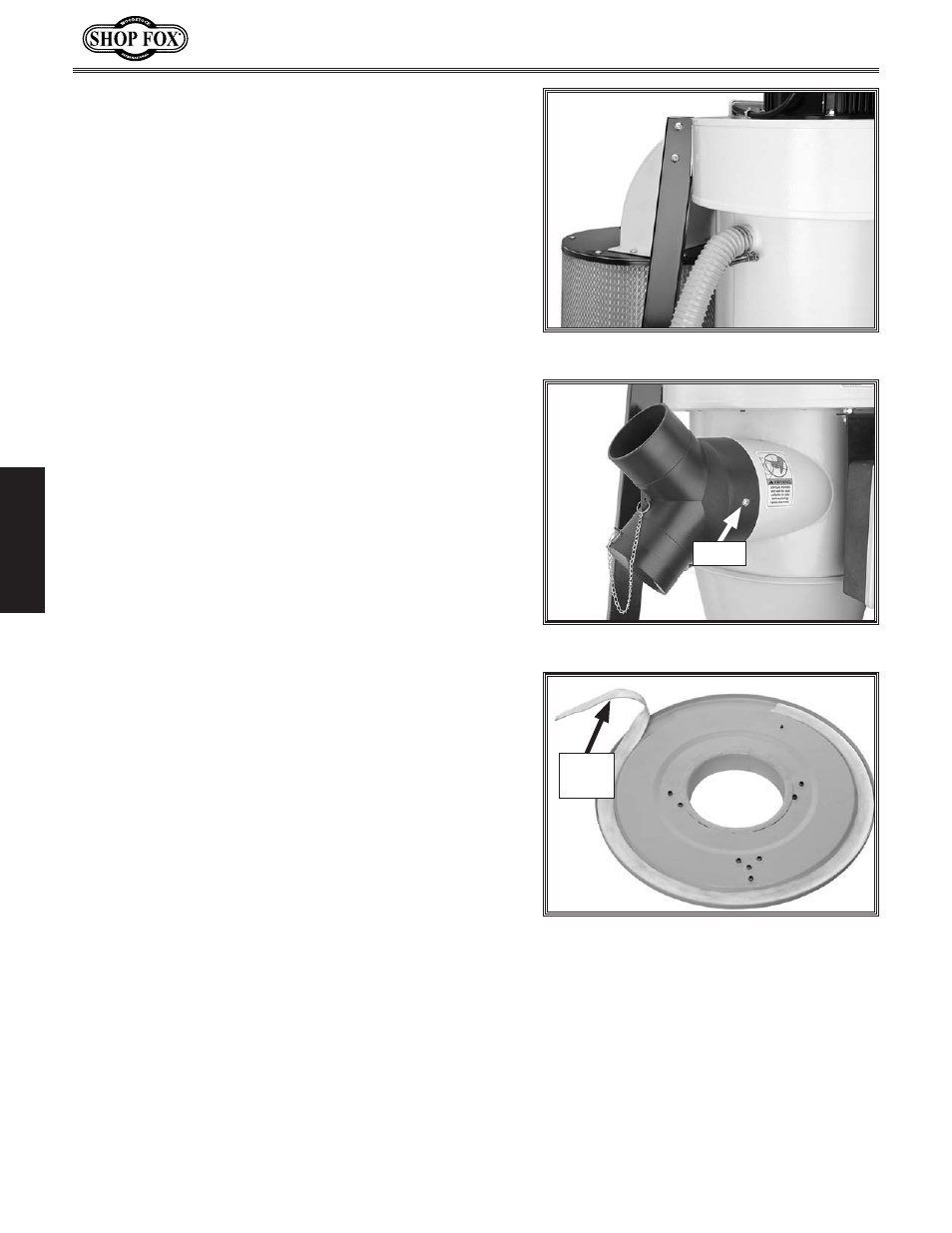

Figure 15. Vacuum tube installed.
Figure 16. Inlet Y-adapter installed.
Screw
Figure 17. Collection drum cover seal and
lift cable clamping location.
14. Fasten the inlet Y-adapter to the intake barrel
suction port and secure in place with the
5
⁄
16
"-18 x
3
⁄
8
" Phillips head screw, as shown in
Figure 16.
15. Affix the 1" wide foam tape to the underside of the
drum lid, as shown in
Figure 17.
Foam
Tape
