5. PARALLEL INTERFACE
5-1. Interface Specifications
Interface:
Conforms with Centronics parallel interface standard
Data transfer speed:
1000 ~ 5000 CPS
Synchronization:
External strobe pulse
Handshaking:
Using ACK and BUSY
Logic level:
TTL-level compatible

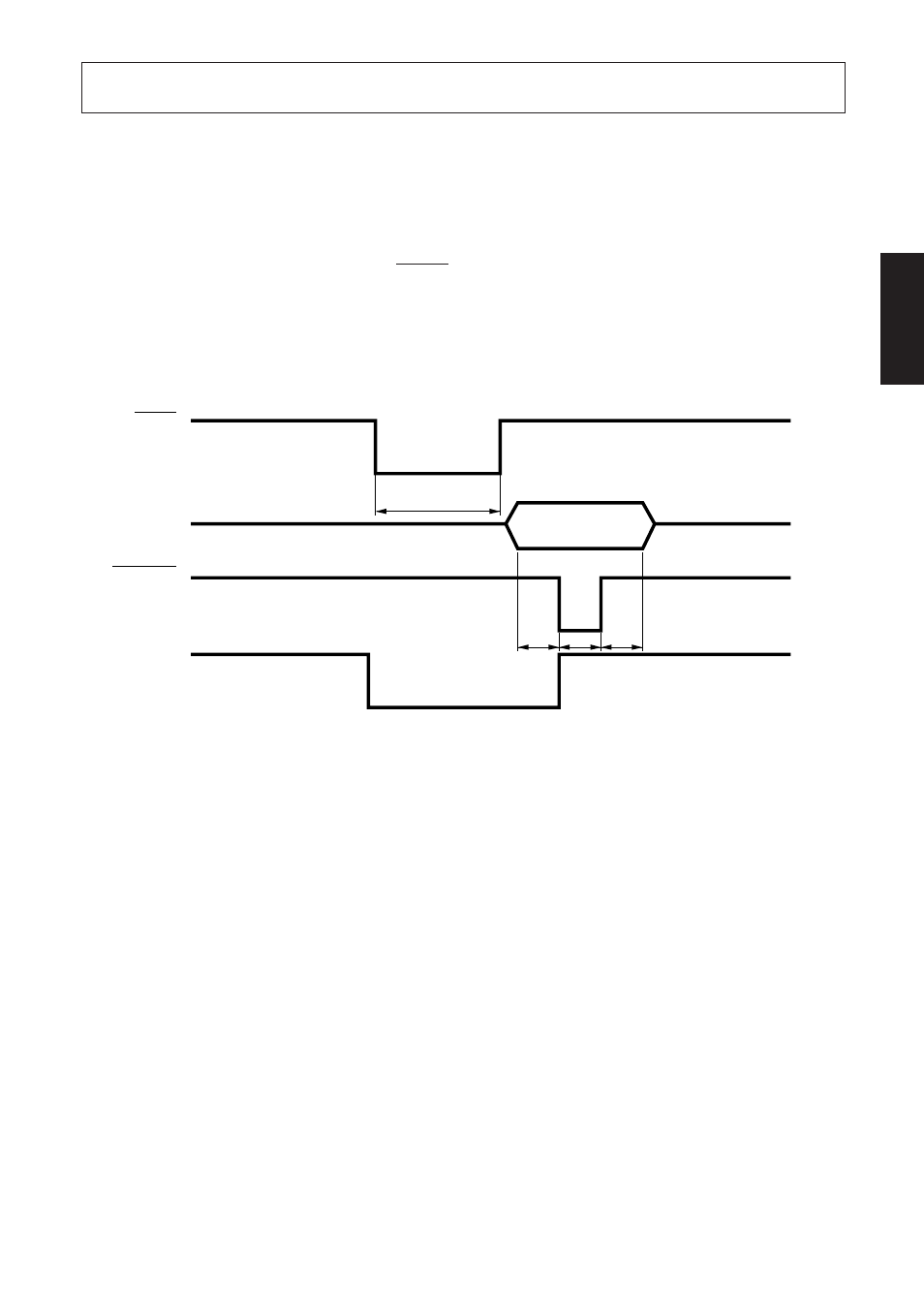

5-2. Interface Timing
T
T
T
A C K
DATA
STROBE
BUSY
T: At least 0.5ms
Approx. 9ms
PARALLEL
