ADDRESSING MODES S3C8275X/F8275X/C8278X/F8278X/C8274X/F8274X
3-4
INDIRECT REGISTER ADDRESSING MODE (Continued)
dst
OPCODE
PAIR
Points to
Register Pair
Example
Instruction
References
Program
Memory
Sample Instructions:
CALL @RR2
JP @RR2
Program Memory
Register File
Value used in
Instruction
OPERAND
REGISTER
Program Memory
16-Bit
Address
Points to
Program
Memory

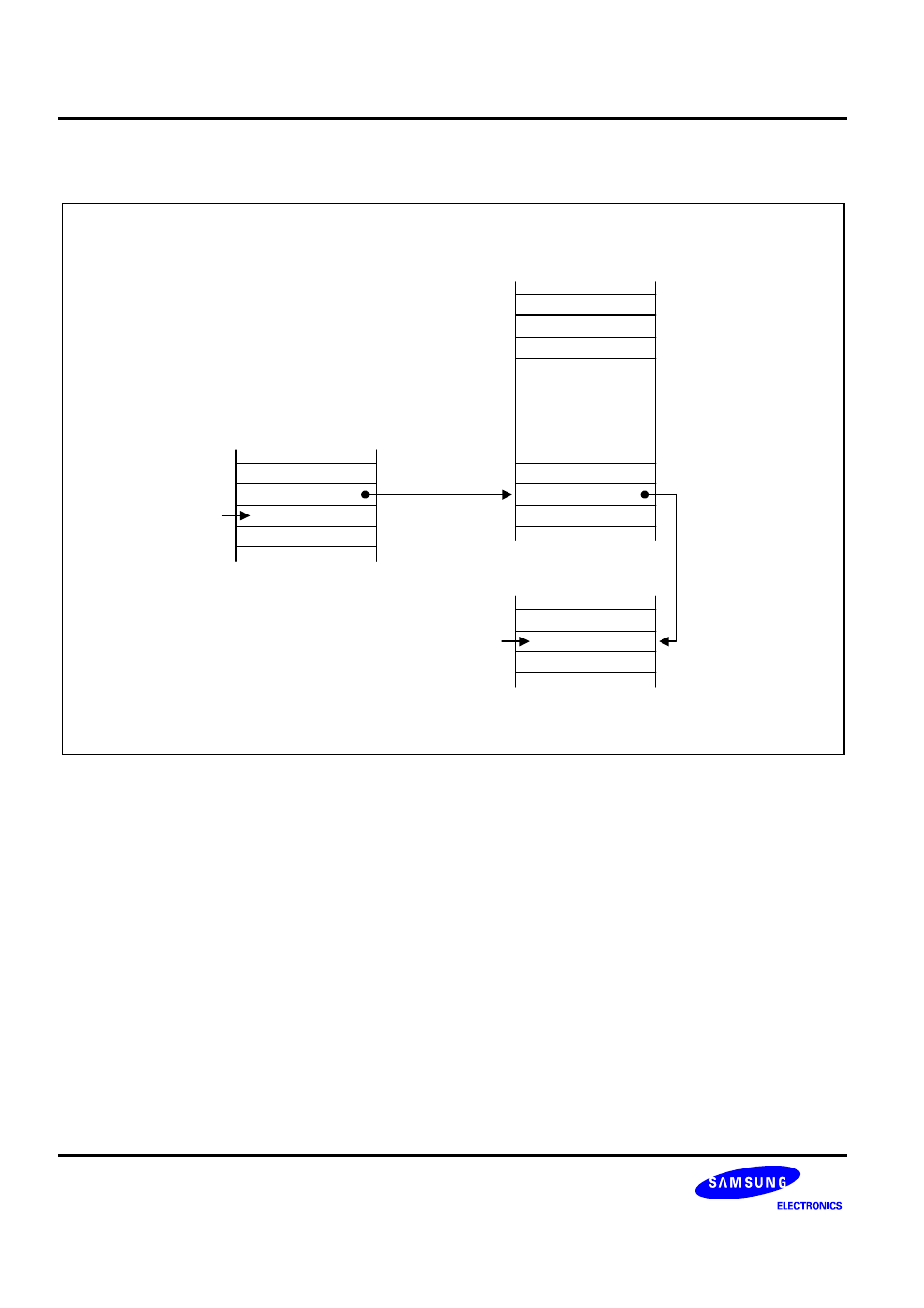

Figure 3-4. Indirect Register Addressing to Program Memory
