C
ONSOLE
P
ORT
P
IN
A
SSIGNMENTS
B-7
Console Port Pin Assignments
The console port on the switch’s front panel is used to connect to the
switch for out-of-band console configuration. The port uses conventional
RS-232 compatible signal levels through an RJ-45 connector on the switch
panel. The on-board configuration program can be accessed from a
terminal or a PC running a terminal emulation program.
The pin assignments for the RJ-45 console port, and RJ-45 to DB-9
console cable are provided in the following figures and tables.

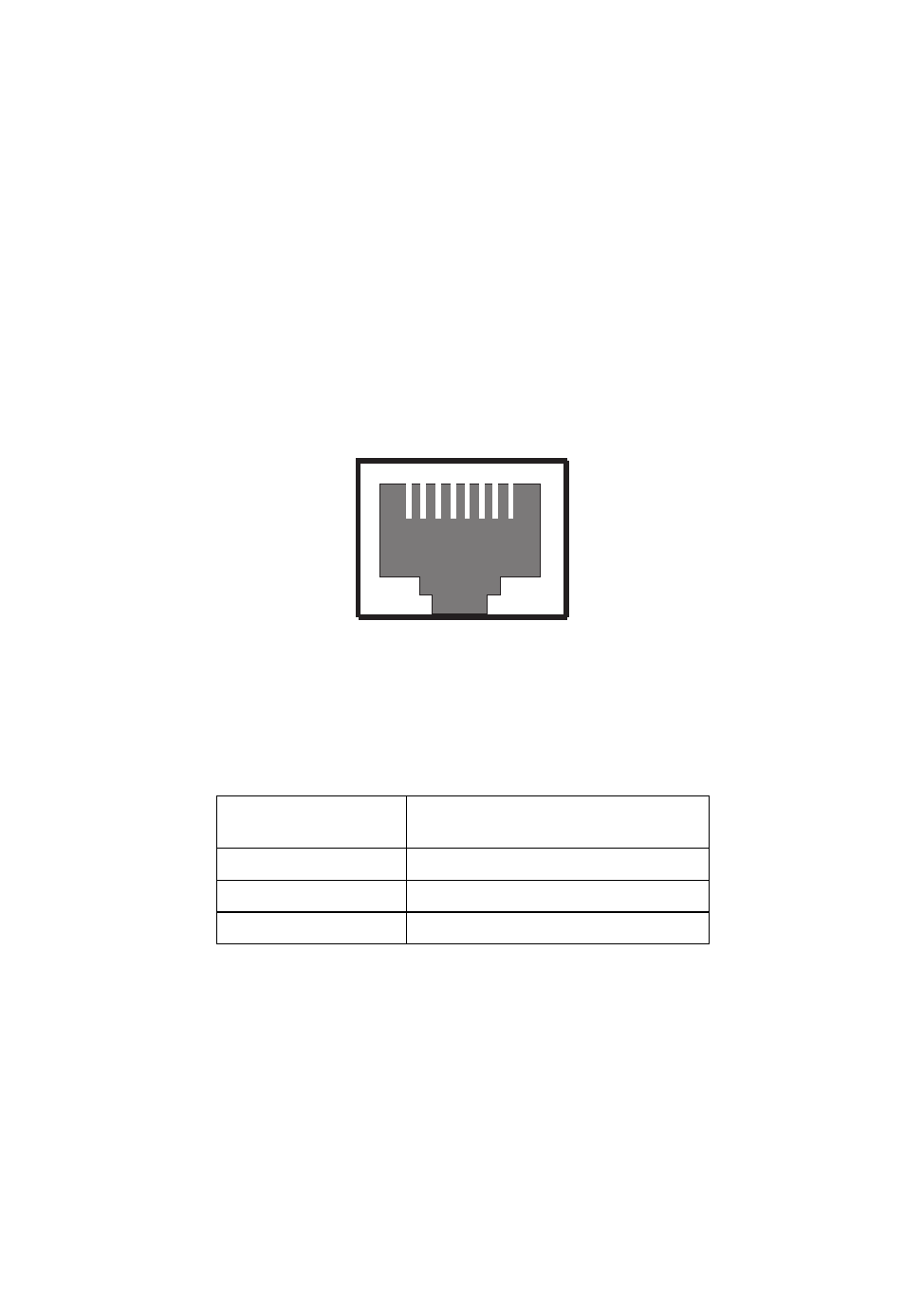

Figure B-4 RJ-45 Console Port Pin Numbers
RJ-45 Console Port Pin Assignments
Table B-3 RJ-45 Console Port Pin Assignments
Switch’s RJ-45
Console Port
Signal Assignment
3 Transmit Data (TXD)
4, 5 Signal Ground (GND)
6 Receive Data (RXD)
No other pins are used.
1 8
