1-1
C
HAPTER
1
A
BOUT THE
T
IGER
S
WITCH
10/100
Overview
SMC’s TigerSwitch
™
10/100 (SMC6716AL2) contains 16 10BASE-T /
100BASE-TX (RJ-45) ports plus two slots on the front panel for slide-in
modules (100BASE-FX, 1000BASE-T, or 1000BASE-X (GBIC)). There is
also an SNMP-based management agent embedded on the main board.
This agent supports both in-band and out-of-band access for managing
the switch.
This switch provides a broad range of powerful features for Layer 2
switching, delivering reliability and consistent performance for your
network traffic. It brings order to poorly performing networks by
segregating them into separate broadcast domains with IEEE 802.1Q
compliant VLANs, and empowers multimedia applications with multicast
switching and CoS services.

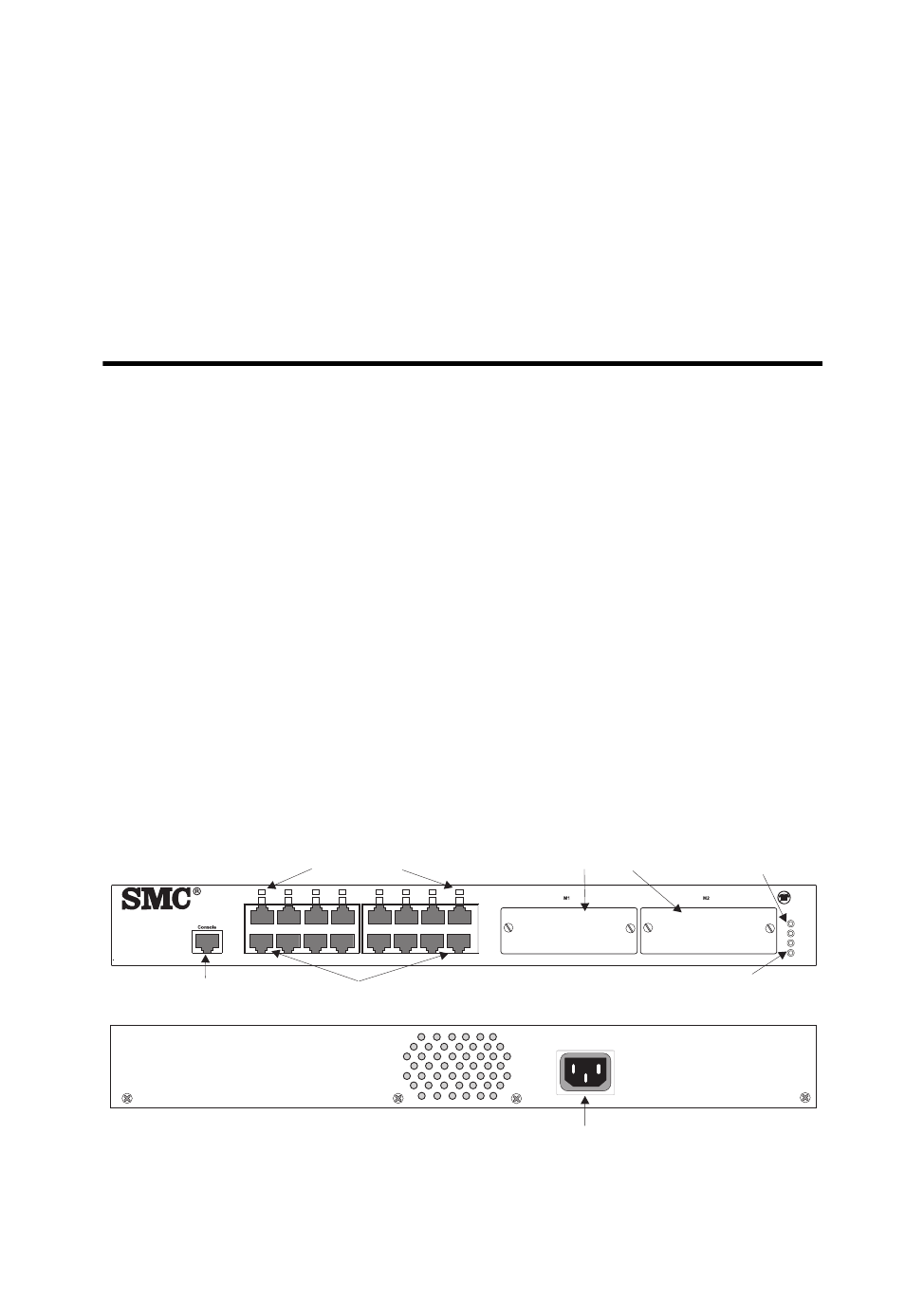

Figure 1-1 SMC6716AL2 Front and Rear Panels
100-240V~ 50-60Hz 0.8A
1
2 3
4 5
6
7
8 9
10
11
12 13
14 15
16
Media Expansion Slots System Indicators
10/100 Mbps RJ-45 Ports
Port Status Indicators (1-16)
Console Port Module Status Indicators (M1, M2)
Power Socket
PWR
Diag
M1
M2
TigerSwitch 10/100
6716AL2
TigerSwitch 10/100
6716AL2
