Making VLAN Connections
This switch supports VLANs which can be used to organize any group of
network nodes into separate broadcast domains. VLANs confine
broadcast traffic to the originating group, and can eliminate broadcast
storms in large networks. This provides a more secure and cleaner network
environment.
VLANs can be based on untagged port groups, or traffic can be explicitly
tagged to identify the VLAN group to which it belongs. Untagged VLANs
can be used for small networks attached to a single switch. However,
tagged VLANs should be used for larger networks, and all the VLANs
assigned to the inter-switch links.

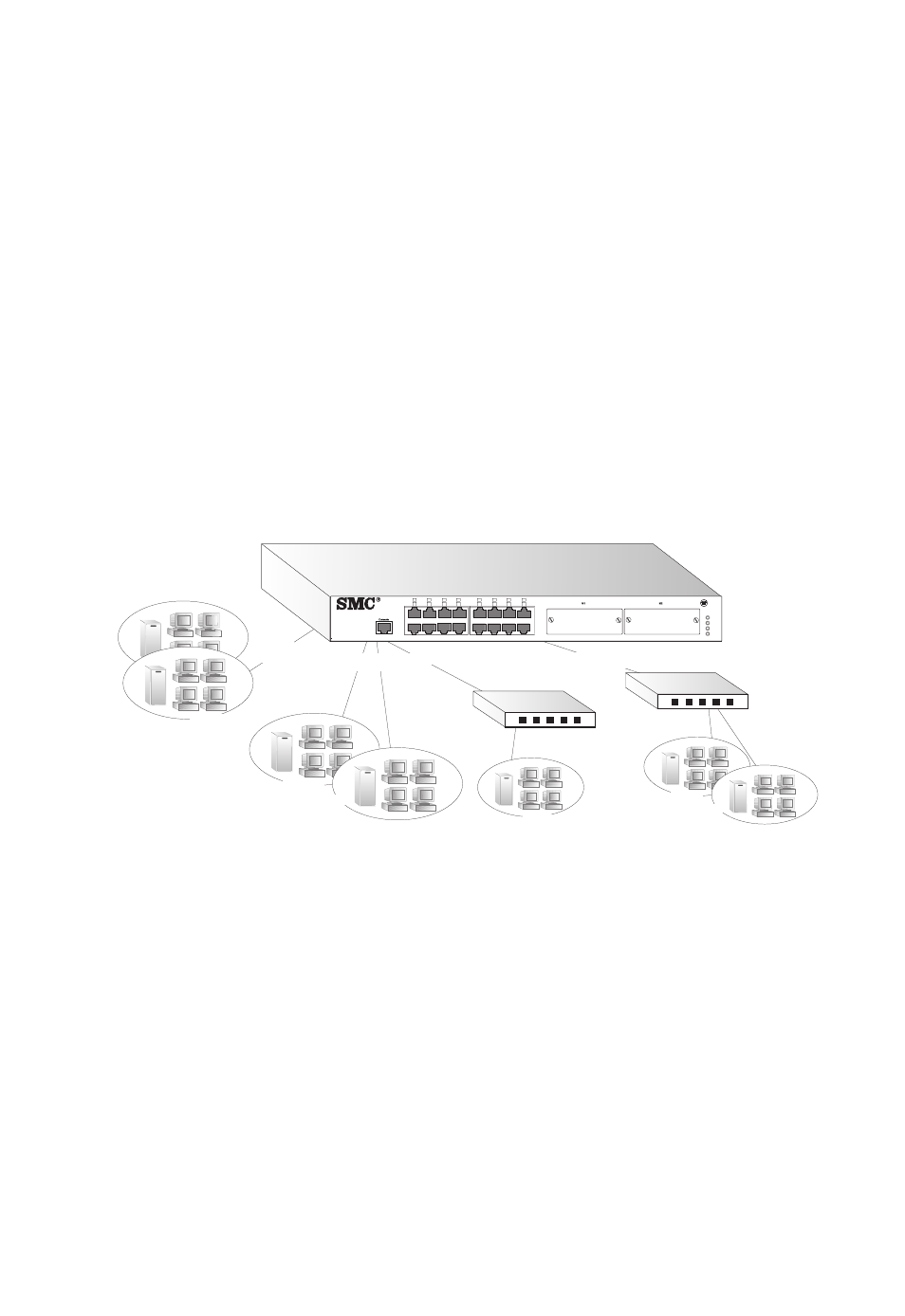

Figure 2-4 Making VLAN Connections
Finance
Marketing
VLAN 3
Untagged Ports
VLAN
unaware
switch
Tagged Port
VLAN
aware
switch
Tagged
Ports
Finance
VLAN 3
R&D
VLAN 2
Testing
R&D
Testing
VLAN 1
VLAN 2
VLAN 4
VLAN 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PWR
Diag
M1
M2
TigerSwitch 10/100
6716AL2
TigerSwitch 10/100
6716AL2
