A
BOUT THE
T
IGER
S
WITCH
10/100
1-4

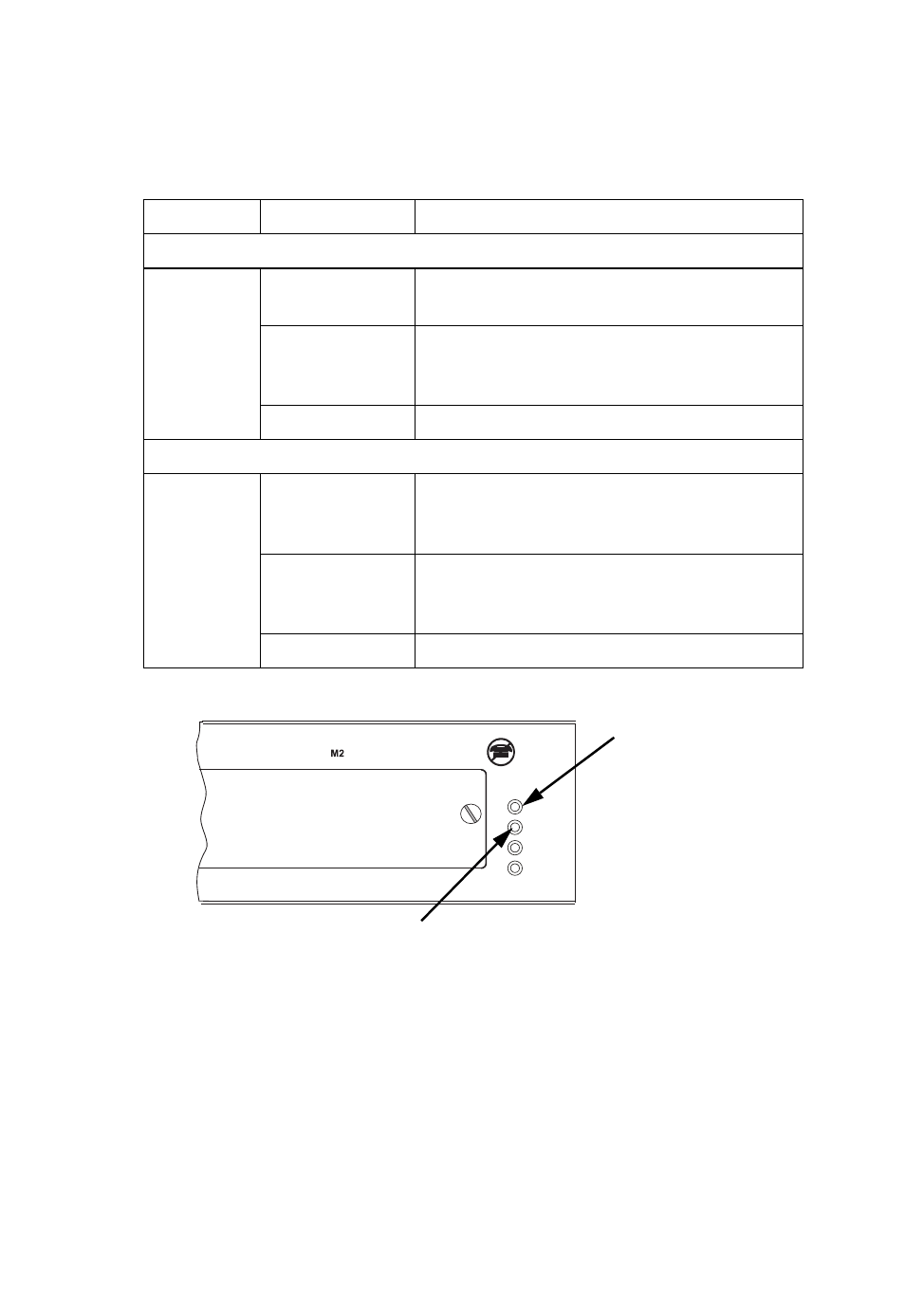

Figure 1-3 System LEDs
Table 1-1 Port Status LEDs
LED Condition Status
Base Unit Ports
1~16
(Link/Act)
On/
Flashing Amber
Port has established a valid network
connection. Flashing indicates activity.
On/
Flashing Green
Port has established a valid 100 Mbps
network connection. Flashing indicates
activity.
Off There is no valid link on the port.
Module Ports
M1, M2
On/
Flashing Amber
Port has established a valid 10/100 Mbps
network connection. Flashing indicates
activity.
On/
Flashing Green
Port has established a valid 1000 Mbps
network connection. Flashing indicates
activity.
Off There is no valid link on the port.
PWR
Diag
M1
M2
Diagnostic Test Indicator
Power Indicator
