I
NSTALLING THE
S
WITCH
3-6
Desktop or Shelf Mounting
1. Attach the four adhesive feet to the bottom of the first switch.

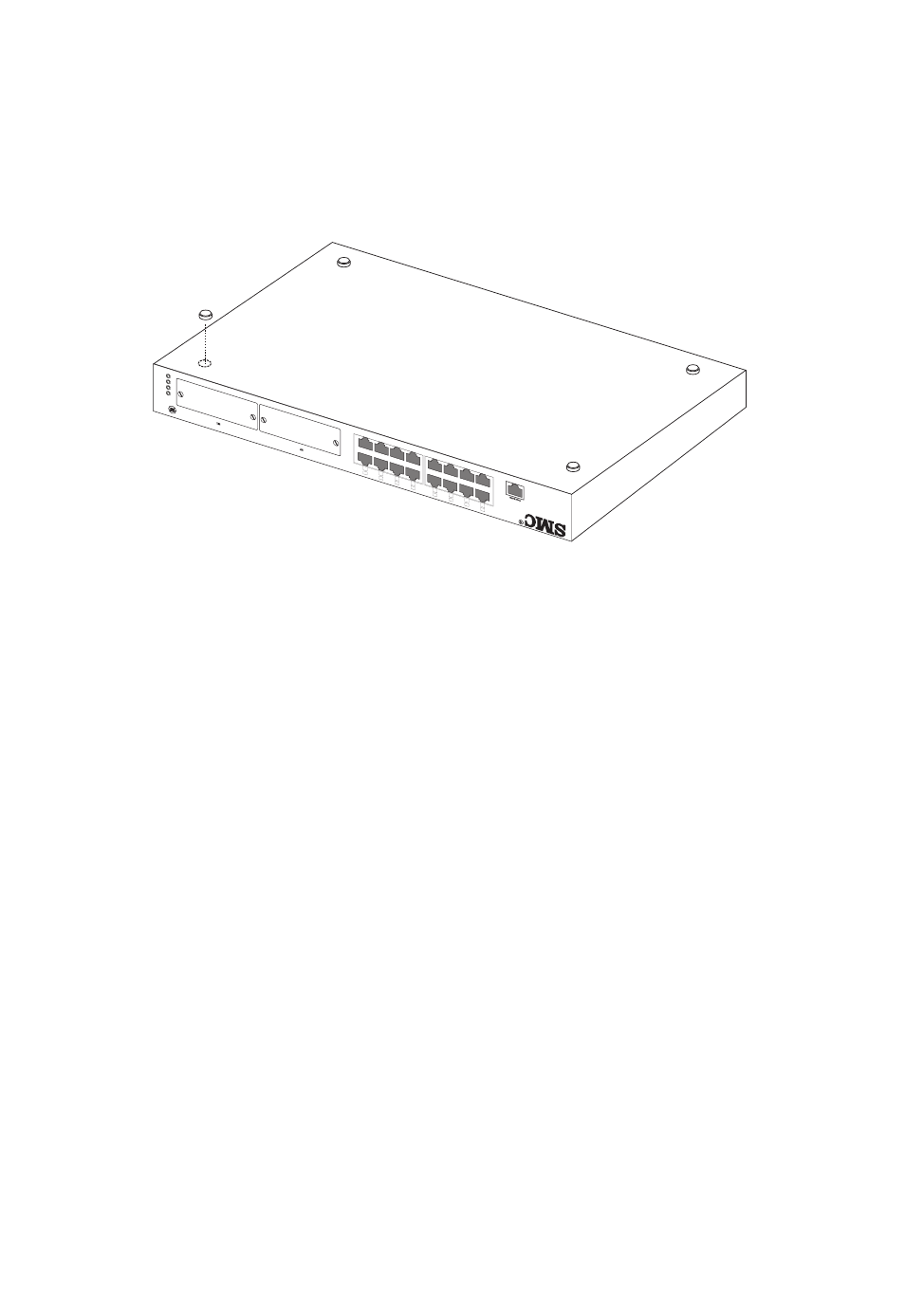

Figure 3-4 Attaching the Adhesive Feet
2. Set the device on a flat surface near an AC power source, making sure
there are at least two inches of space on all sides for proper air flow.
3. If installing a single switch only, go to “Connecting to a Power Source”
at the end of this chapter.
4. If installing multiple switches, attach four adhesive feet to each one.
Place each device squarely on top of the one below, in any order.
PWR
Diag
M1
M2
TigerSwitc
h1 0/100
6716AL2
TigerSwitc
h1 0/100
6716AL2 1 2 3
4 5
6 7
8
9 10 11
12 13
14 15 16
