No.51666
DLA-M4000LU DLA-M4000LE
54

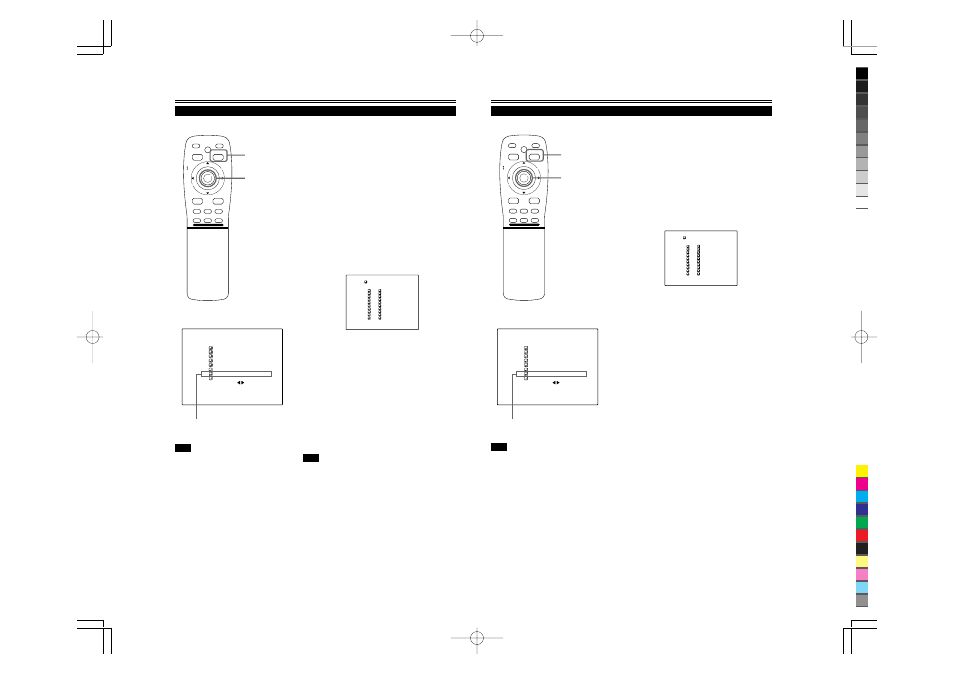

Setting Up (or Changing) User Sources
Operating the Main Menu (Cont.)
■ Remote control unit
■ Main menu
Note
• The selected item is shown in magenta color. Items shown
in gray color cannot be operated or set in the current mode.
MEN U/E N T E R
QUICK ALIGN. AV HIDE OPERATE
PRESET
AV
SHIFT ZOOM FOCUS
LENS
U T +
D W –
RGB/COMPUTER
LENS
LOCK
UNLOCK
PAGE BACK
A maximum of 10 types of information can individually be registered
regarding the source being input and projected through the line
connection.
■ Preparation
With source setup “AUTO” selected, keep signal being input.
1 Press the MENU/ENTER button.
• The main menu appears on the screen.
2 Press MENU/ENTER toward the 5 or ∞
mark to select a submenu item, “USER
SOURCE SETUP”.
• The selected item (text display) is shown in magenta color.
3 Press the MENU/ENTER button to set.
• A submenu item, “USER SOURCE SETUP menu” , appears on
the screen.
• “ 7 ” is displayed for Nos which have no user source registered.
PAGE BACK button
MENU/ENTER button
(USER SOURCE set up menu)
N T S C ( 4 8 0 i )
E N G L I S H
P I X E L C L O C K
P O S I T I O N
P I C T U R E
O P T I O N S
S O U R C E
C H A N N E L
U S E R S O U R C E S E T U P
D I S P L A Y S I Z E
D E C O D E R
L A N G U A G E
C O M P 1
A U T O
S X G A 1
4 Press MENU/ENTER toward the 5 or ∞
mark to select a “No” where no user
registration has been made.
• The selected item (text display) is shown in magenta color.
5 Press the MENU/ENTER button to set.
• The source data of the line now selected is registered as a user
source and a temporary user name is displayed.
• If you select and set on the No which has a source registered,
the source is overwritten by a new source.
■ To return to the main menu, press PAGE BACK. To finish
the main menu, press PAGE BACK again.
Note
• When EXT. IN (Video, Y/C or YP B P R ) is selected, the display size cannot be
changed.
U S E R 1
U S E R 2
777777777 777777777 777777777 777777777 777777777 777777777
H D 1 0 3 5 I _ R
H D 1 0 3 5 I _ Y
U S E R S O U R C E S E T U P
1
2
3
4
5
6
7
8
9
10
No U S E R N A M E
Submenu item [USER SOURCE SET UP]
55
Setting Up (or Changing) User Sources (Cont.)
Operating the Main Menu (Cont.)
■ Remote control unit
■ Main menu
Note
• The selected item is shown in magenta color. Items shown
in gray color cannot be operated or set in the current mode.
MEN U/E N T E R
QUICK ALIGN. AV HIDE OPERATE
PRESET
AV
SHIFT ZOOM FOCUS
LENS
U T +
D W –
RGB/COMPUTER
LENS
LOCK
UNLOCK
PAGE BACK
To change the registered user source name.
1 Press the MENU/ENTER button.
• The main menu appears on the screen.
2 Press MENU/ENTER toward the 5 or ∞
mark to select a submenu item, “USER
SOURCE SETUP”.
• The selected item (text display) is shown in magenta color.
3 Press the MENU/ENTER button to set.
• A submenu item, “USER SOURCE SETUP menu” , appears on
the screen.
PAGE BACK button
MENU/ENTER button
(USER SOURCE set up menu)
4 Press MENU/ENTER toward the 5 or ∞
mark to select the number, “No”, of the
user name to be changed.
• The selected item (text display) is shown in magenta color.
5 Press MENU/ENTER toward the 3 mark
to select the “USER NAME”.
• The selected item (text display) is shown in magenta color.
• To be able to select a “USER NAME”, a source needs to be
already registered.
Submenu item [USER SOURCE SET UP]
(To be continued on the next page)
N T S C ( 4 8 0 i )
E N G L I S H
P I X E L C L O C K
P O S I T I O N
P I C T U R E
O P T I O N S
S O U R C E
C H A N N E L
U S E R S O U R C E S E T U P
D I S P L A Y S I Z E
D E C O D E R
L A N G U A G E
C O M P 1
A U T O
S X G A 1
U S E R 1
U S E R 2
U S E R 3
U S E R 4
U S E R 5
U S E R 6
U S E R 7
U S E R 8
H D 1 0 3 5 I _ R
H D 1 0 3 5 I _ Y
U S E R S O U R C E S E T U P
1
2
3
4
5
6
7
8
9
10
No U S E R N A M E
