No.51666
DLA-M4000LU DLA-M4000LE
28

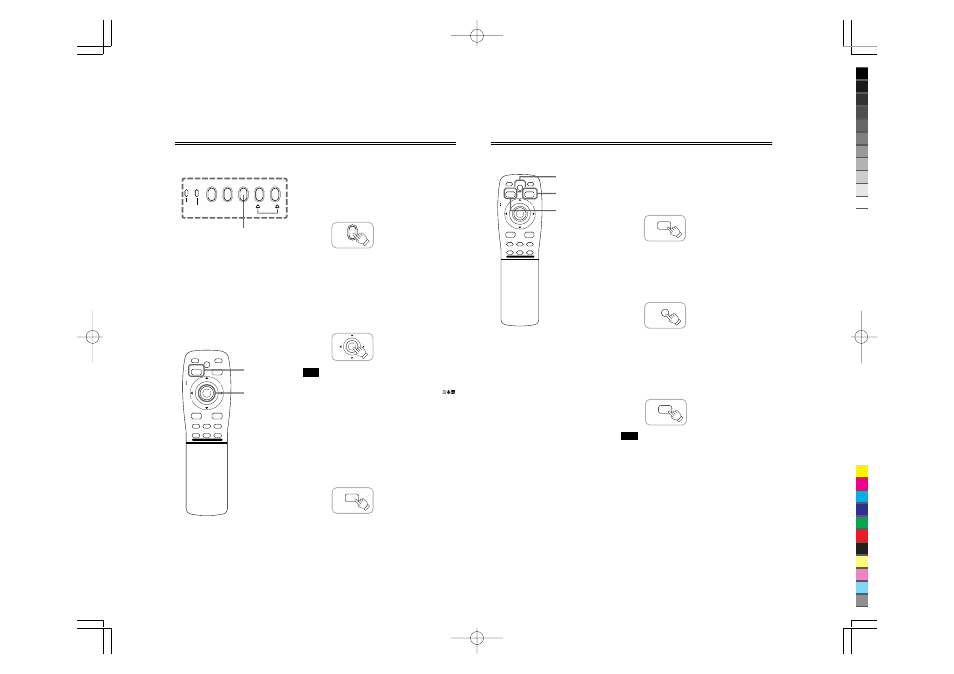

■ To display the MAIN menu
The main menu is used to adjust or set the projected video picture
and the projector’s condition, etc. (PIXEL CLOCK, POSITION,
PICTURE, OPTIONS, SOURCE DECODER and LANGUAGE). For
operating the main menu, refer to pages 33 to 58.
• Press the remote control’s MENU/ENTER button.
The main menu appears on the screen.
PRESET button
Basic Operations (Cont.)
Remote control unit
■ Remote control unit
■ Projector’s button
Remote control unit
MEN U/E N T E R
QUICK ALIGN. AV HIDE OPERATE
PRESET
AV
SHIFT ZOOM FOCUS
LENS
U T +
D W –
RGB/COMPUTER
LENS
LOCK
UNLOCK
PAGE BACK
SETTING
MEN U/E N T E R
PAGE BACK
EMERGENCY AV RGB SETTING QUICK
ALIGN.
TEMP
SETTING button
Remote control unit
MENU/ENTER button
■ To display the SETTING menu
The setting menu is used to make basic adjustments and settings
(TRACKING, PHASE, H. POS., V. POS., FOCUS and ZOOM) of
the video picture being projected after installation (connection) or
after inputs are switched. For operating the setting menu, refer to
“Making Basic Settings” on page 30.
• Press the projector’s SETTING button.
The setting menu is displayed on the screen.
Note
• To change the menu language displayed
English is set when the projector is shipped from the factory. The language
displayed can be selected from the following six languages:
(Japanese), ENGLISH, DEUTSCH (German), ESPAÑOL (Spanish),
ITALIANO (Italian), and FRANÇAIS (French). However, some words such
as “QUICK ALIGNMENT“ are displayed only in English. Pronouns such as
line display and source display are similarly treated.
■ To clear the main menu
Use the PAGE BACK button to clear the main menu.
For how to operate the PAGE BACK button, see pages 33 to 58.
• While the main menu is displayed, press PAGE BACK on
the remote control.
The main menu will disappear.
29
Basic Operations (Cont.)
Notes
• This button works only for numeric values. It does not work for switching
between ON and OFF.
• For items such as PIXEL CLOCK (TRACKING and PHASE), POSITION (H.
POS. and V. POS.), both settings are reset at the same time.
Remote control unit
Remote control unit
■ Remote control unit
PAGE BACK button
■ To use the remote control’s PRESET button
The PRESET button is used for adjustments made on the main
menu or setting menu.
• When resetting only the selected settings to the factory-set
values, press the remote control’s PRESET button.
Only the selected item’s setting is reset to the factory-set value.
PAGE BACK
AV HIDE
PRESET
AV HIDE button
PRESET button Remote control unit
■ To temporarily erase video image
Press the AV HIDE button, and video image will temporarily
disappear from the screen. Pressing the button again will resume
the video image.
• Press AV HIDE on the remote control.
Video image temporarily disappears from the screen.
■ To display “CHANNEL” on the screen
While no menu is displayed, pressing the PAGE BACK button
causes the channel now being used to appear.
You can also switch channels. For details, refer to “Switching
Channels with a Direct Channel” on page 52.
• While no menu is displayed, press PAGE BACK on the remote
control.
The channel appears on the screen.
MEN U/E N T E R
QUICK ALIGN. AV HIDE OPERATE
PRESET
AV
SHIFT ZOOM FOCUS
LENS
U T +
D W –
RGB/COMPUTER
LENS
LOCK
UNLOCK
PAGE BACK
