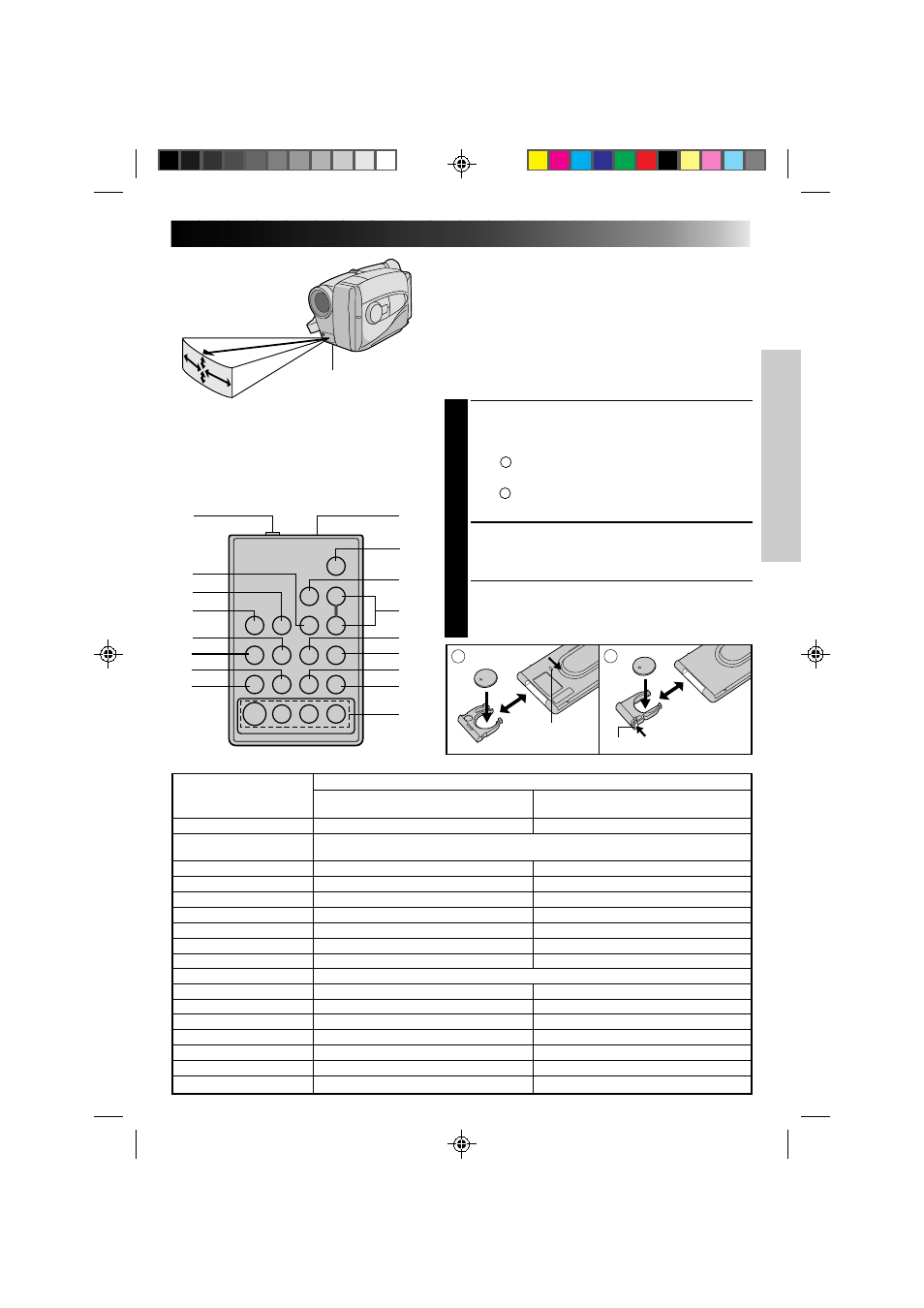

Remote Control Unit
The RM-V704U Full-Function Remote Control Unit can
operate this camcorder from a distance as well as the
basic operations (PLAY, STOP, PAUSE, FF, and REW) of
your VCR. This remote control unit makes additional
recording functions possible. To operate, point it at the
camcorder’s remote sensor. The RM-V704U is provided
with GR-AX460, and is available optionally for
GR-AX260.
PULL OUT BATTERY HOLDER
1 Pull out the battery holder according to the type of
remote control unit you have.
Type
A : Pull out the battrery holder while sliding
the lock hole.
Type B : Pinch the release tab and pull out the
battery holder.
INSERT BATTERY
2 Insert the lithium battery* (CR2025), with its plus (+)
side up, into the battery holder.
REPLACE BATTERY HOLDER
3 Replace the battery holder until it clicks in place.
*Read warning on lithium battery. (
੬
pg. 2)
Infrared beam
effective area
Infrared beam
sensor window
The transmitted beam may not be effective or
may cause misoperations when the infrared
beam sensor window is directly exposed to
sunlight or powerful lighting.
Functions
Buttons With the camcorder’s power switch set to With the camcorder’s power switch set to
“CAMERA”. “PLAY”.
1 PAUSE IN connector —
੬
pg. 34
2 Infrared beam Transmits the beam signal.
transmitting window
3 MBR SET button —
੬
pg. 33
4 INT. TIME button Self-Timer/Time lapse (
੬
pg. 26, 27) —
5 REC TIME button Animation/Time lapse (
੬
pg. 27) —
6 FF button Retake (Forward) (
੬
pg. 13) FF/FF Shuttle Search (
੬
pg. 31)
7 REW button Retake (Rewind) (
੬
pg. 13) Rew/Rew Shuttle Search (
੬
pg. 31)
8 PAUSE button — Pause (
੬
pg. 31)
9 PLAY button — Playback start (
੬
pg. 30)
0 START/STOP button Functions same as the Recording Start/Stop button of the camcorder.
! VISS button Index code marking (
੬
pg. 14) —
@ ZOOM (T/W) button Zoom (invariable speed (
੬
pg. 13) —
# VCR CTL button —
੬
pg. 33
$ A. DUB button — Audio dubbing (
੬
pg. 37)
% STOP button — Stop (
੬
pg. 30)
^ INSERT button — Insert Editing (
੬
pg. 36)
& R. A. EDIT button —
੬
pg. 34
Lock hole
Release tab
