GETTING STARTED (cont.)

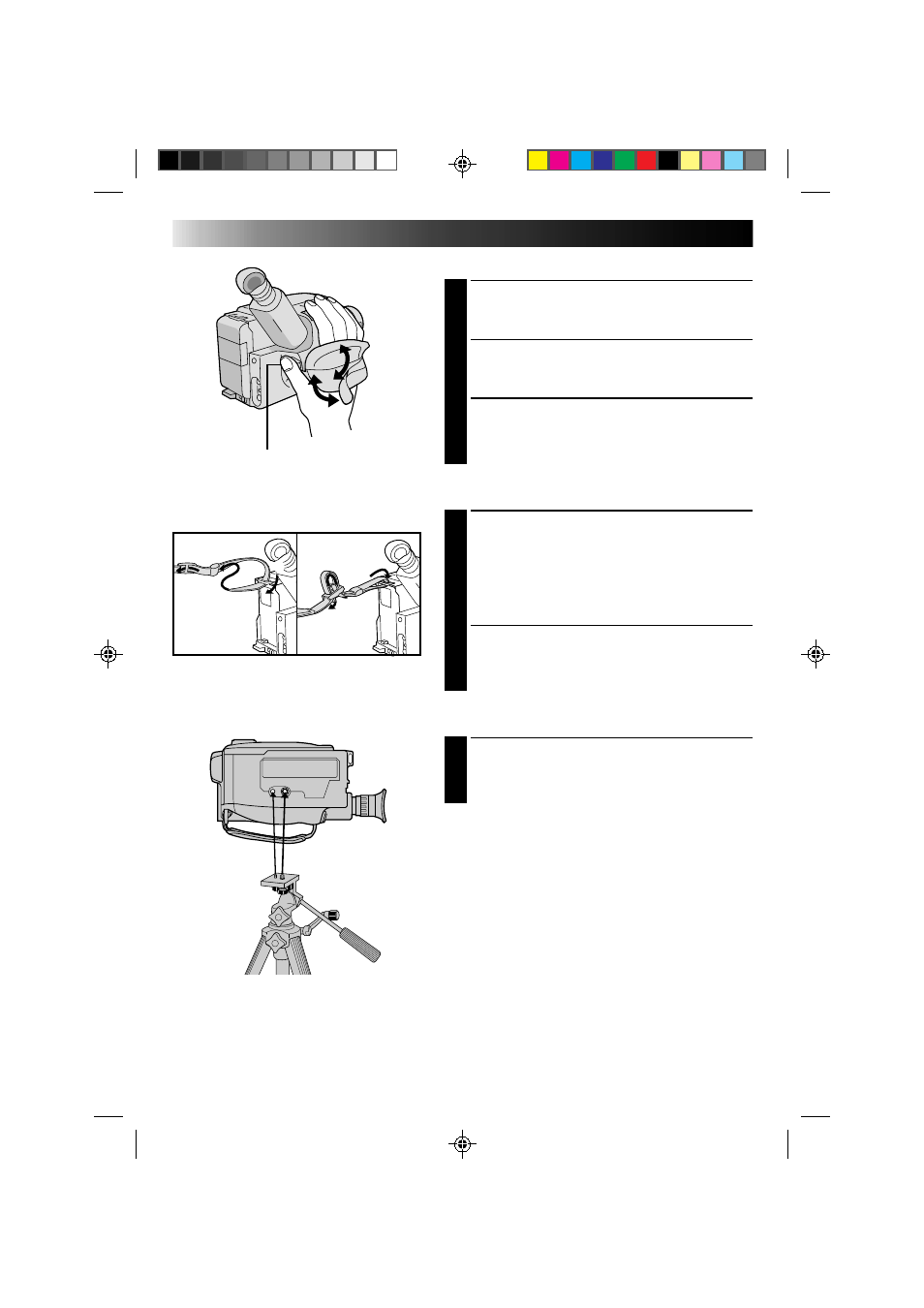

Grip Adjustment
EXPAND LOOP
1 Separate the Velcro strip.
INSERT HAND
2 Pass your right hand through the loop and grasp the
grip.
ADJUST STRAP LENGTH
3 Adjust so your thumb and fingers can easily operate
the Recording Start/Stop button and Power Zoom
switch. Refasten the Velcro strip.
Shoulder Strap Attachment
ATTACH STRAP
1 Following the illustration at left, thread the strap
through the top of the eyelet
1 , then fold it back
and thread it through the keeper 2 , and then
through the buckle 3 . Repeat the procedure to
attach the other end of the strap to the other eyelet,
making sure the strap isn’t twisted.
ADJUST LENGTH
2 Adjust as shown in the illustration at left 1 , then
slide both keepers snug against the eyelets to
prevent slipping
2 .
Tripod Mounting
ALIGN AND TIGHTEN
1 Align the screw and camera direction stud on the
tripod with the camera’s mounting socket and stud
hole. Then tighten the screw.
Recording Start/Stop button
