AD-081GE
50
10.5.2 Edge Pre-Select (EPS) trigger mode
An external trigger pulse initiates the capture, and the exposure time (accumulation time) is
the fixed shutter speed set by registers. The accumulation can be LVAL synchronous or LVAL
asynchronous. The resulting video signal will start to be read out after the selected shutter
time.
For timing details, refer to fig. 35 through fig. 44.
To use this mode:
Set function:
Trigger mode
Edge Pre-select (EPS)
Readout mode
Sync, async,
Output Select
8-bit, 10-bit, 12-bit
Scanning
Full/Partial
Vertical binning
ON/OFF
Shutter
Programmable, Exposure Time Abs
Programmable Shutter
0.5 to 792 L (1L unit)
Accumulation(Auto)
LVAL sync/LVAL async
Other functions
Input:
External Trigger
GigE I/F, Hirose 12-pin,Hirose 6-pin
Important Note:
1 The minimum duration of the trigger is 2L. The minimum period of trigger is as follows.
Sync mode:
Sync
Smearless OFF
FVAL(792L) + 3L + (Difference shutter time between
BW1 and BW2)
Smearless ON
Smearless Time(198L)+1+ ( longer exposure time
between BW1 and BW2) + FVAL(792L) + 3L
Sync mode:
Async
Smearless OFF
FVAL(792L) + 3L
Smearless ON
Smearless Time(198L)+1+FVAL(792L)+3L
FVAL(792L) is the FVAL period of continuous operation.
2 In case that “Readout mode” is set to “SYNC”, the trigger input for BW1 is used for both
channels. The exposure time can be set individually, but the output timing is
synchronized with the rising edge of the longest exposure time.

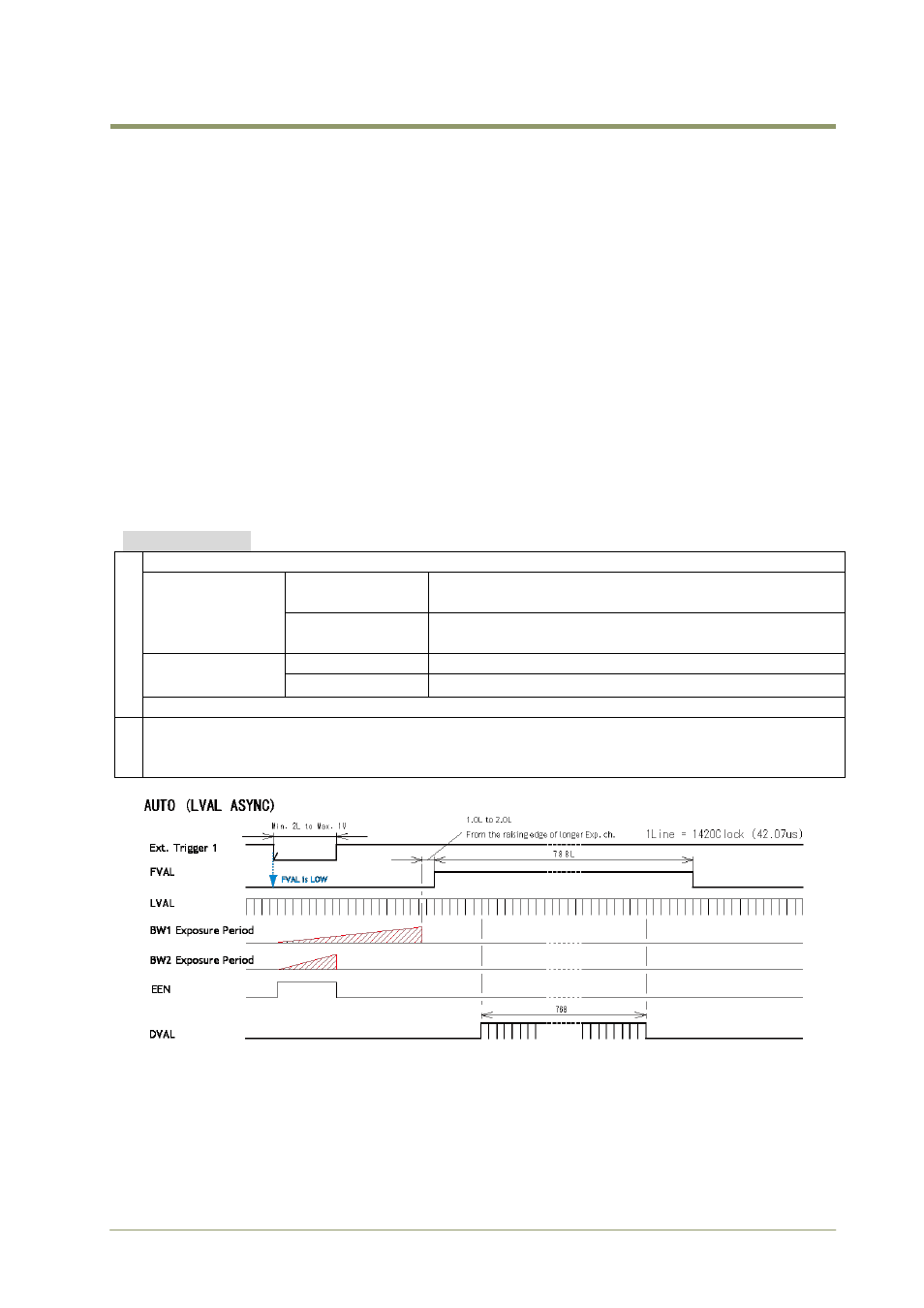

Fig.41 Edge Pre-select LVAL asynchronous
