AD-081GE
22
Analog Signal [mV]
Black Level
1023
890
32
0
25
700
D
ig
it
al
Ou
t
[L
SB
]
White Clip Level
100% Level
800
9. GigE Vision
®
Streaming Protocol (GVSP)
9.1. Digital Video Output (Bit Allocation)
Although the AD-081GE is a digital camera, the image is generated by an analog component,
the CCD sensor.

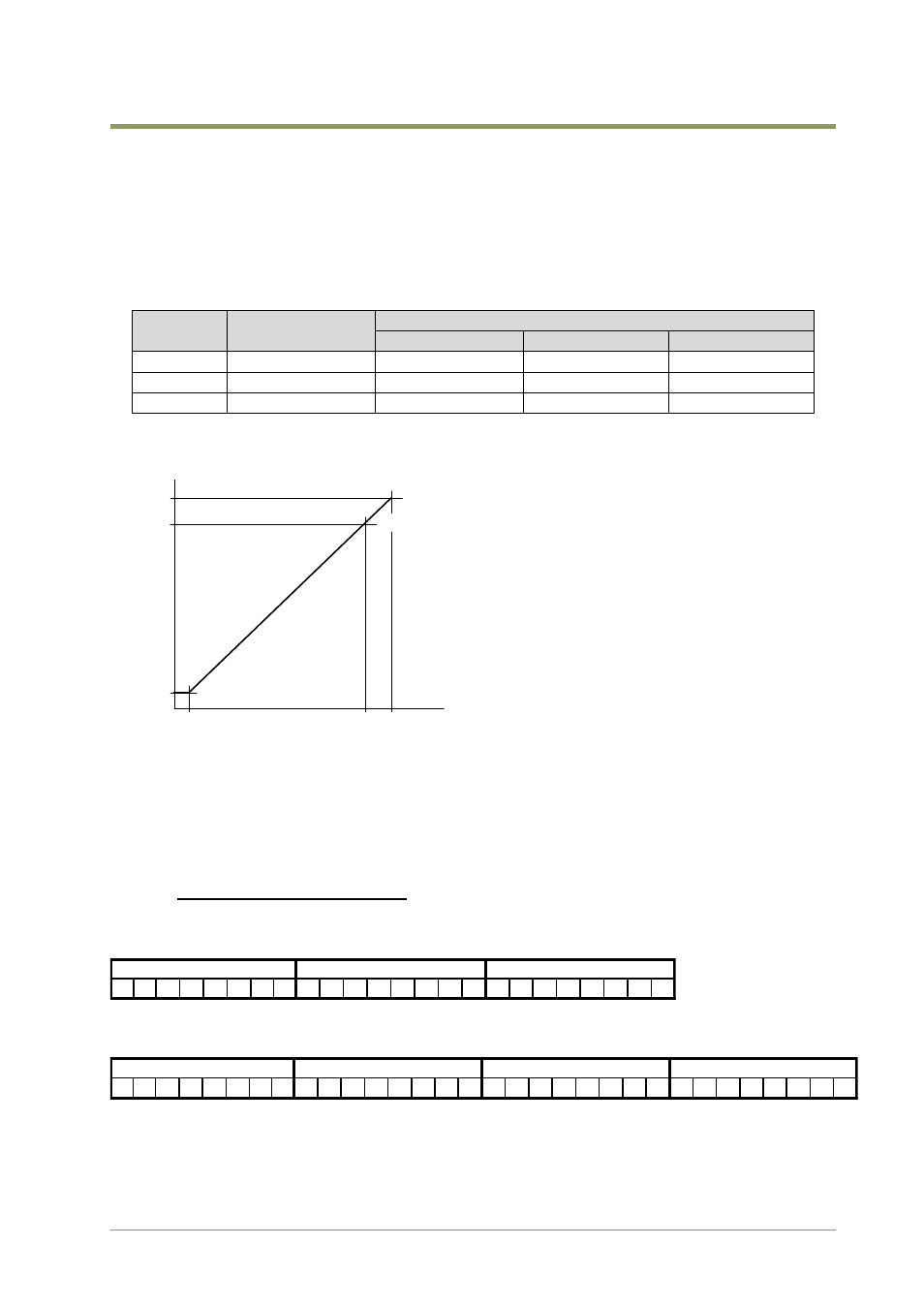

The table and diagram below show the relationship between the analog CCD output level and
the digital output.
CCD out
Analog Signal *
Digital Out
8 bit
10 bit
12 bit
Black
Setup 3.6%, 25mV
8 LSB
32 LSB
128 LSB
200mV
700mV
222 LSB
890 LSB
3560 LSB
230mV
800mV
255 LSB
1023 LSB
4095 LSB
The standard setting for 10-bit video level is 890 LSB. A 200 mV CCD output level equals 100%
video output.
Fig. 16 Digital Output (10 bit output)
9.2. Bit Allocation (Pixel Format / Pixel Type)
In the GigE Vision Interface, GVSP (GigE Vision Streaming Protocol) is used for an application
layer protocol relying on the UDP transport layer protocol. It allows an application to receive
image data, image information and other information from a device.
In the AD-081GE, the following pixel types supported by GVSP are available.
With regard to the details of GVSP, please refer to the GigE Vision Specification available from
the AIA
9.2.1 GVSP_PIX_MONO8 (8bit)
1 Byte 2 Byte
3 Byte
0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
Y0
Y1
Y2
9.2.2 GVSP_PIX_MONO10 (10bit)
1 Byte 2 Byte
3 Byte
4 Byte
0 1 2 3 4 5 6 7 8 9 X X X X X X 0 1 2 3 4 5 6 7 8 9 X X X X X X
Y0
Y0
Y1
Y1
