AD-081GE

15

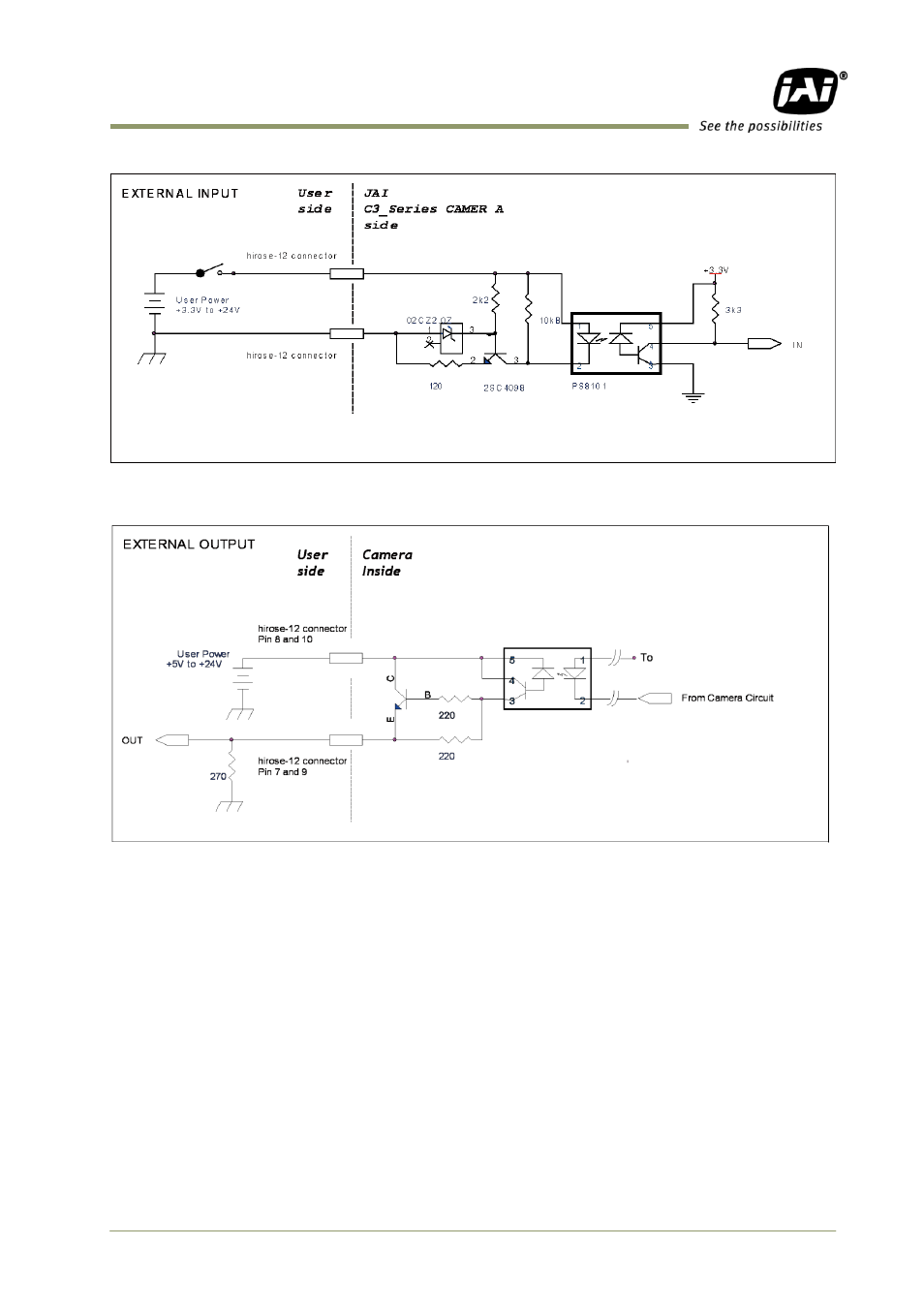

8.1.5 Recommended External Input circuit diagram for customer

Fig.11 External Input Circuit、OPT IN 1 and 2

8.1.6 Recommended External Output circuit diagram for customer

+3.3V

Fig.12 External Output Circuit, OPT OUT 1 and 2
