AD-081GE
16
8.1.7 Optical Interface Specifications
The relation of the input signal and the output signal through the optical interface is as follows.
Conditions for Input
Input Line Voltage Range
+3.3V ~ +24V
Input Current
6mA ~ 30mA
Minimum Input Pulse Width to Turn
ON
0.5μs
Output Specifications
Output Load(Maximum Current)
100mA
Minimum Output Pulse Width
20μs
Time Delay Rise TDR
0.5μs ~ 0.7μs
Rise Time RT
1.2μs ~ 3.0μs
Time Delay Fall TDF
1.5μs ~ 3.0μs
Fall Time FT
4.0μs ~ 7.0μs

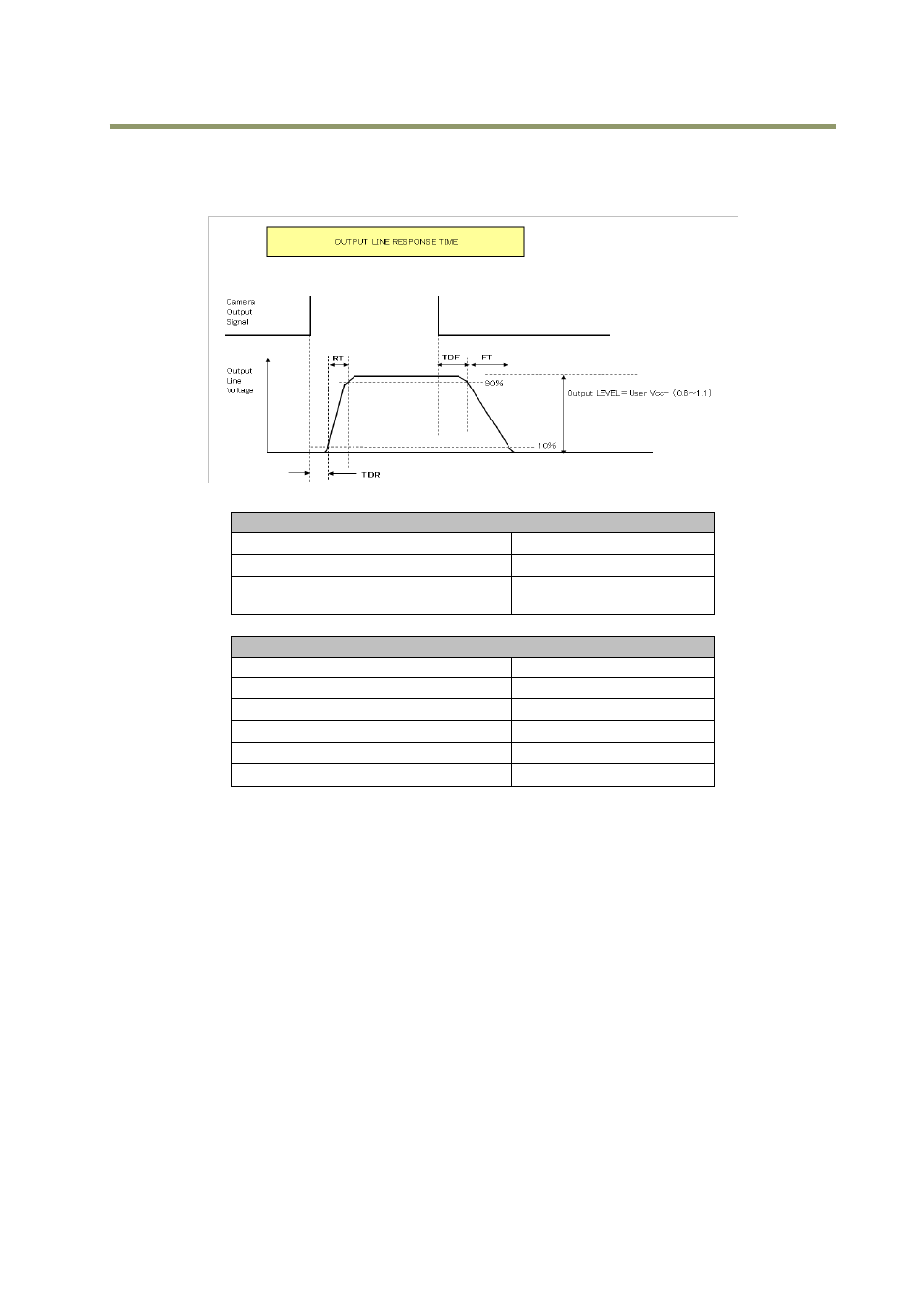

Fig.13 Optical Interface Performance
