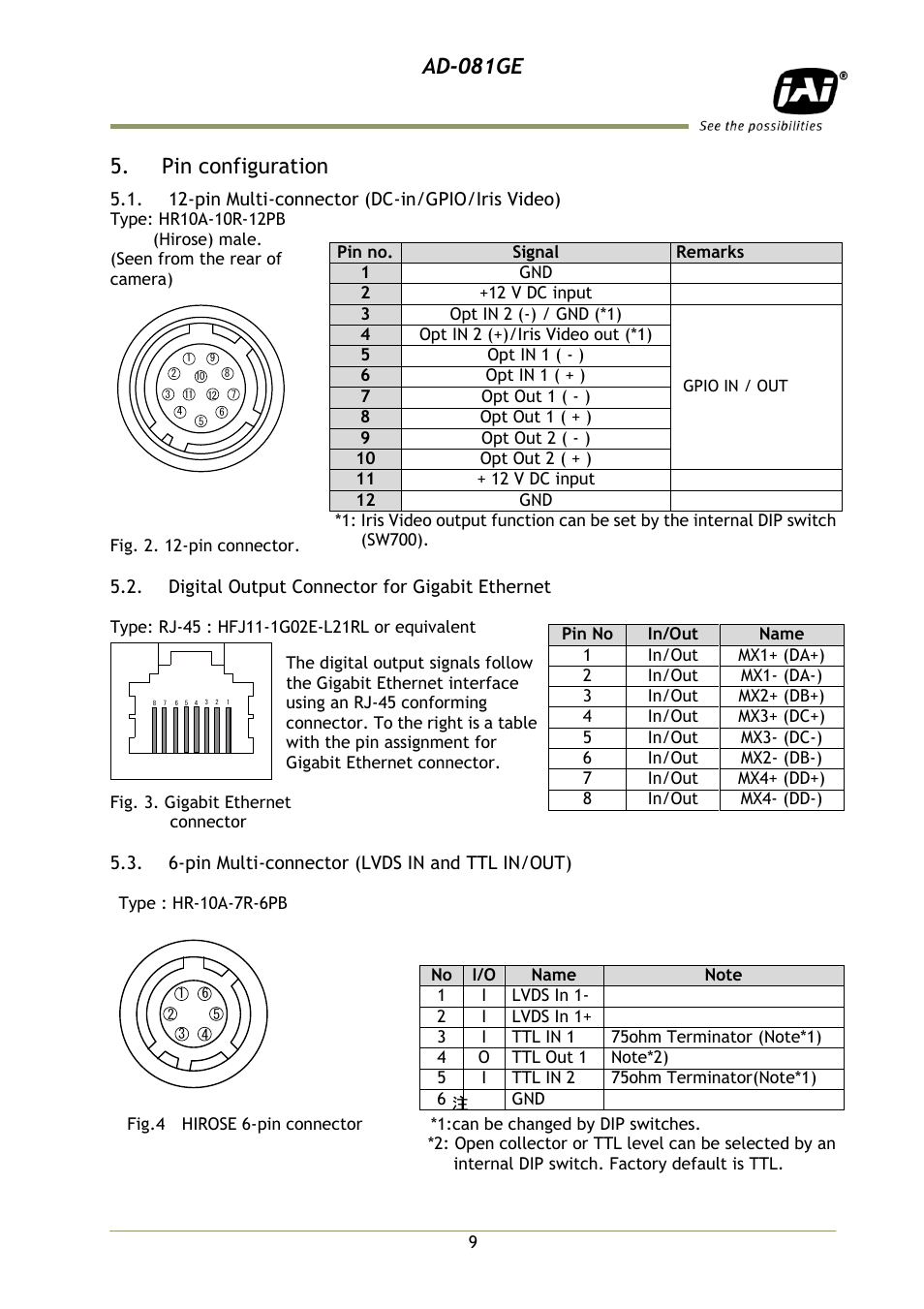

Pin configuration, 12-pin multi-connector (dc-in/gpi, Digital output connector for giga – JAI AD-081GE User Manual

Page 10: 6-pin multi-connector (lvds in an, Ad-081ge

Text mode
Original mode

Pin configuration, 12-pin multi-connector (dc-in/gpi, Digital output connector for giga | 6-pin multi-connector (lvds in an, Ad-081ge | JAI AD-081GE User Manual | Page 10 / 82
