On-screen display
D-VHS
D-VHS JVC VD400E
OFF
CC1
CC2
CC3
CC4
B E
D-VHS STD
12:59 AM
INDEX -9 I-1 HD
L R STEREO
NOTE:
The subtitles does not appear while the on-screen display is
displayed.

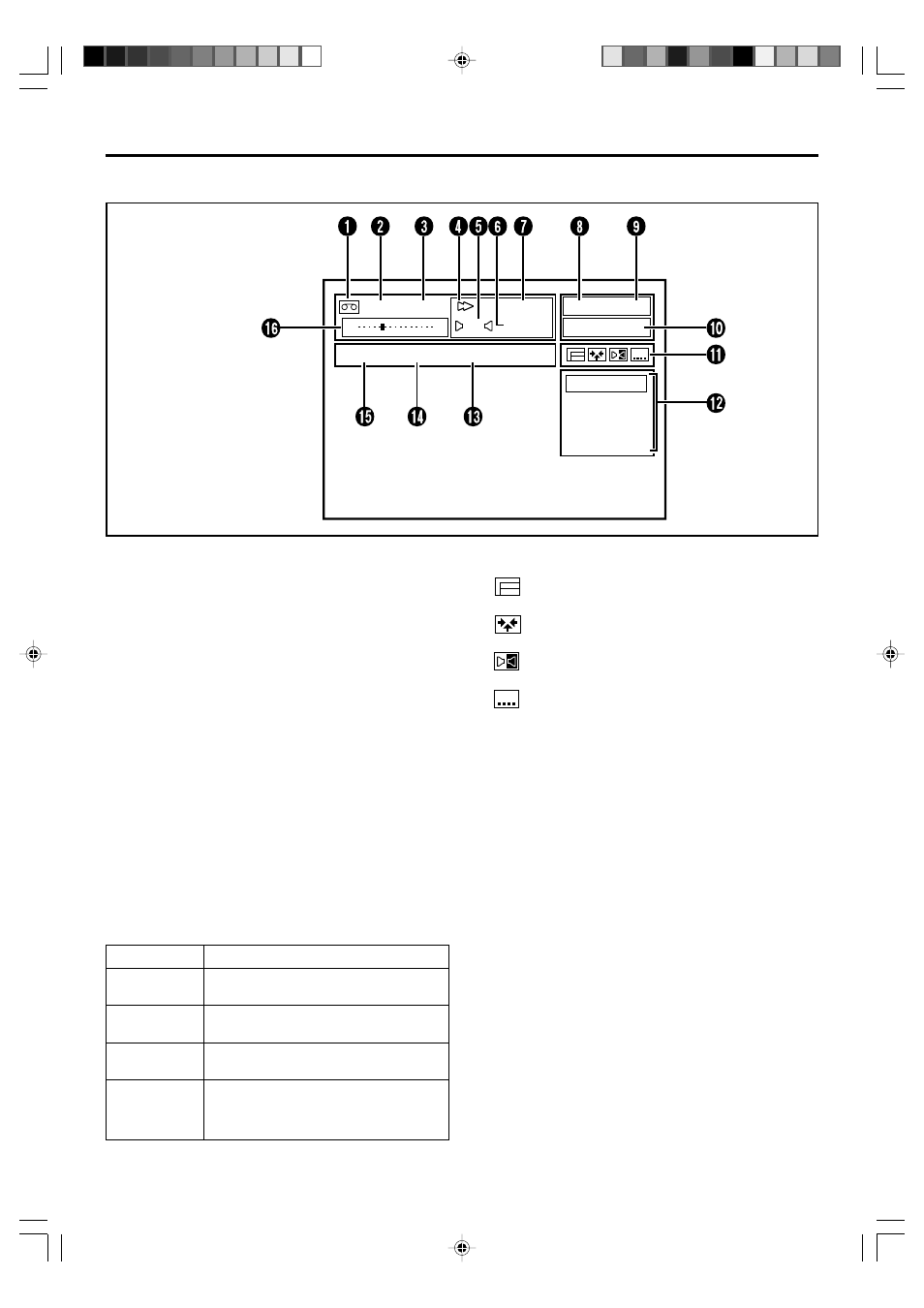

@ Selections of the selected icon (!)
# Model name of the device connected to the
i.LINK connector
$ Brand name of the device connected to the
i.LINK connector
% Type of device connected to the i.LINK connec-
tor
^ Tape position indicator : ੬ page 9
1 Cassette indication
2 Cassette type indication :
੬ page 18
3 Index no. indication : ੬ page 11
4 VCR operation mode indication
5 Audio monitor indications :
੬ page 10
6 Clock time
Time counter*
Tape remaining time (When “REMAIN”
appears)**
* To reset the time counter, press [C. RESET] on the
Remote. The counter reading becomes “0:00:00”. It is
also reset when a tape is inserted.
** The tape remaining time is calculated based on the
recording speed being used. The indicated remaining
time is only an estimate.
7 Recording mode indication : ੬ page 19, 21
Recording speed indication
8 Image format (“HD”/“SD”)
9 Auxiliary input (“L-1”, “L-2”, “F-1” and “I-1”
etc.)
0 Audio Indications
When receiving the stereo broadcast
When playing back and receiving a
Dolby Digital signals
When playing back and receiving a
audio signals in other new formats
When playing back and receiving a
PCM audio signals
Depends on the “DV AUDIO REC”
setting (
੬ page 37)
“STEREO”
“Dolby D”
“STREAM”
“PCM”
“AUDIO 1”
“AUDIO 2”
“1+2 MIX”
! Icons : ੬ page 12
: appears when a D-VHS cassette contains
the multiple programs
: appears when a D-VHS cassette contains
the multiple angle
: appears when a D-VHS cassette contains
the audio in multiple language
: appears when a D-VHS cassette contains
the subtitle in multiple language
