Chapter 2
36 KEMX-2030 User’s Manual
5V Board PCI Revision 2.1
Pin
Side B Side A Comments
50 KEYWAY KEYWAY 5V key
51 KEYWAY KEYWAY 5V key
52 AD[08] C/BE[0]_L
53 AD[07] +3.3V
54 +3.3V AD[06]
55 AD[05] AD[04]
56 AD[03] Ground
57 Ground AD[02]
58 AD[01] AD[00]
59 +5V +5V
60 ACK64_L REQ64_L
61 +5V
+5V
62 +5V +5V 32-bit end
PCI 60*2P 180D (F) [FOXCONN EH06001-DAW-DF]

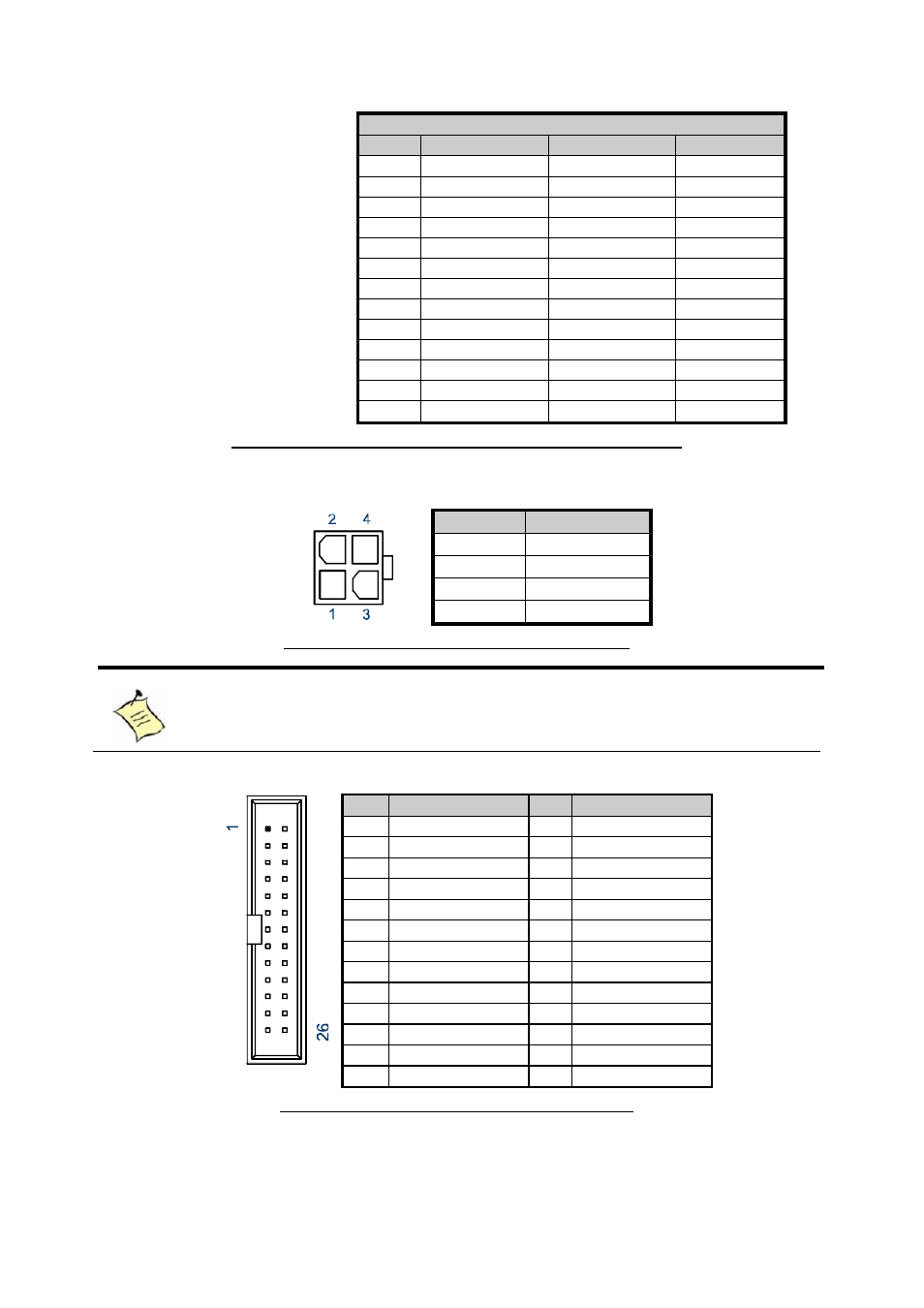

Table 37 ATX1, +12V Power Input Connector
Pin Signal Name
1 GND
2 GND
3 +12V
4 +12V
Pitch:4.2mm [YIMTEX 576MWA2*02STR]
NOTE
Do not use J1 & ATX1 connectors at the same time.
Table 38 Parallel Port Wafer
Pin Signal Name Pin Signal Name
1 STB 2 #AFD
3 PD0 4 #ERR
5 PD1 6 #INIT
7 PD2 8 #SLIN
9 PD3 10
GND
11 PD4 12 GND
13 PD5 14 GND
15 PD6 16 GND
17 PD7 18 GND
19 #ACK 20 GND
21 BUSY 22 GND
23 PE 24 GND
25 SLCT 26 GND
Pitch:2.54mm [YIMTEX 32526SAG1R(6T)]
