Chapter 2
26 KEMX-2030 User’s Manual

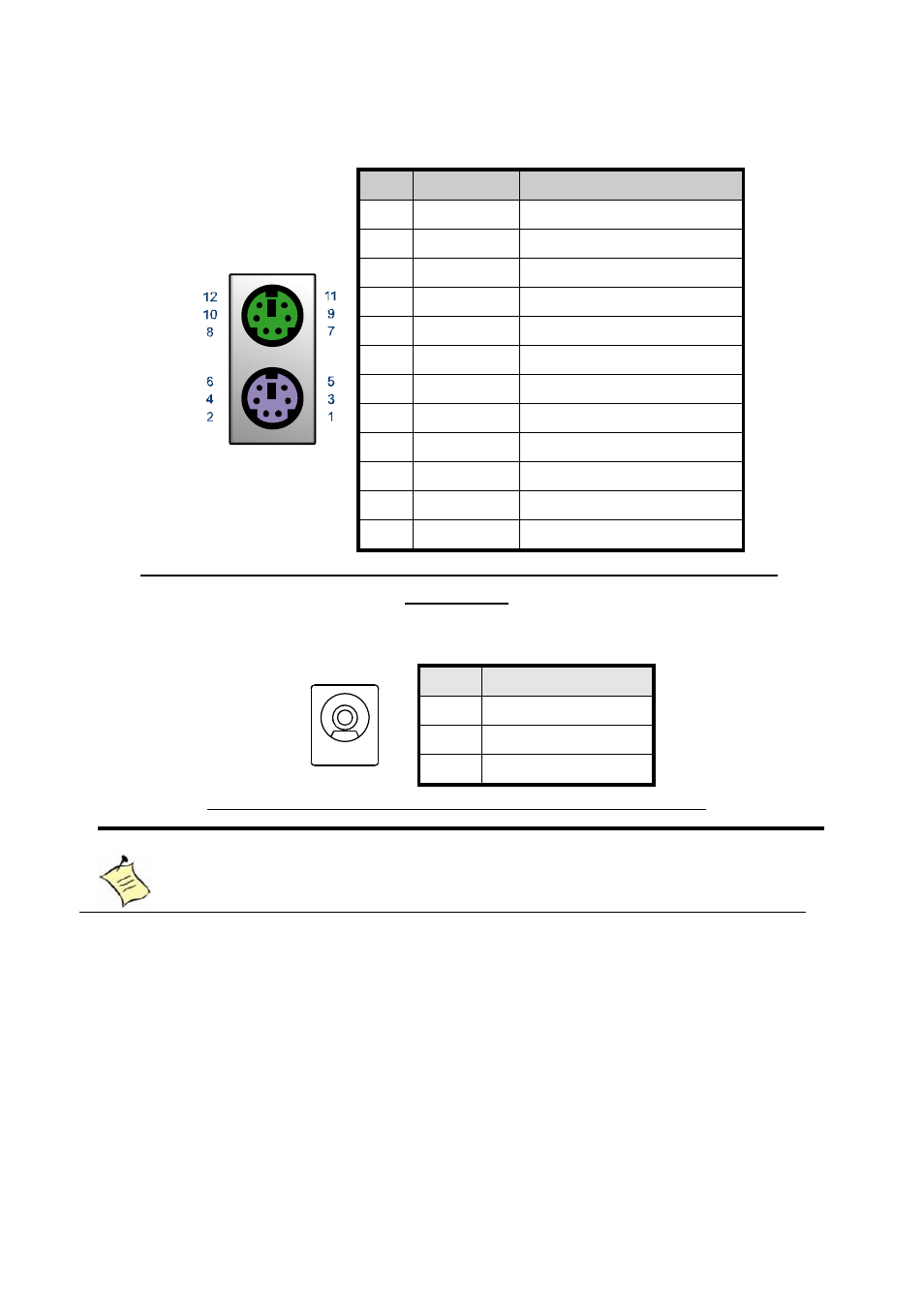

Table 15 CN 10, PS/2 KB/MS Connector
Pin Signal Function
1 KBDAT Keyboard Data
2 NC No Connect
3 GND Ground
4 KB5V +5VSB Power Source
5 KBCLK Keyboard Clock
6 NC No Connect
7 MSDAT Mouse Data
8 NC No Connect
9 GND Ground
10 KB5V +5VSB Power Source
11 MSCLK Mouse Clock
12 NC No Connect
MINI DIN DIP 6/6P MH11061-P36-4F 90D(F) Kb/Ms for PC99 CONNECTOR
[FOXCONN]
Table 16 J1, +12V Power Input Connector
Pin Signal
1 NC
2 +12V
3 GND
DC POWER DIP 3PIN φ 2.5mm 90° [KUON YI KD-014SA-L]
NOTE
Do not use J1 & ATX1 connectors at the same time.
