Chapter 2
29 KEMX-2030 User’s Manual

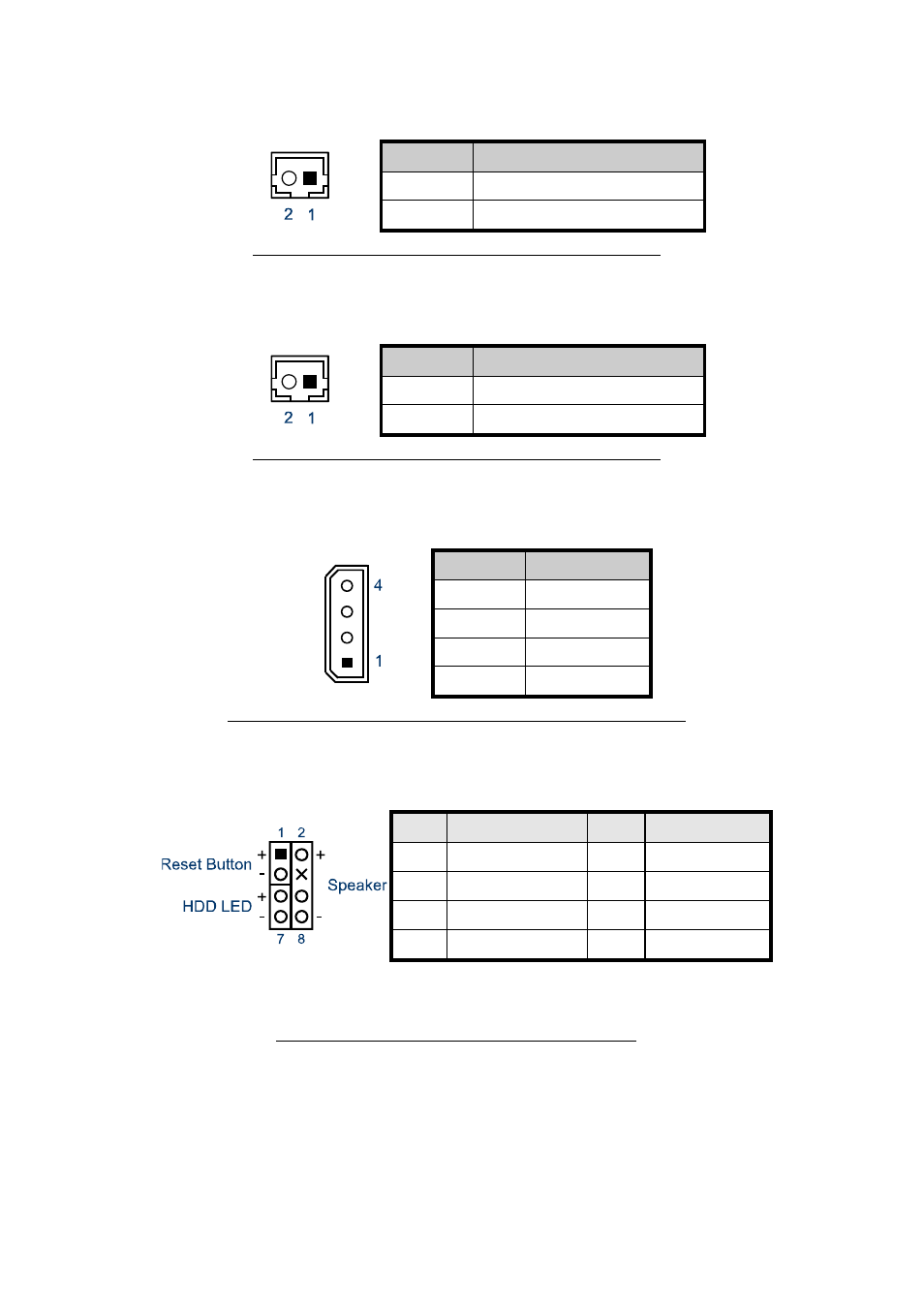

Table 23 CN7, Audio AMP Right Output Wafer
Pin Signal Name
1 Speaker+
2 Speaker-
Pitch=2.0mm WAFER [YIMTEX 503PW1*02STR]
Table 24 CN8, Audio AMP Left Output Wafer
Pin Signal Name
1 Speaker+
2 Speaker-
Pitch=2.0mm WAFER [YIMTEX 503PW1*02STR]
Table 25 CN11, AT Power Output Wafer
Pin Signal Name
1 +12V
2 GND
3 GND
4 +5V
Pitch: 5.08mm W/O LOCK [VENSIK 2470-F-04PST-PB]
Table 26 FP1, Front Panel 1 Pin Header
Pin Signal Pin Signal
1 Reset Button + 2 Speaker +
3 Reset Button - 4 NC
5 HDD LED + 6 NC
7 HDD LED - 8 Speaker -
Pins 2, 8: External Speaker wire
Pins 6-8 shorted: Internal Speaker Enable (default)
Pitch:2.54mm [YIMTEX 3322*04SAGR(6T)]
