Rear Panel Pin Assignments

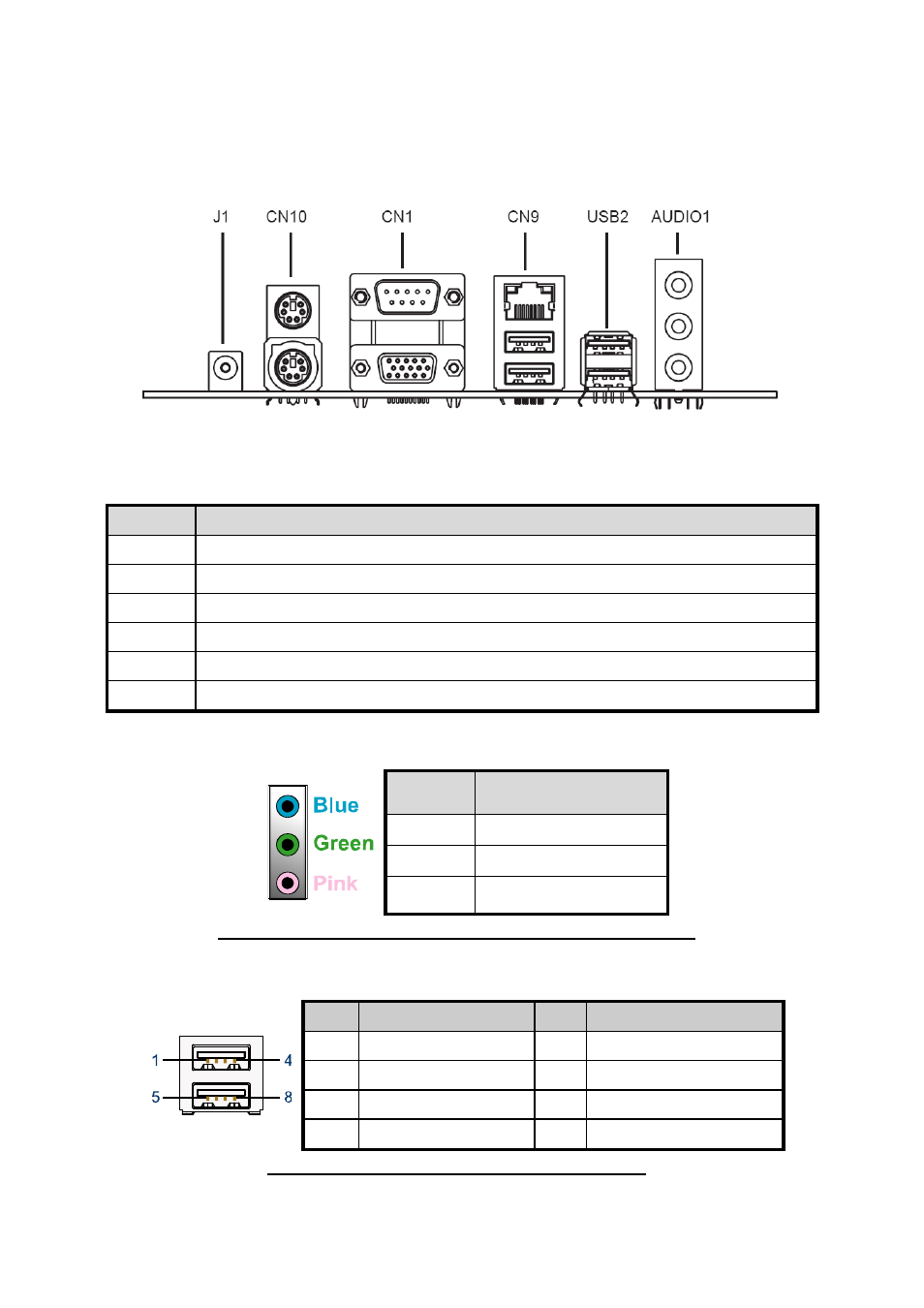

Figure 5 Rear Panel IO
Table 10 Rear Panel Connector List
Label Function
AUDIO1 3-Port Audio phone jack
USB2 USB2.0 Port 2 , 3 Type A Connector
CN9 USB2.0 Port 0, 1 Type A Connector & 10/100 Ethernet RJ-45 Connector
CN1 VGA Connector & RS-232(422/485) Port A DB-9 Connector
CN10 PS/2 KB/MS Connector
J1 +12V Power Input Connector
Table 11 AUDIO1 , 3-Port Audio phone jack
Signal Name
BLUE LINE IN
GREEN LINE OUT
PINK MIC IN
AUDIO JACK*3 DIP Vertical [Foxconn JA33331-H11P-4F]
Table 12 USB2, USB2.0 Port 2, 3 Type A Connector
Pin Signal Name Pin Signal Name
1 +5V 5 +5V
2 USB1- 6 USB0-
3 USB1+ 7 USB0+
4 GND 8 GND
USB DIP 4*2P 90D [KUON YI KS-002-ANB-L]
