Chapter 2
31 KEMX-2030 User’s Manual

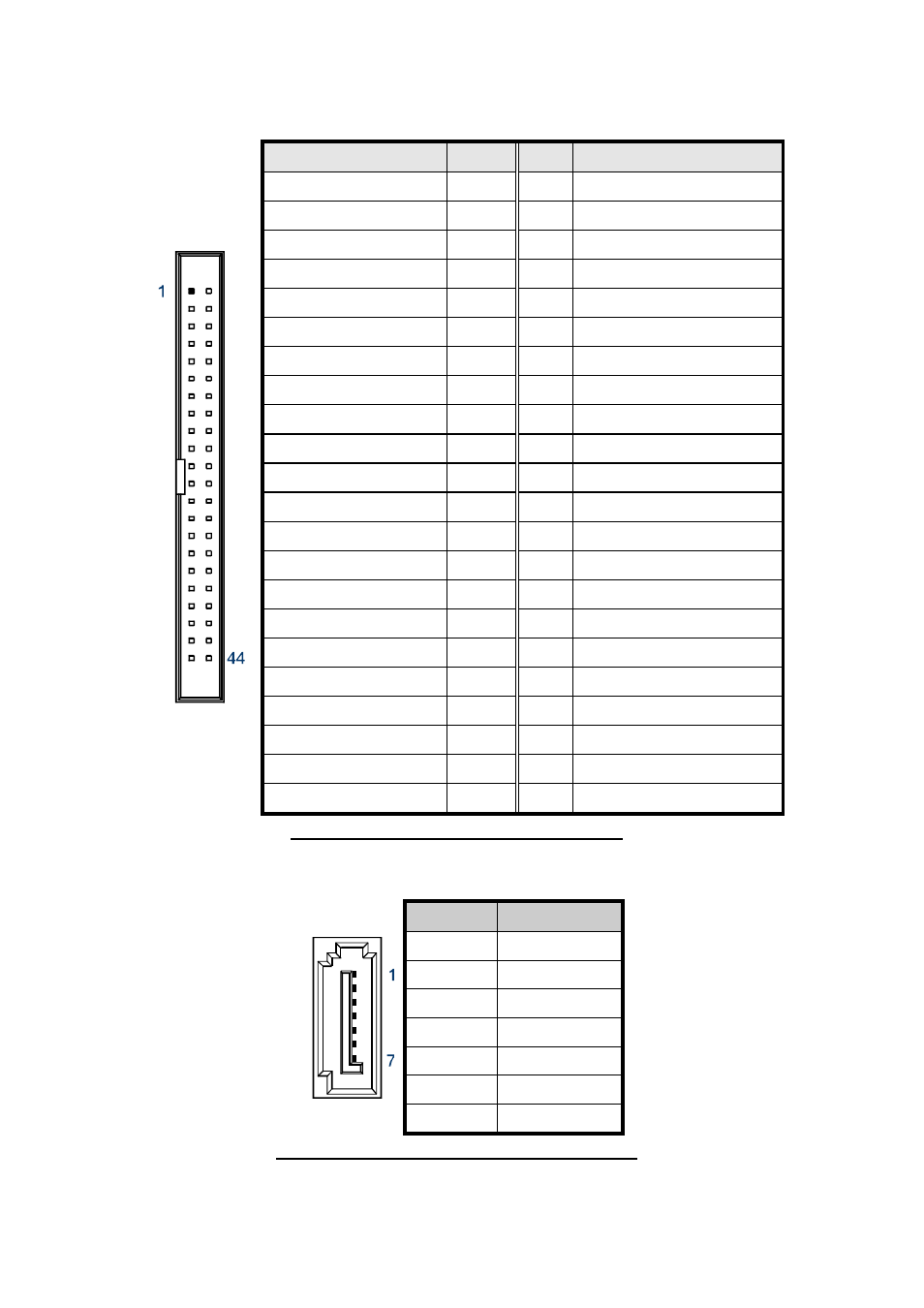

Table 29 IDE1, Primary 44-pin IDE Box Header
Signal Name Pin Pin Signal Name
Reset IDE 1 2 GND
IDE Data 7 3 4 IDE Data 8
IDE Data 6 5 6 IDE Data 9
IDE Data 5 7 8 IDE Data 10
IDE Data 4 9 10 IDE Data 11
IDE Data 3 11 12 IDE Data 12
IDE Data 2 13 14 IDE Data 13
IDE Data 1 15 16 IDE Data 14
IDE Data 0 17 18 IDE Data 15
Ground 19 20 NC
DREQ0 21 22 GND
IDEIOW# 23 24 GND
IDEIOR# 25 26 GND
IDEIORDY 27 28 CBSEL
DACK0# 29 30 GND
IDEIRQ14 31 32 NC
IDE Address 1 33 34 PDIAG#
IDE Address 0 35 36 IDE Address 2
IDE Chip select 1# 37 38 IDE Chip select 3#
IDE activity 39 40 GND
+5V 41 42 +5V
GND 43 44 NC
Pitch:2.0mm [YIMTEX 32644SAGR(6T)]
Table 30 SATA1,2, SATA Connector
Pin Signal Name
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
SATA WATM-07ABN4B2B8UW4 [WIN WIN]
