Chapter 2
30 KEMX-2030 User’s Manual

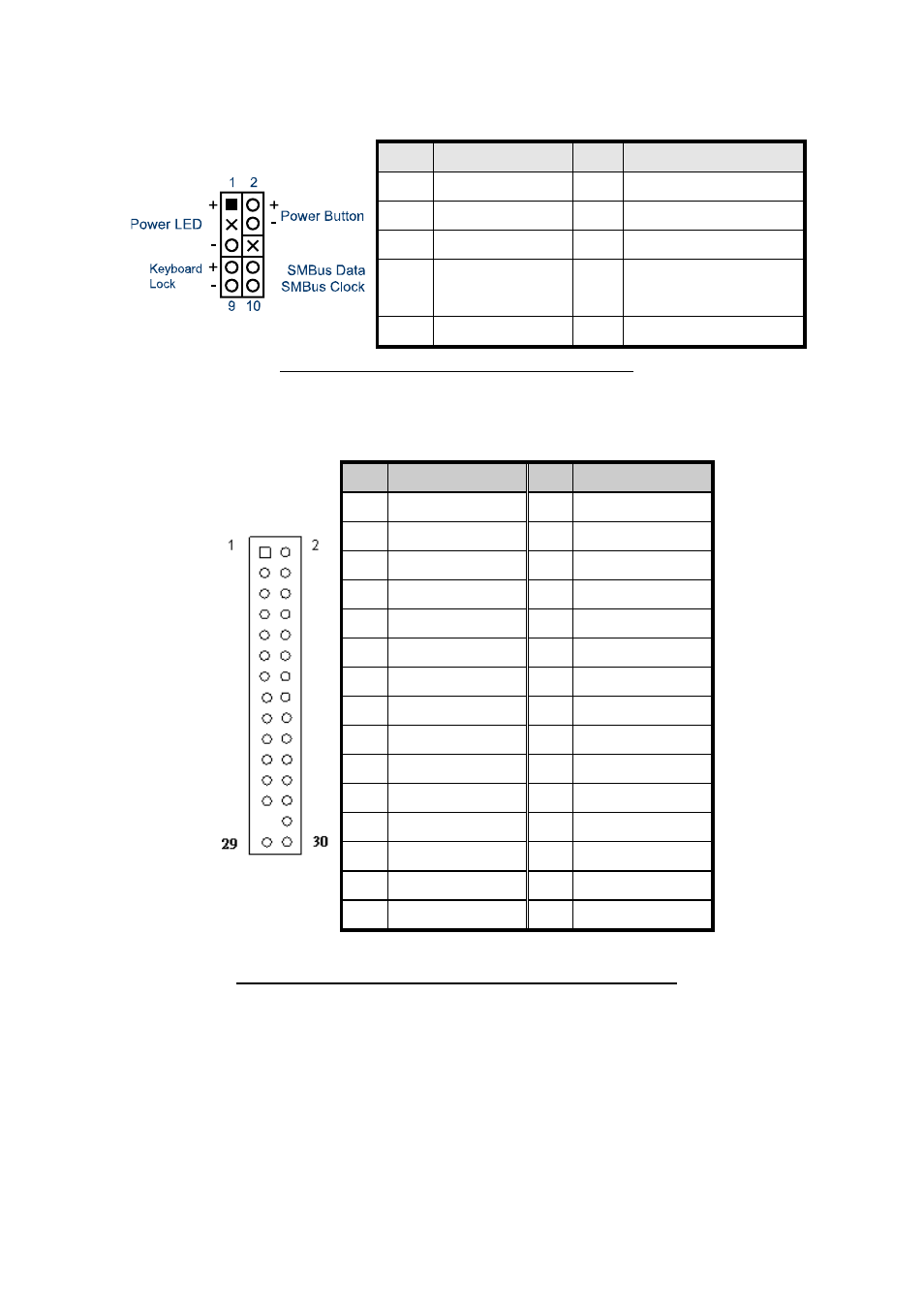

Table 27 FP2, Front Panel 2 Pin Header
Pin Signal Pin Signal
1 Power LED + 2 Power Button +
3 NC 4 Power Button -
5 Power LED - 6 NC
7 Keyboard
Lock
8 SMBus Data
9 GND 10 SMBus Clock
Pitch:2.54mm [YIMTEX 3322*05SAGR(6T]
Table 28 LVDS1, LVDS Panel Connector
Pin Signal Name Pin Signal Name
1 NC 2 NC
3 LVDS_A0- 4 LVDS_A0+
5 LVDS_A1- 6 LVDS_A1+
7 LVDS_A2- 8 LVDS_A2+
9 LVDS_ACK- 10
LVDS_ACK+
11 LVDS_A3- 12 LVDS_A3+
13 GND 14 GND
15 LVDS_B0- 16 LVDS_B0+
17 LVDS_B1- 18 LVDS_B1+
19 LVDS_B2- 20 LVDS_B2+
21 LVDS_BCK- 22 LVDS_BCK+
23 LVDS_B3- 24 LVDS_B3+
25 NC 26 GND
27 NC 28 +3.3V / +5V *
29 +3.3V / +5V * 30 +3.3V / +5V *
*：Selected by JP2
Pitch:2.0mm CUT27 [YIMTEX 3292*15SAGR(6T)-27]
