Chapter 2
33 KEMX-2030 User’s Manual

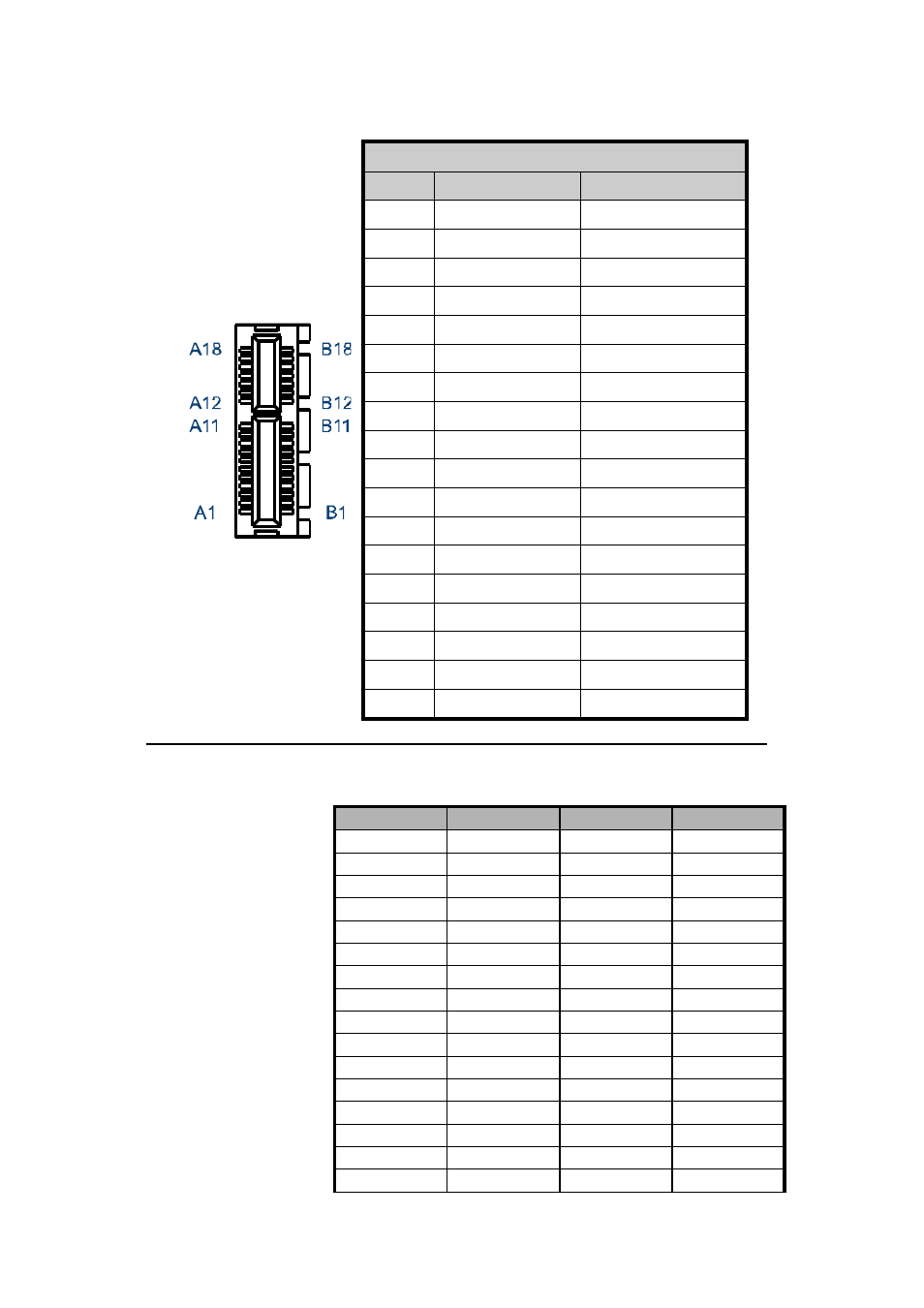

Table 34 PCIE1 PCIE slots
PCIE slots
Pin Side B Side A
1 12V 3.3V
2 12V 3.3V
3 3.3VSB Ground
4 PCIE_WAKE# CLK100_PCIE+
5 PCI_RST# CLK100_PCIE-
6 Ground Ground
7 PCIE_TXP2 PCIE_RXP2
8 PCIE_TXN2 PCIE_RXN2
9 Ground
Ground
10 PCIE_TXP3 PCIE_RXP3
11 PCIE_TXN3 PCIE_RXN3
12 Ground Ground
13 Ground Ground
14 NC NC
15 NC NC
16 Ground Ground
17 NC NC
18 NC NC
PCI 18*2P EXPRESS 180D(F) Black [ Win Win WPES--036AN41B22UWS]
Table 35 MPCI1, Mini-PCI Socket
Pin Signal Pin Signal
1 NC 2 NC
3 NC 4 NC
5 NC 6 NC
7 NC 8 NC
9 NC 10 NC
11 NC 12 NC
13 NC 14 NC
15 GND 16 NC
17 INTA# 18 +5V
19 +3.3V 20 INTD#
21 NC 22 NC
23 GND 24
+3.3V_SB
25 PCICLK 26 RST#
27 GND 28 +3.3V
29 REQ# 30 GNT#
31 +3.3V 32 GND
