Chapter 2
28 KEMX-2030 User’s Manual

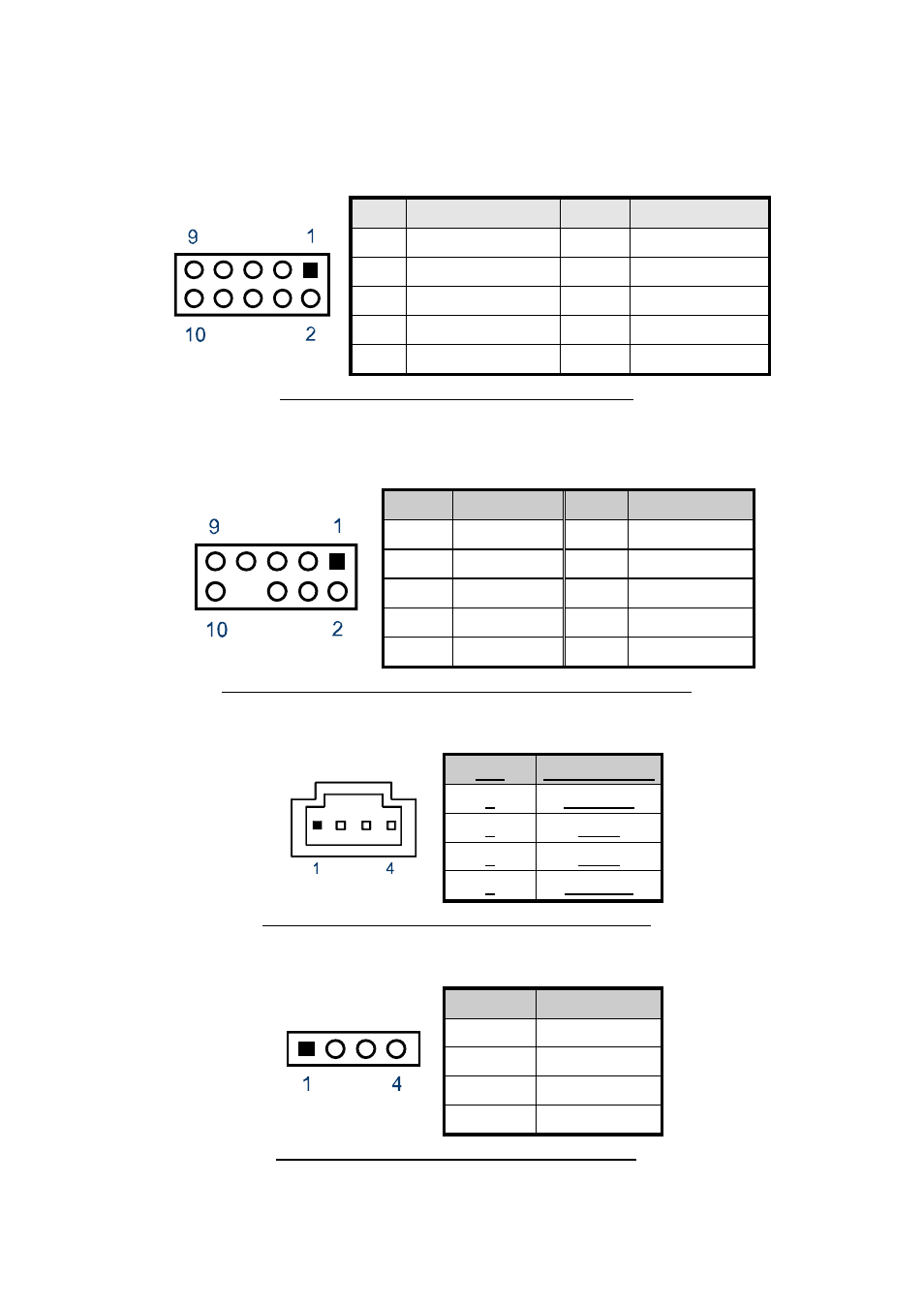

Table 19 CN3, Digital Input / Output Pin Header
Pin Signal Pin Signal
1 Digital Output 0 2 Digital Input 0
3 Digital Output 1 4 Digital Input 1
5 Digital Output 2 6 Digital Input 2
7 Digital Output 3 8 Digital Input 3
9 +5V 10 GND
Pitch:2.54mm [YIMTEX 3322*05SAGR(6T]
Table 20 CN4, Front Panel Audio Pin Header
Pin Signal Pin Signal
1 MIC2-L 2 Audio GND
3 MIC2-R 4 ACZ_DET#
5 Line2-R 6 MIC2_JD
7 FIO_Sense
8 Key
9 Line2-L 10 Line2_JD
Pitch:2.54mm w/o Pin 8 [YIMTEX 3322*05SAGR(6T)-08]
Table 21 CN5, CD-In Connector
Pin Signal Name
1 CD-IN-R
2 GND
3 GND
4 CD-IN-L
Pitch:2.54mm WAFER [YIMTEX 522CW4SGR]
Table 22 CN6, S/PDIF Pin Header
Pin Signal Name
1 S/PDIF In
2 GND
3 S/PDIF
Out
4 GND
Pitch:2.54mm [YIMTEX 3321*04SAGR(6T)]
