Chapter 2
35 KEMX-2030 User’s Manual

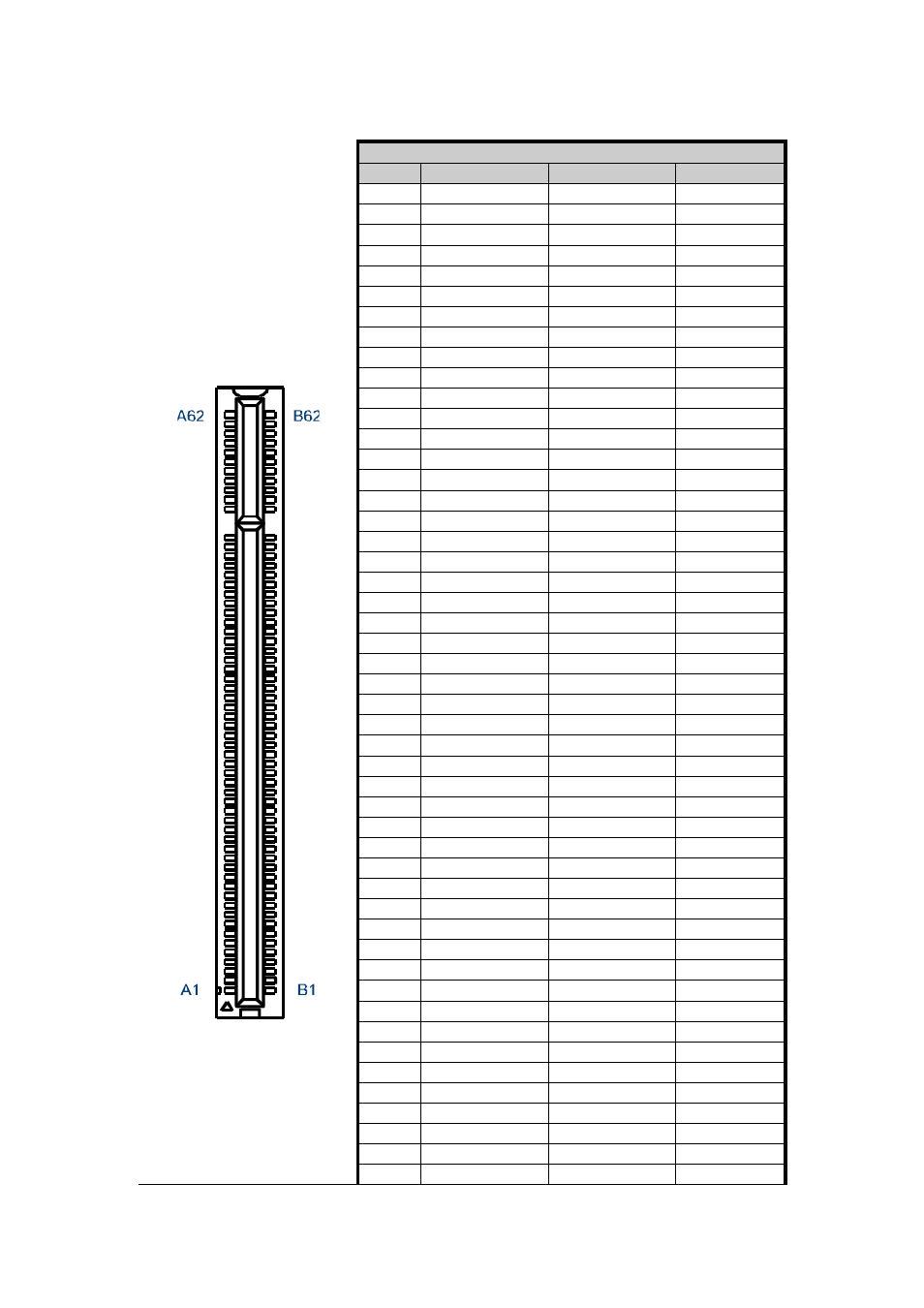

Table 36 PCI1, PCI slots
5V Board PCI Revision 2.1
Pin
Side B Side A Comments
1 -12V TRST_L 32-bit start
2 TCK +12V
3 Ground TMS
4 TDO TDI
5 +5V +5V
6 +5V INTA_L
7 INTB_L INTC_L
8 INTD_L +5V
9 PRSNT1_L Reserved
10 Reserved +5V
11 PRSNT2_L Reserved
12 Ground
Ground 3.3V key
13 Ground Ground 3.3V key
14 Reserved Reserved
15 Ground
RST_L
16 CLK +5V
17 Ground GNT_L
18 REQ_L Ground
19 +5V Reserved
20 AD[31] AD[30]
21 AD[29] +3.3V
22 Ground AD[28]
23 AD[27] AD[26]
24 AD[25] Ground
25 +3.3V AD[24] +3.3V
26 C/BE[3]_L IDSEL
27 AD[23] +3.3V
28 Ground AD[22]
29 AD[21] AD[20]
30 AD[19] Ground
31 +3.3V AD[18]
32 AD[17] AD[16]
33 C/BE[2]_L +3.3V
34 Ground FRAME_L
35 IRDY_L Ground
36 +3.3V TRDY_L
37 DEVSEL_L Ground
38 Ground STOP_L
39 LOCK_L +3.3V
40 PERR_L Reserved
41 +3.3V
Reserved
42 SERR_L Ground
43 +3.3V PAR
44 C/BE[1]_L AD[15]
45 AD[14] +3.3V
46 Ground AD[13]
47 AD[12] AD[11]
48 AD[10] Ground
49 Ground AD[09]
