Hardware Installation - 29 -
English

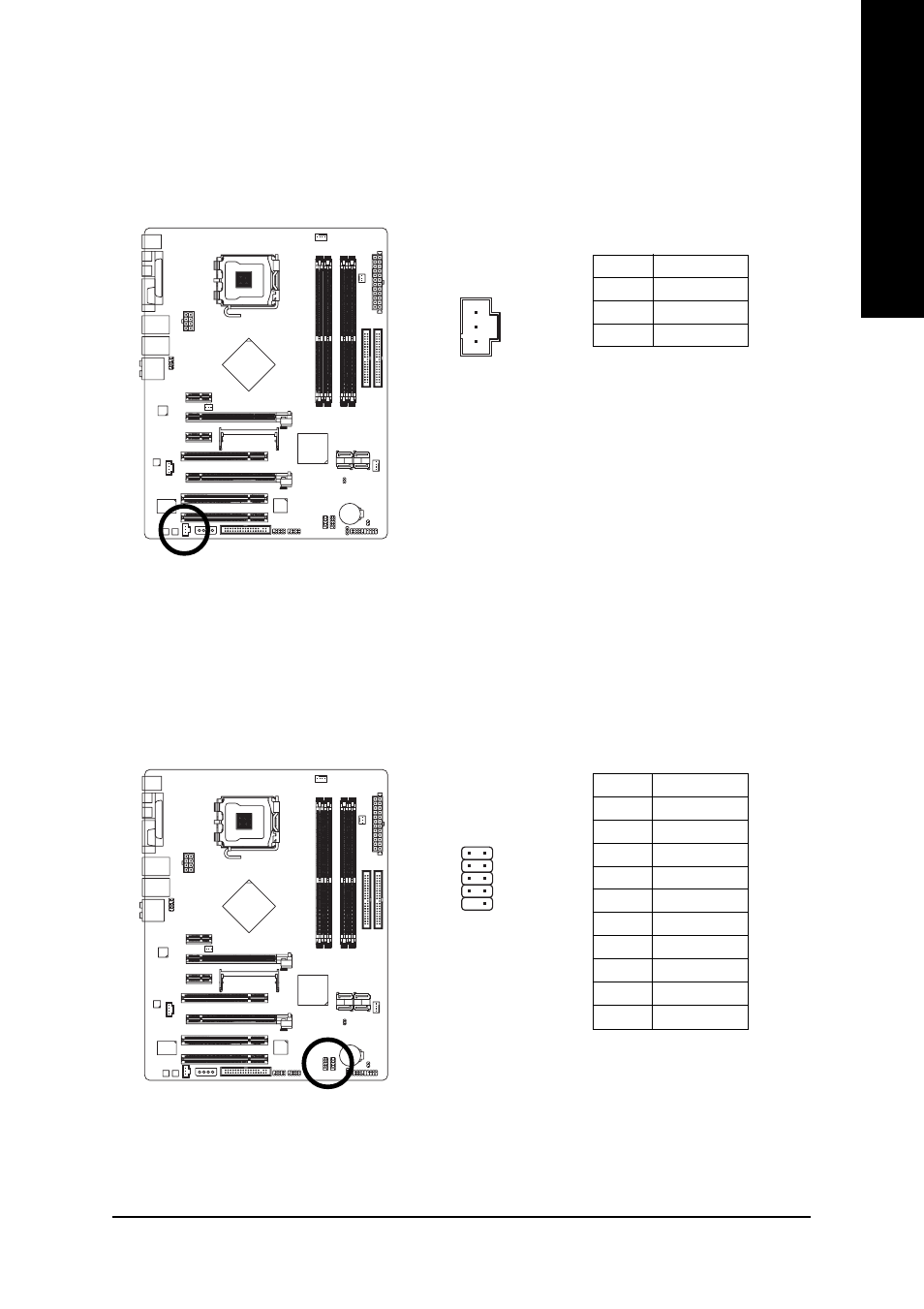

15) SPDIF_IN (S/PDIF In Connector)
Use S/PDIF IN feature only when your device has digital output function. Be careful with the
polarity of the SPDIF_I connector. Check the pin assignment carefully while you connect the
S/PDIF cable, incorrect connection between the cable and connector will make the device unable
to work or even damage it. For optional S/PDIF cable, please contact your local dealer.
Pin No. Definition
1 Power
2 SPDIFI
3 GND
16) F_ USB1/F_USB2 (Front USB Connector)
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while
you connect the front USB cable, incorrect connection between the cable and connector will make
the device unable to work or even damage it. For optional front USB cable, please contact your
local dealer.
Pin No. Definition
1 Power(5V)
2 Power(5V)
3 USB DX-
4 USB Dy-
5 USB DX+
6 USB Dy+
7 GND
8 GND
9 No Pin
10 NC
9
1
10
2
1
