English, 13) pwr_led, 14) cd_in (cd in) – Intel GA-N650SLI-DS4 User Manual
Page 28
GA-N650SLI-DS4 Motherboard
- 28 -
English

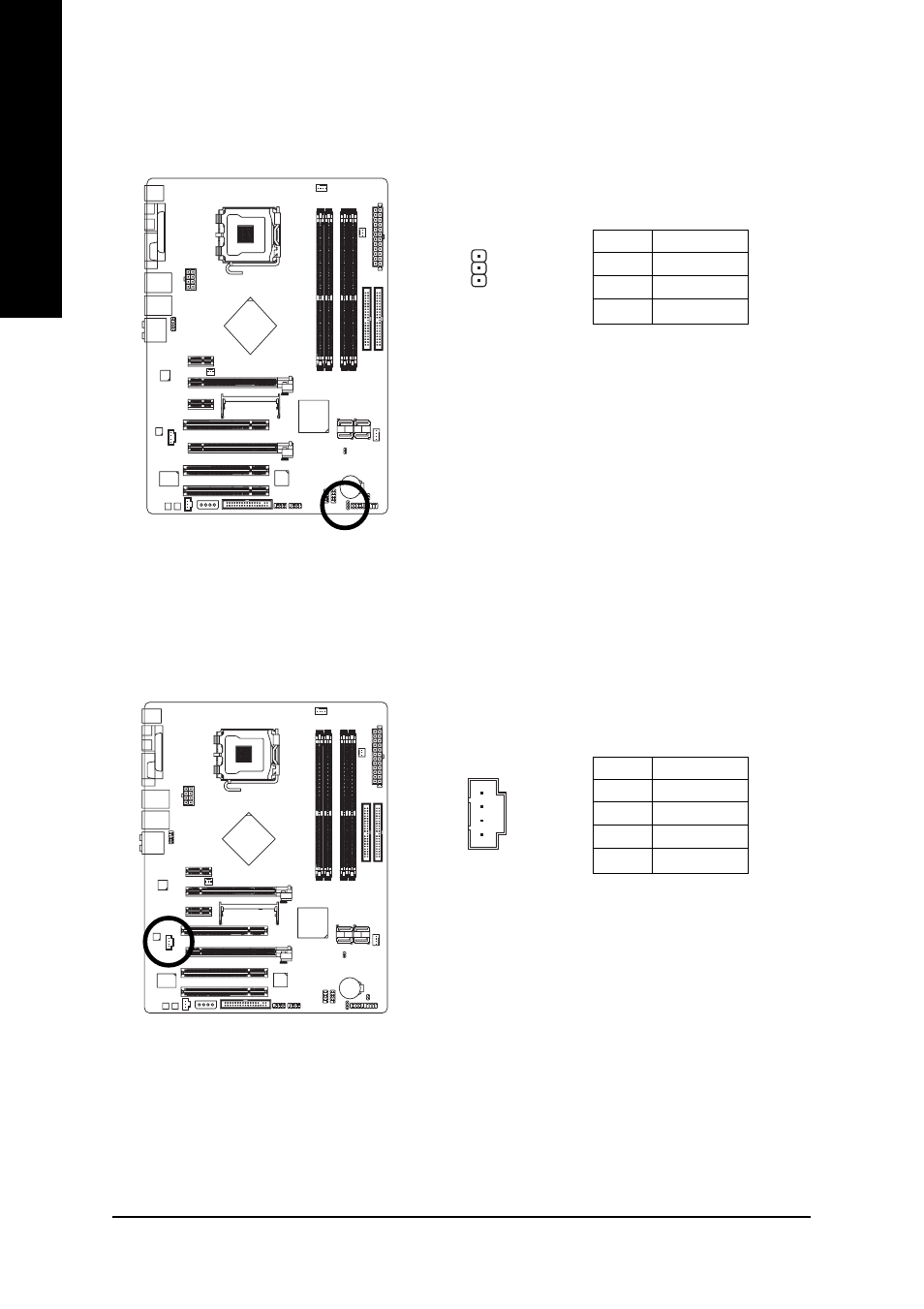

13) PWR_LED
The PWR_LED connector is connected with the system power indicator to indicate whether the
system is on/off. It will blink when the system enters suspend mode (S1).
Pin No.
Definition
1
MPD+
2
MPD-
3
MPD-
14) CD_IN (CD IN)
Connect CD-ROM or DVD-ROM audio out to the connector.
Pin No.
Definition
1
CD-L
2
GND
3
GND
4
CD-R
1
1
