Insignia NS-42LCD 42-inch LCD TV
www.insignia-products.com

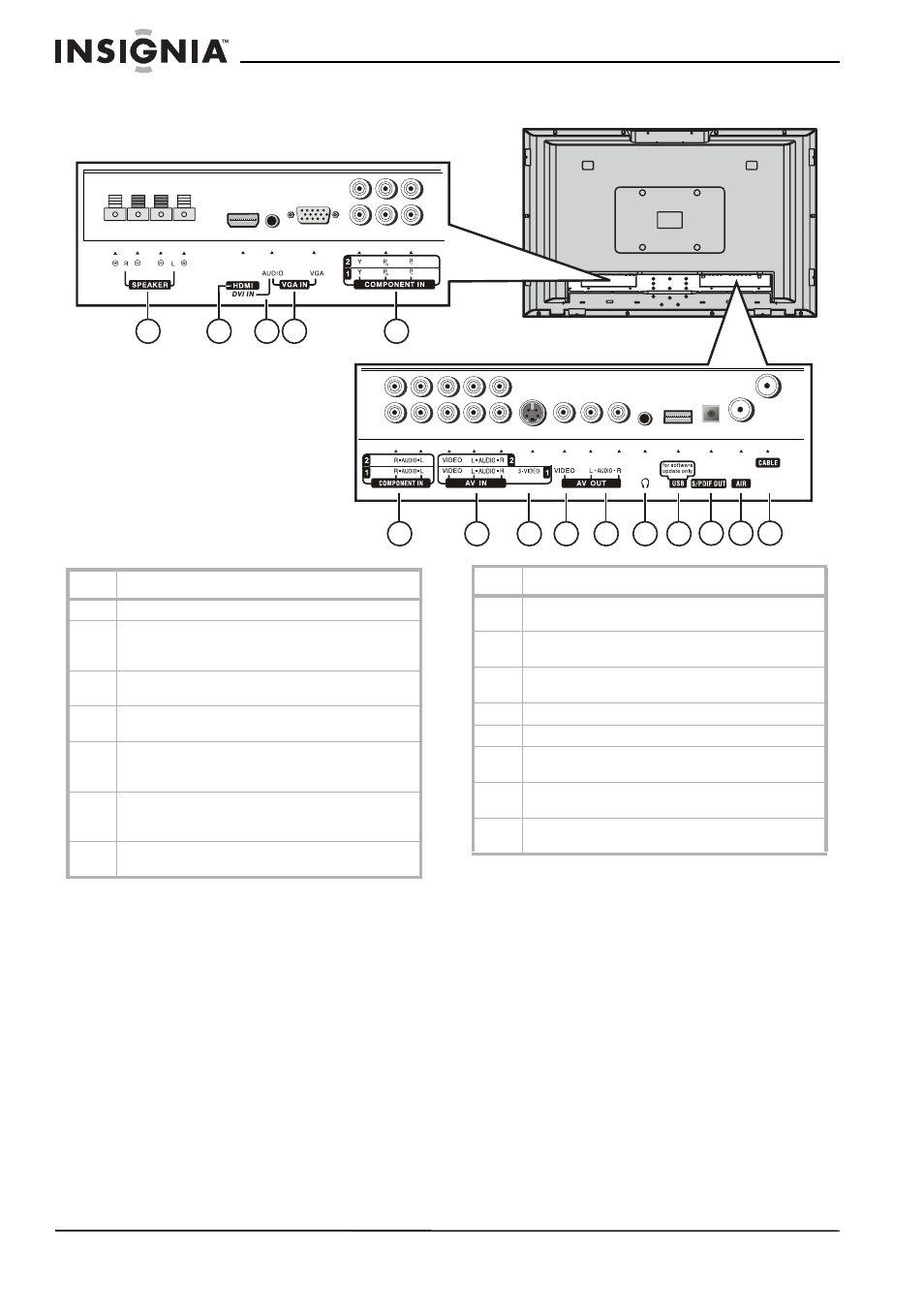

TV back
6 7 8 9 10 11 12
1 2 3 4 5
13 14 15
Item Description
1 Speaker output jacks
2 HDMI input jack—Connect devices with an HDMI
interface (for example, a set-top box or DVD player)
to this connector.
3 Audio in jack—Connect audio input (such as from a
computer) to this jack.
4 VGA port—Connect devices with a VGA interface (for
example, a computer) to this port.
5 Component video 1 and 2 jacks—Connect the
component video output jacks of a DVD player or
set-top box to these jacks.
6 Component audio 1 and 2 jacks—Connect the audio
output jacks of a DVD player or set-top box to these
jacks.
7 AV 1 and 2 jacks—Connect the AV output jacks of a
VCR or DVD player to these jacks.
8 S-VIDEO jack—Connect the S-Video output jack of a
VCR or DVD player to this jack.
9 VIDEO out jacks—Connect to a VCR’s or DVR’s video
input jacks to record programs.
10 AUDIO out jacks—Connect to a VCR’s or DVR’s audio
input jacks to record audio for programs.
11 Headphone jack—Connect headphones to this jack.
12 USB port—For software (firmware) updates only.
13 S/PDIF optical digital audio out jack—Connect an
optical digital audio device to this jack.
14 AIR antenna jack—Connect an indoor or outdoor
antenna to this jack.
15 CABLE jack—Connect a cable TV system to this
connector.
