Insignia NS-42LCD 42-inch LCD TV
www.insignia-products.com

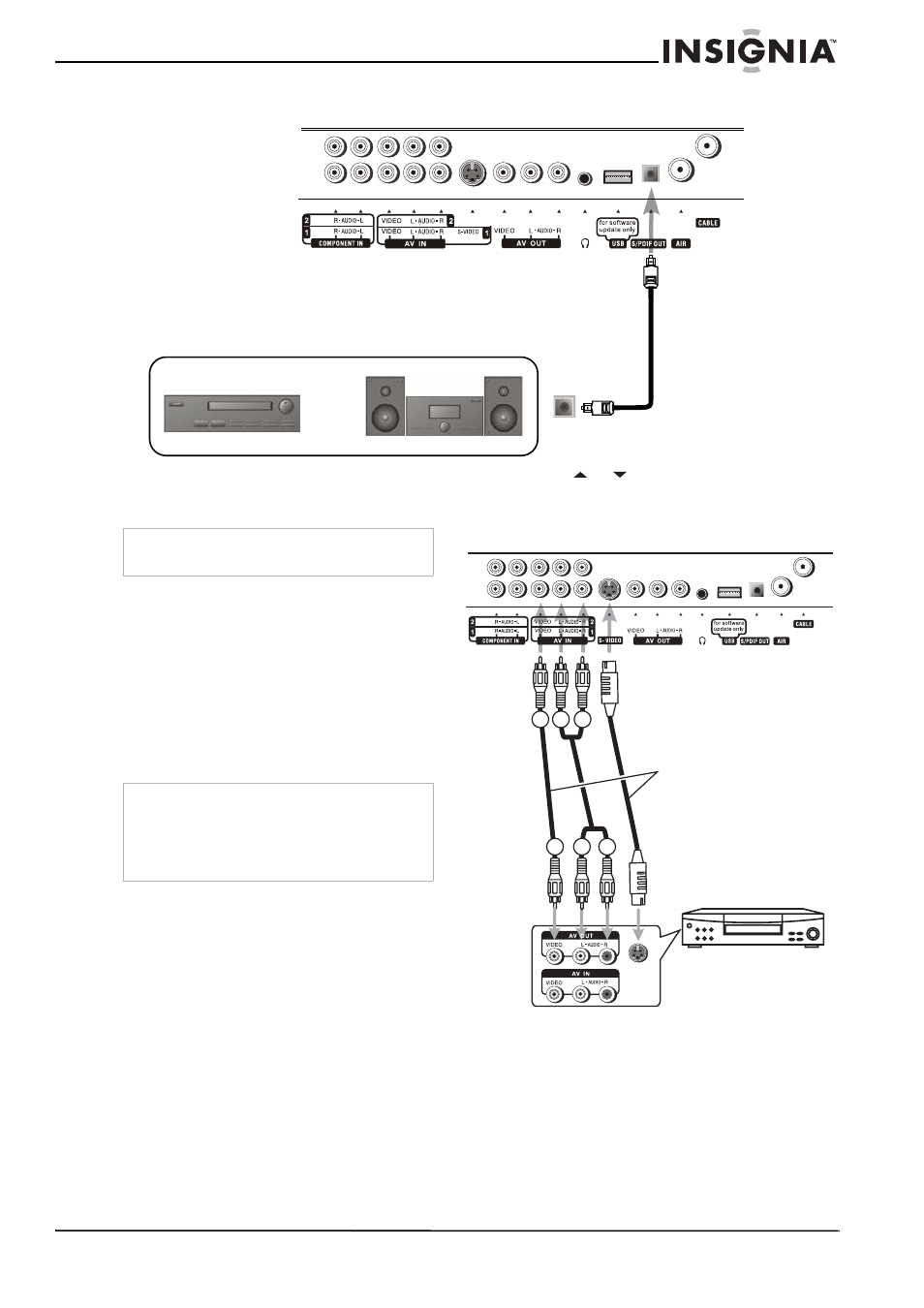

Connecting digital optical audio
For a full home theater sound experience, you
should connect your stereo or audio processor
to the S/PDIF OUT (Optical) jack on the TV.
To connect optical audio
1 Connect an optical audio cable to the S/PDIF
OUT jack on the back of the TV.
2 Connect the cable to the S/PDIF IN jack on
your stereo or audio receiver.
Connecting a VCR
To connect a VCR:
1 Connect the audio/video cables to the Audio
(L/R)/Video jacks on the unit and VCR.
To play video from your VCR:
2 Turn on your TV, then press INPUT. The
INPUT SELECT menu opens.
3 Press or to select AV1/SVideo, then
press OK to confirm.
4 Turn on your VCR, insert a videotape, then
press Play on the VCR.
OR
S/PDIF IN
(optical)
Receiver Stereo
Note
The S/PDIF OUT jack can output digital audio
from TV programs only.
Note
For better video, you can connect to the S-VIDEO
jack if your source device supports it. S-VIDEO
input uses the same circuit as Video1, and if both
standard A/V inputs and S-VIDEO inputs are
connected, S-VIDEO has priority. Use one or the
other.
A/V cables and
S-Video cable
VCR
Y R W
Y R W
Y=Yellow (Video)
W=White (Audio L)
R=Red (Audio R)
