Insignia NS-42LCD 42-inch LCD TV
www.insignia-products.com

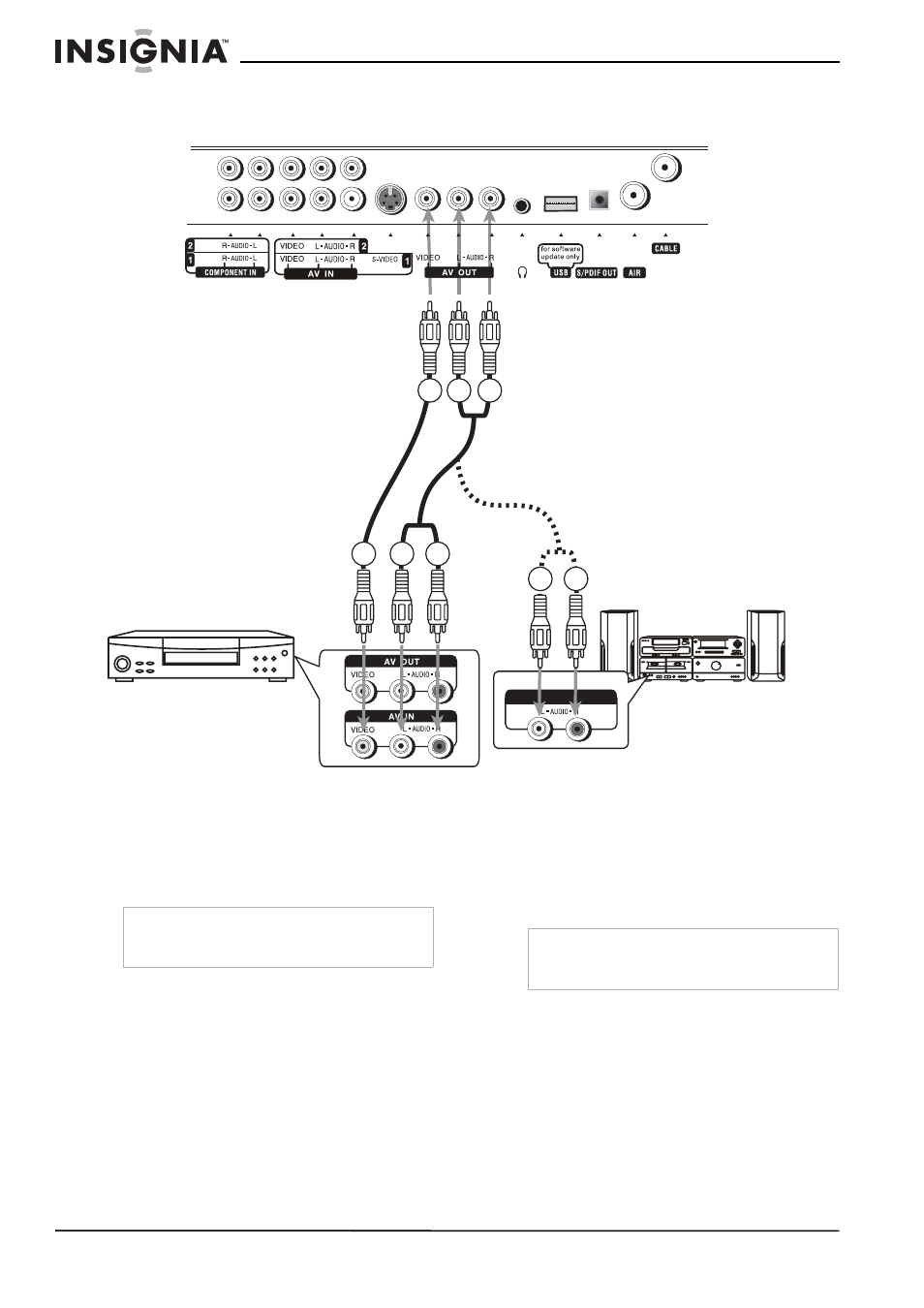

Connecting a VCR (for recording) or
external amplifier
To connect a VCR or amplifier:
1 Connect the video cables to the Video jacks
on the TV and VCR.
2 Connect the audio cables to the TV, then
connect them to the Audio (L/R) jacks on
either the VCR or an external amplifier.
To record a program:
1 Turn on your TV, then select a program you
want to record.
2 Turn on your VCR, then insert a videotape for
recording.
3 Press the Record button on the VCR to
begin recording.
Monitor - Record
Y R W
Y R W
R W
Y=Yellow (Video)
W=White (Audio L)
R=Red (Audio R)
Video
cable
Audio
cable
External
amplifier
VCR
Note
Only analog TV programs and AV1/AV2 input
sources can be output through the AV output
jacks.
Note
The operations of the amplifier may be different
depending on your model. Read the amplifier’s
user guide to confirm correct operation.
