ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended this machine be assembled by two or more people to
avoid possible injury.

STEP 1 (See Diagram 1)
A.) Place the Main Base Frame (#2) on a flat surface.
B.) Attach two Pulleys (#84) to the open oblique pulley brackets on the center of the Main Base

Frame. Secure each Pulley with one M10 x 2” Allen Bolt (#102), two Ø ¾” Washers (#118),
and one M10 Aircraft Nut (#125).

C.) Attach four Pulleys (#84) to the other four open brackets on the Main Base Frame. Secure

each Pulley with one M10 x 1 ¾” Allen Bolt (#101), two Ø ¾” Washers (#118), and one M10
Aircraft Nut (#125).

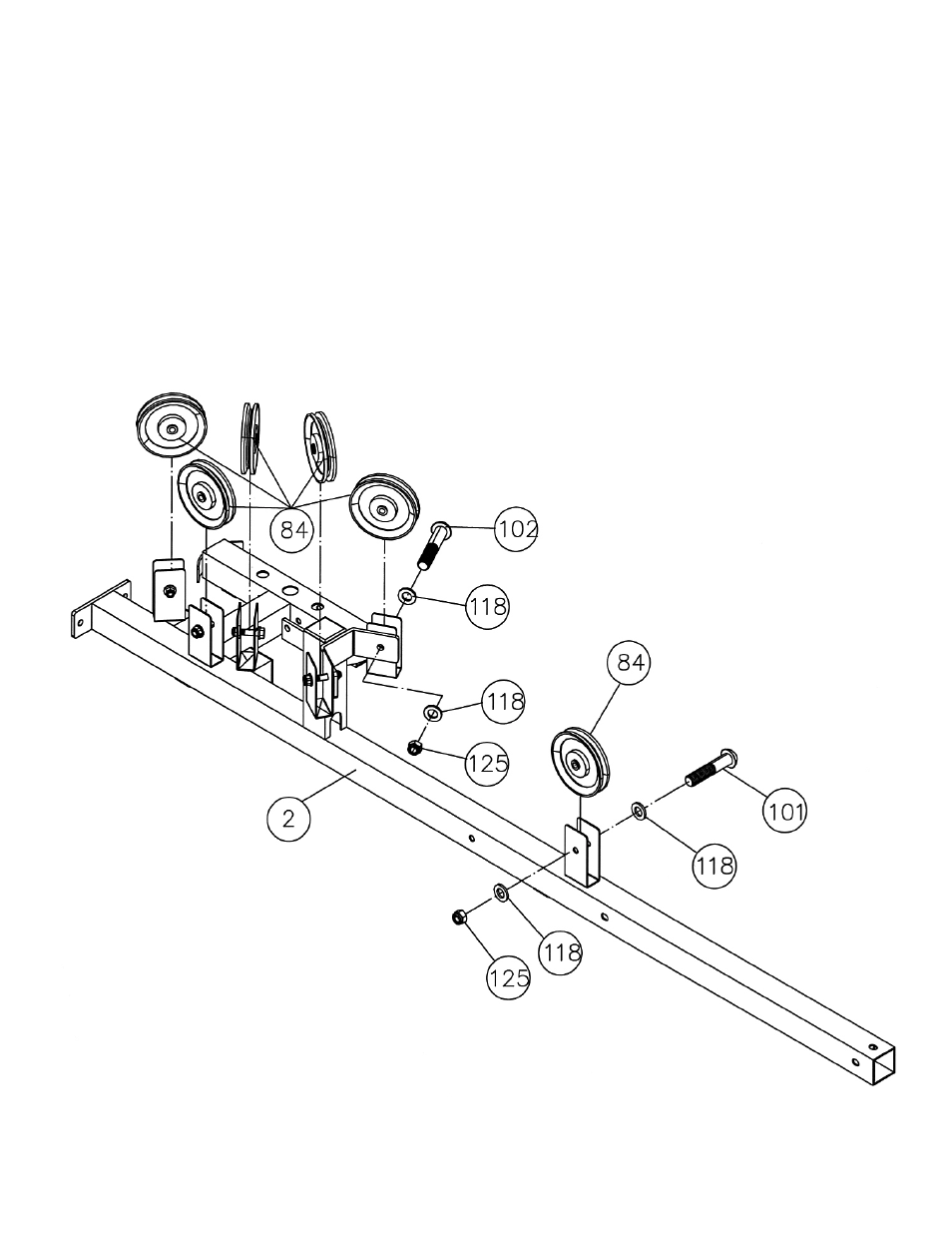

DIAGRAM 1
