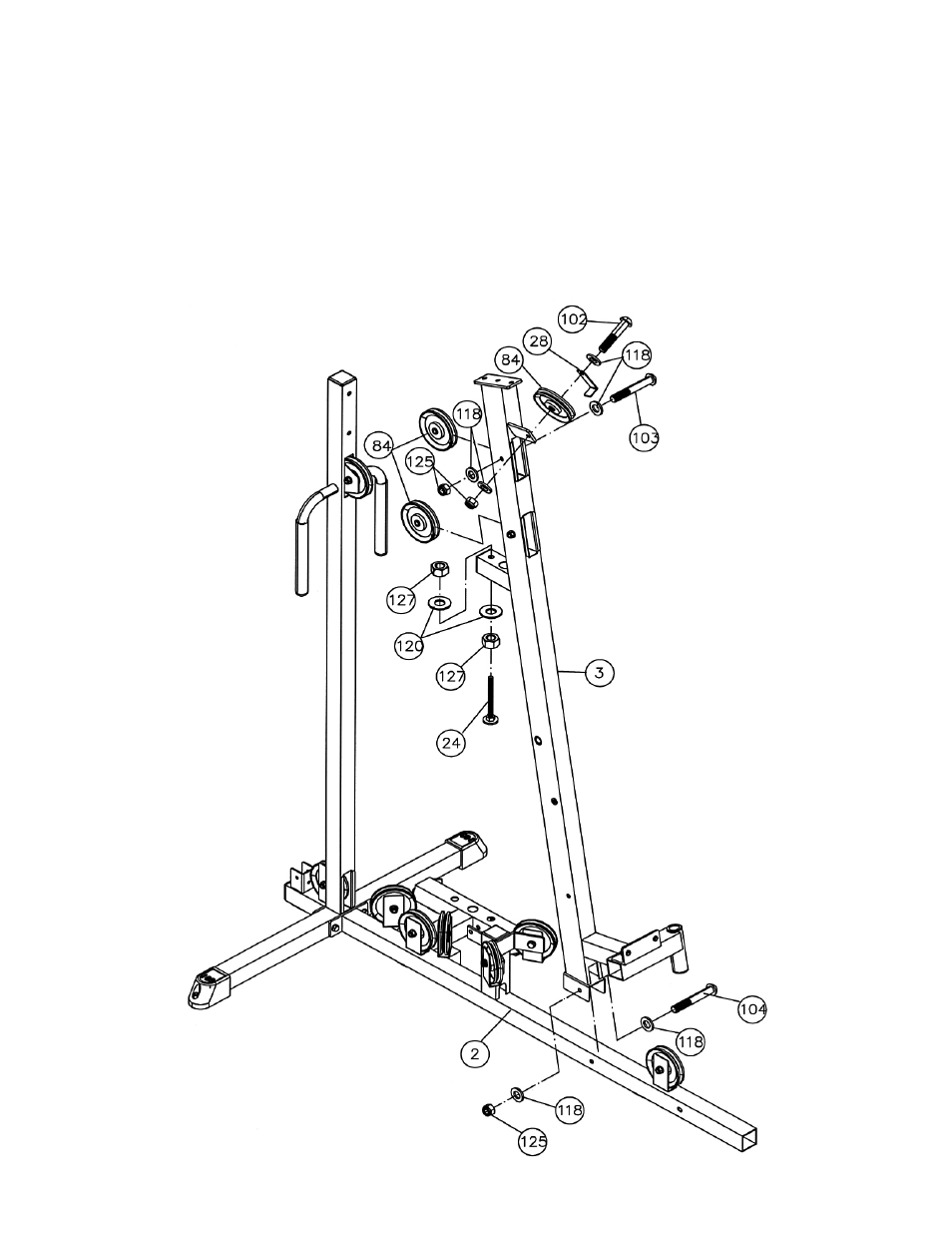

STEP 3 (See Diagram 3)
A.) Attach the Front Vertical Beam (#3) to the Main Base Frame (#2). Secure it with one M10 x 2 ¾”
Allen Bolt (#104), two Ø ¾” Washers (#118), and one M10 Aircraft Nut (#125). Do not tighten the
nut and bolt yet.
B.) Attach a Pulley to the bracket on the upper Front Vertical Beam. Attach a L-shaped Bracket
(#28) to the Pulley. Secure them with one M10 x 2” Allen Bolt (#102), two Ø ¾” Washers (#118),
and one M10 Aircraft Nut (#125).
C.) Place two Pulleys in the two openings on the Front Vertical Beam. Secure each Pulley with one
M10 x 2 ½” Allen Bolt (#103), two Ø ¾” Washers (#118), and one M10 Aircraft Nut (#125).
D.) Insert a Pulley Pre-tensioner (#24) through the hole on the back of Front Vertical Beam. Secure
it with two Ø 1 1/8” x Ø ½” Washers (#120) and M12 Regular Nuts (#127).
