Impex TC-6000 User Manual
Marcy, Power station, Tc-6000
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
TC-6000
Retain This
Manual for
Reference
100614

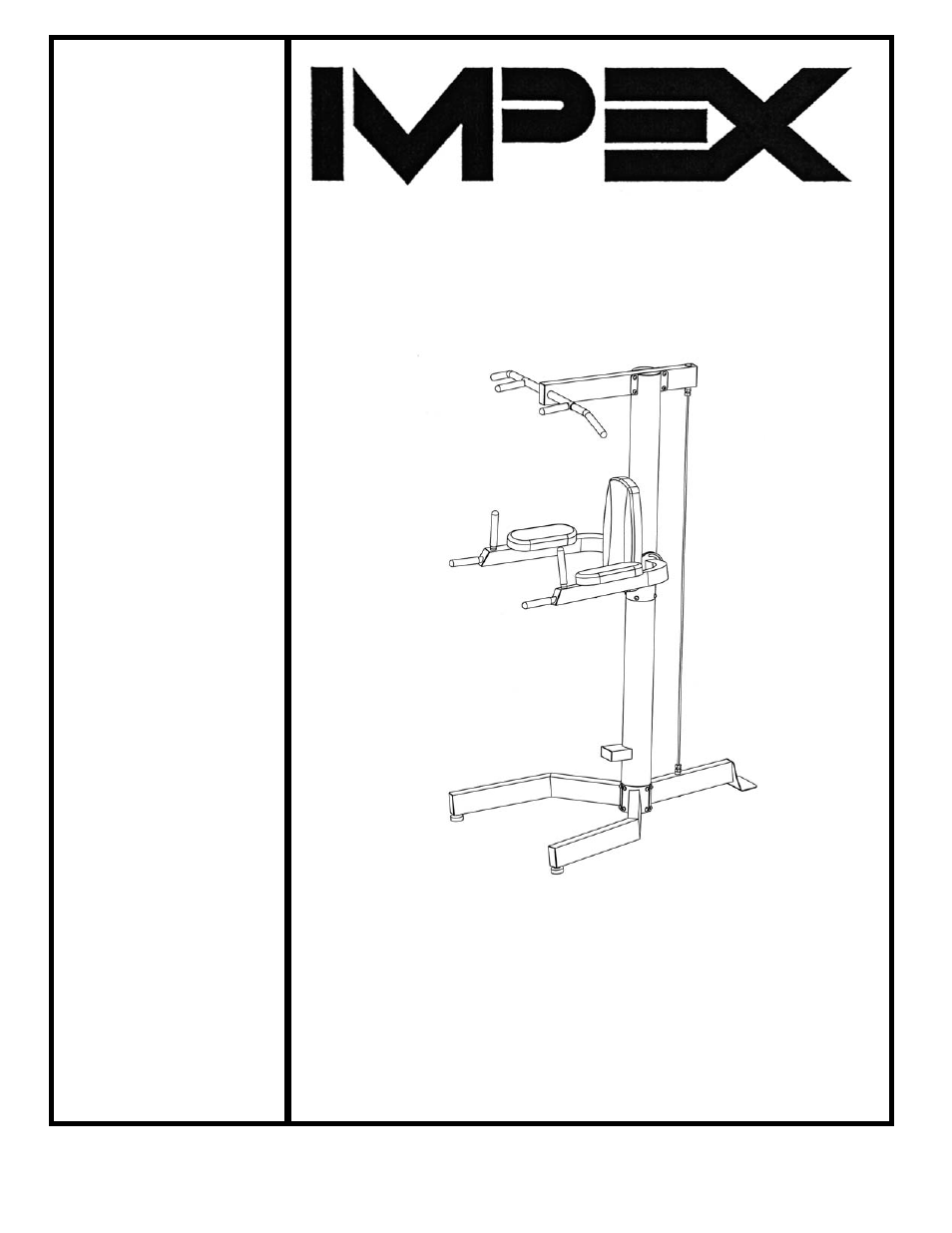

OWNER'S
MANUAL
MARCY
®
POWER STATION
TC-6000
IMPEX
®
INC.
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
Table of contents
Document Outline
- BEFORE YOU BEGIN...................................................................................... 1
- IMPORTANT SAFETY NOTICES..................................................................... 2
- HARDWARE IDENTIFIER.....…....................................................................... 4
- ASSEMBLY INSTRUCTIONS........................................................................... 5
- EXPLODED DIAGRAM……………………………………………………………… 9
- PARTS LIST...................................................................................................... 10
- WARRANTY.................................................................................................…. 11
- ORDERING PARTS.......................................................................................… 11
- WARNING LABEL PLACEMENT
- HARDWARE PACK
- ASSEMBLY INSTRUCTION
- A.) Attach the Upper Vertical Frame (#1) onto the Lower Vertical Frame (#2). Secure it with six M10 x ¾” Allen Bolts (#20) and six Ø ¾” Washers (#24).
- B.) Attach the Right Dip Support (#6) to the Upper Vertical Frame. Secure it with two M10 x ½” Allen Bolts (#19). Do not over tighten the Bolt. Make sure the Dip Support is able to fold up.
- C.) Thread the Vertical Support (#10) onto the Right Dip Support.
- D.) Repeat B & C to install the Left Dip Support (#7).
- E.) Attach the Upper Frame (#3) onto the Upper Vertical Frame. Secure it with four M10 x 2 7/8” Allen Bolts (#21), eight Ø ¾” Washers (#24), and four M10 Aircraft Nuts (#26).
- F.) Insert the Chin-up Bar (#9) to Upper Frame from both ends. Secure each Chin-up Bar with one M5 x ¼” Allen Bolt (#27).
- G.) Fold up the Left & Right Dip-Support when doing Chin-up exercises.
- DIAGRAM 2
- STEP 3 (See Diagram 3)
- A.) Attach the Backrest Pad (#11) to Upper Vertical Frame (#1). Secure it with two M10 x 6 ¾” Allen Bolts (#22) and two Ø ¾” Washers (#24).
- B.) Attach the Arm Pad to Left and Right Dip Support (#6 & #7). Secure each Arm Pad with two M8 x 3 ½” Allen Bolts (#23) and two Ø 5/8” Washers (#25).
- C.) Thread the Cable (#13) into Upper Frame (#3) and Rear Stabilizer (#8) to stabilize the equipment.
- EXPLODED DIAGRAM
- DIAGRAM 2
- Parts list
- KEY NO. DESCRIPTION Q’ty
