STEP 12 (See Diagram 12)
A.) Attach two Pulleys to each Angled Double Floating Pulley Bracket (#26). Secure each Pulley
with one M10 x 1 ¾” Allen Bolt (#101), two
∅
3/4” Washers (#118), and one M10 Aircraft Nut
(#125). Do not tighten the nuts and bolts yet. The Pulleys may need to be removed when
installing the Cables.
B.) Attach one Pulley to a Single Pulley Bracket (#23).
C.) Attach two Pulleys to the Double Floating Pulley Brackets (#27).

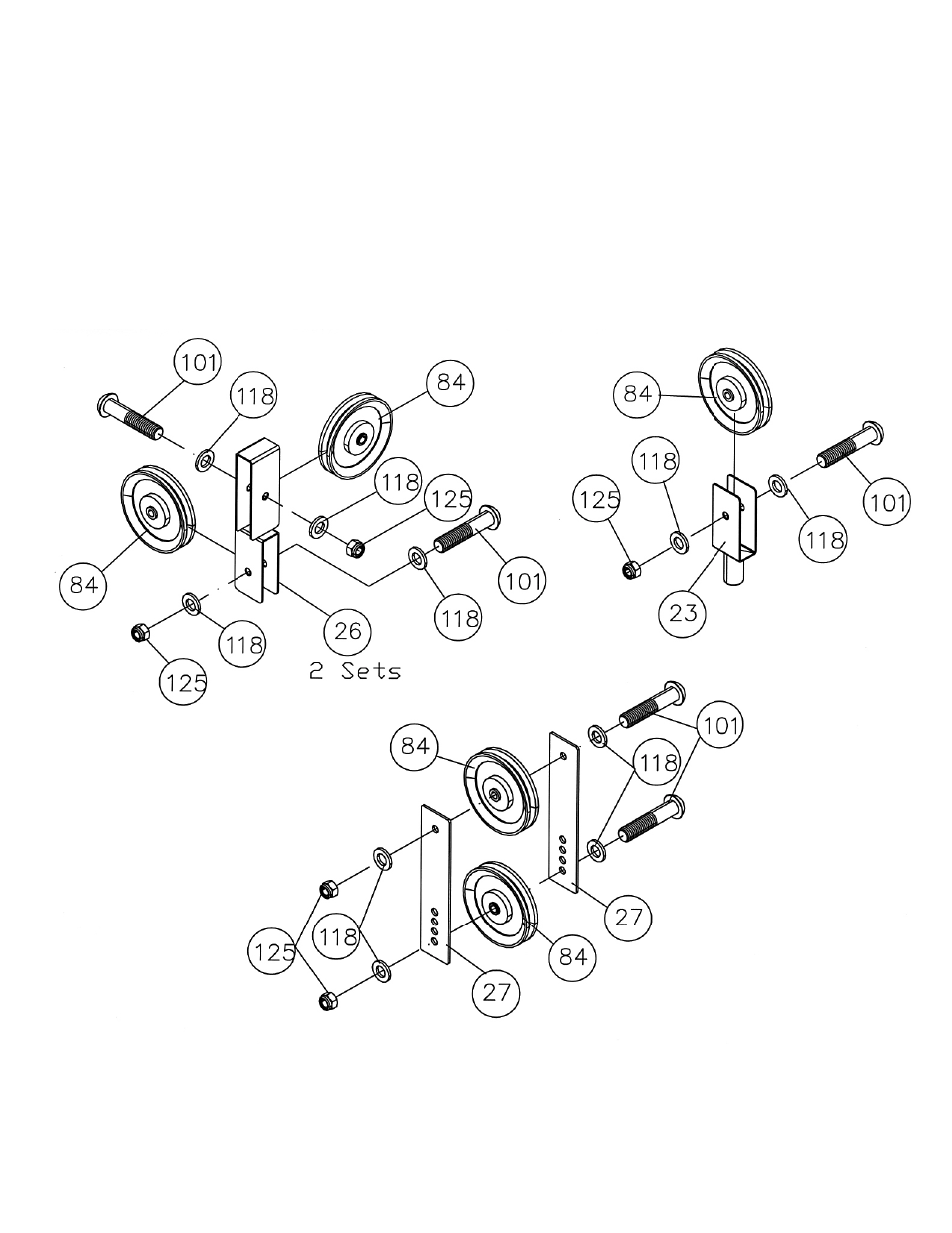

DIAGRAM 12
18
