IBM F50 RS/6000 7025 - Manual (Page 166)

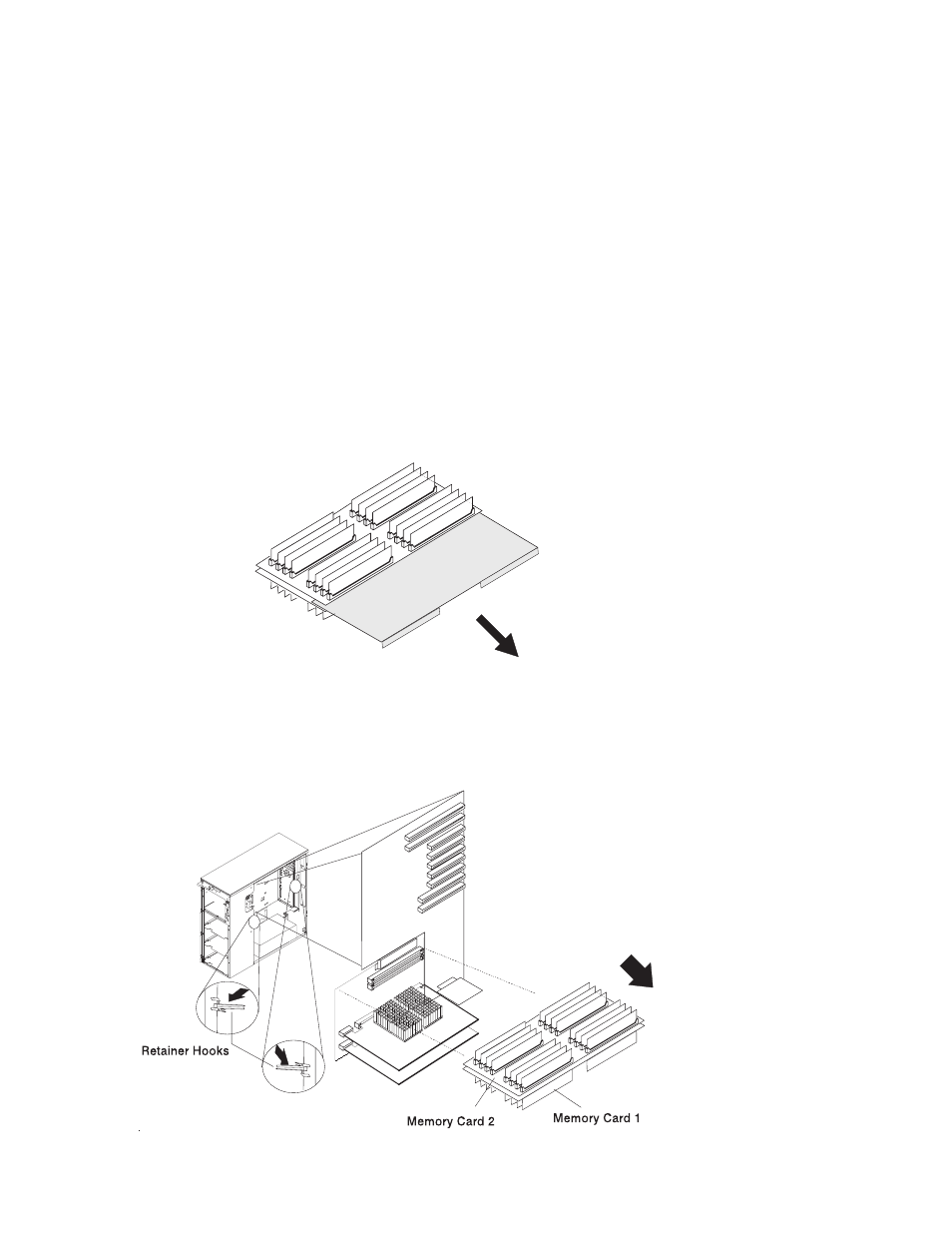

Removing Memory Adapter Cards
1. If you have not already done so, remove the covers as described in “Removing
Both the Front and Side Covers” on page 5-10.
2. Remove the I/O planar cover as described in “Removing the I/O Planar Cover”
on page 5-16; then return here to determine your next step.
3. Remove the memory adapter card shield.
4. The card is secured in place with card retainer hooks, one on each end of the
card. Open the card retainer hooks and remove the card.
Attention: To prevent damage to the card and the card connectors, open and
close the retainer hooks at the same time.
5-22 IBM RS/6000 7025 F50 Series User's Guide
