Installing or Adding Memory Adapter Cards
1. If you have not already done so, remove the covers as described in “Removing
Both the Front and Side Covers” on page 5-10.
2. Remove the I/O planar cover as described in “Removing the I/O Planar Cover”
on page 5-16; then return here to determine your next step.
3. Remove the memory card shield positioned over the bottom memory card.

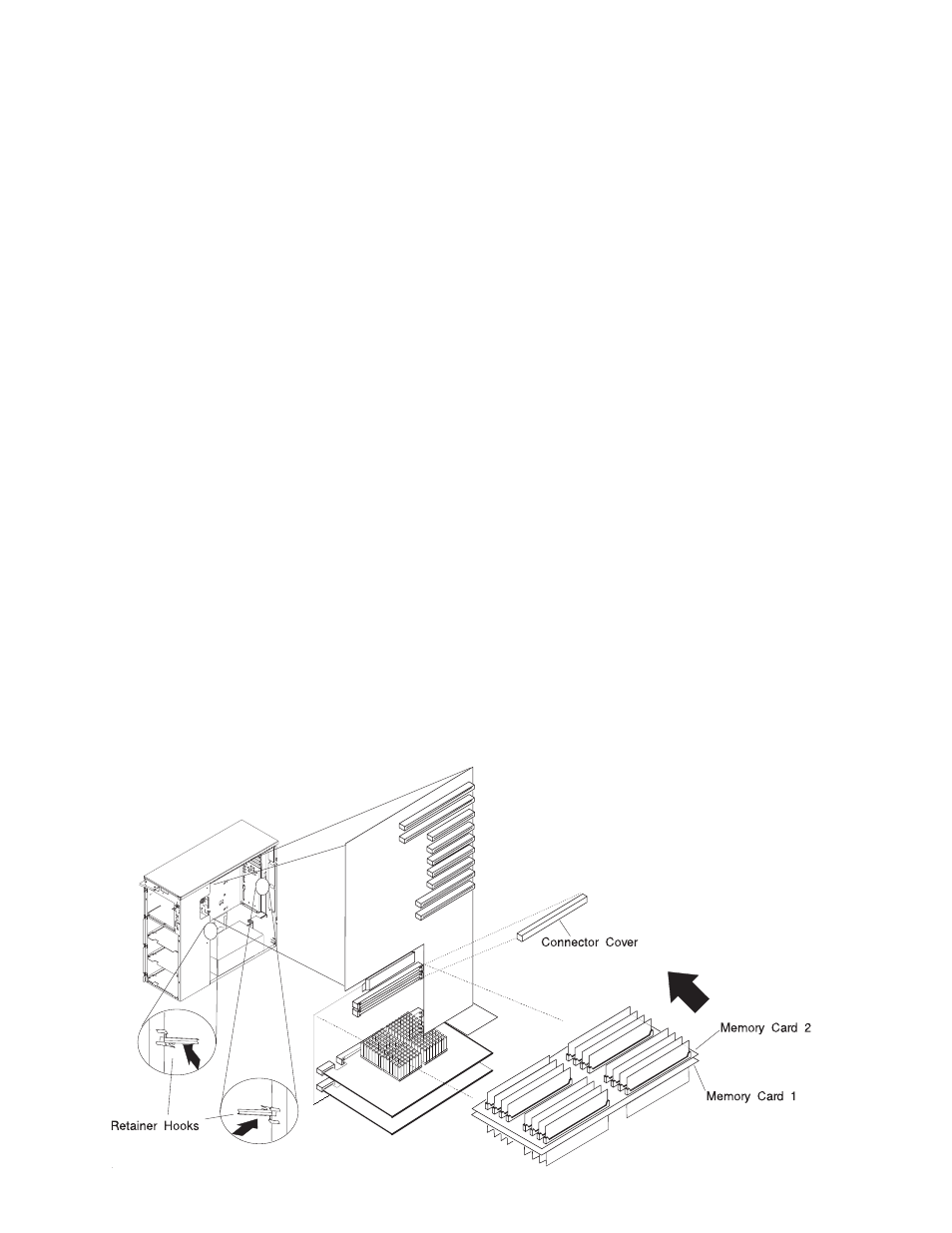

4. Open the retainer hooks.
Attention: To prevent damage to the card and the card connectors, open and
close the retainer hooks at the same time.
5. Remove the connector cover that is over the unused memory card slot.
6. Place the memory card in the card guide rails.
7. Make sure that the black tabs on the new card are captured by the retainer
hooks.
8. Align the card with the connector.
9. Close the retainer hooks to set the card.
Attention: To prevent damage to the card and the card connectors, open and
close the retainer hooks at the same time.
5-20 IBM RS/6000 7025 F50 Series User's Guide
