Intel AX965Q - Manual (Page 74)

ATX Main board
74

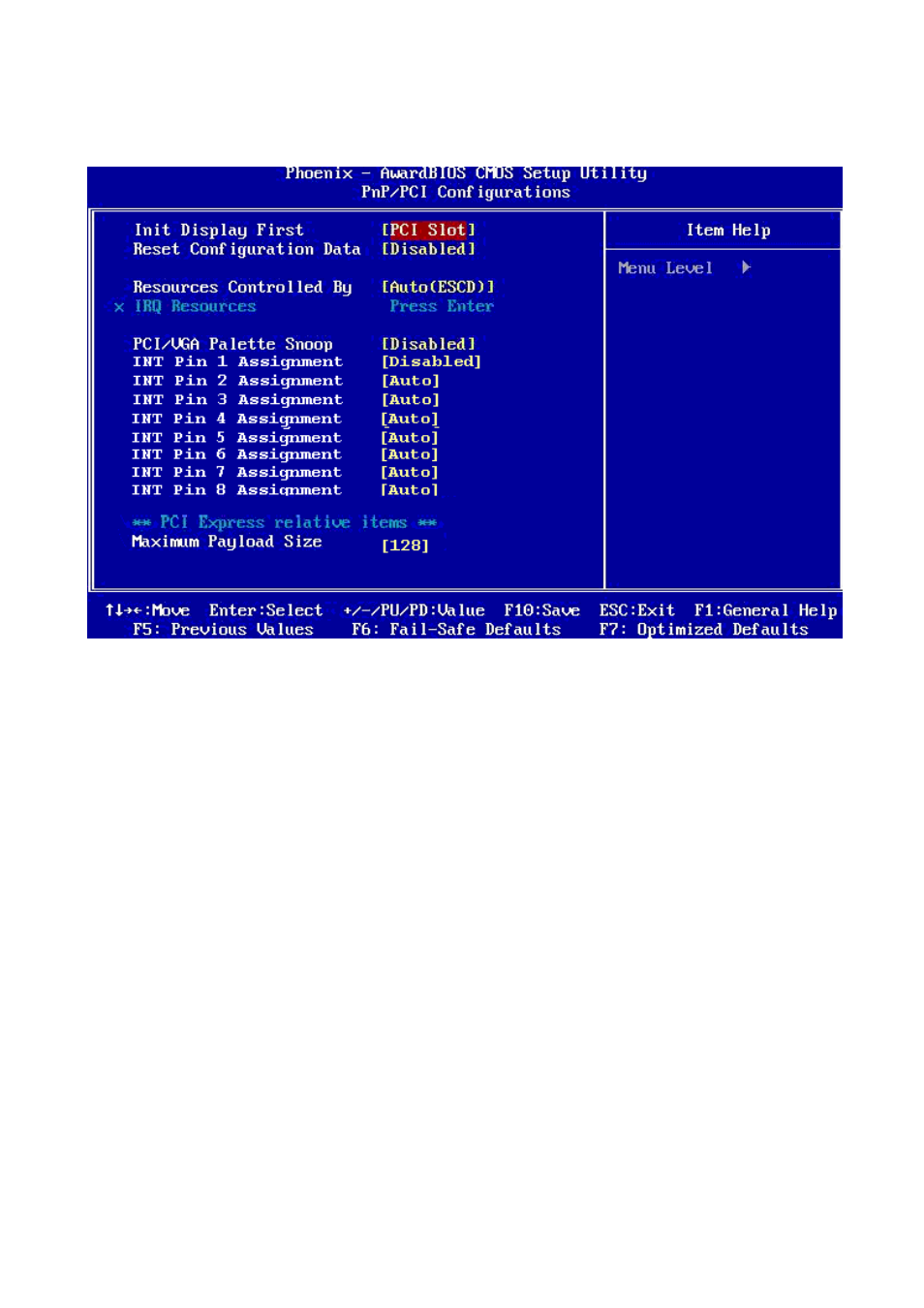

2.2.6 PnP/PCI Configurations
2.2.6.1 Init Display First
This item allows you to choose the first display interface to initiate while booting. The choice
is “PCI Slot” or “Onboard”.
2.2.6.2 Rest Configuration Data
The default is “Disabled”. Select Enabled to reset Extended System Configuration Data
(ESCD) if you have installed a new add-on card, and system configuration is in such a state
that the OS cannot boot.
2.2.6.3 Resource Controlled By
The commands here are “Auto(ESCD)” or “Manual”. Choosing “Manual” requires you to
choose resources from the following sub-menu.
“Auto(ESCD)” automatically configures all of the boot and Plug and Play devices, but you
must be using Windows 95 or above.
