Intel AX965Q User Manual
Page 43
User’s Manual
ATX Main board
43

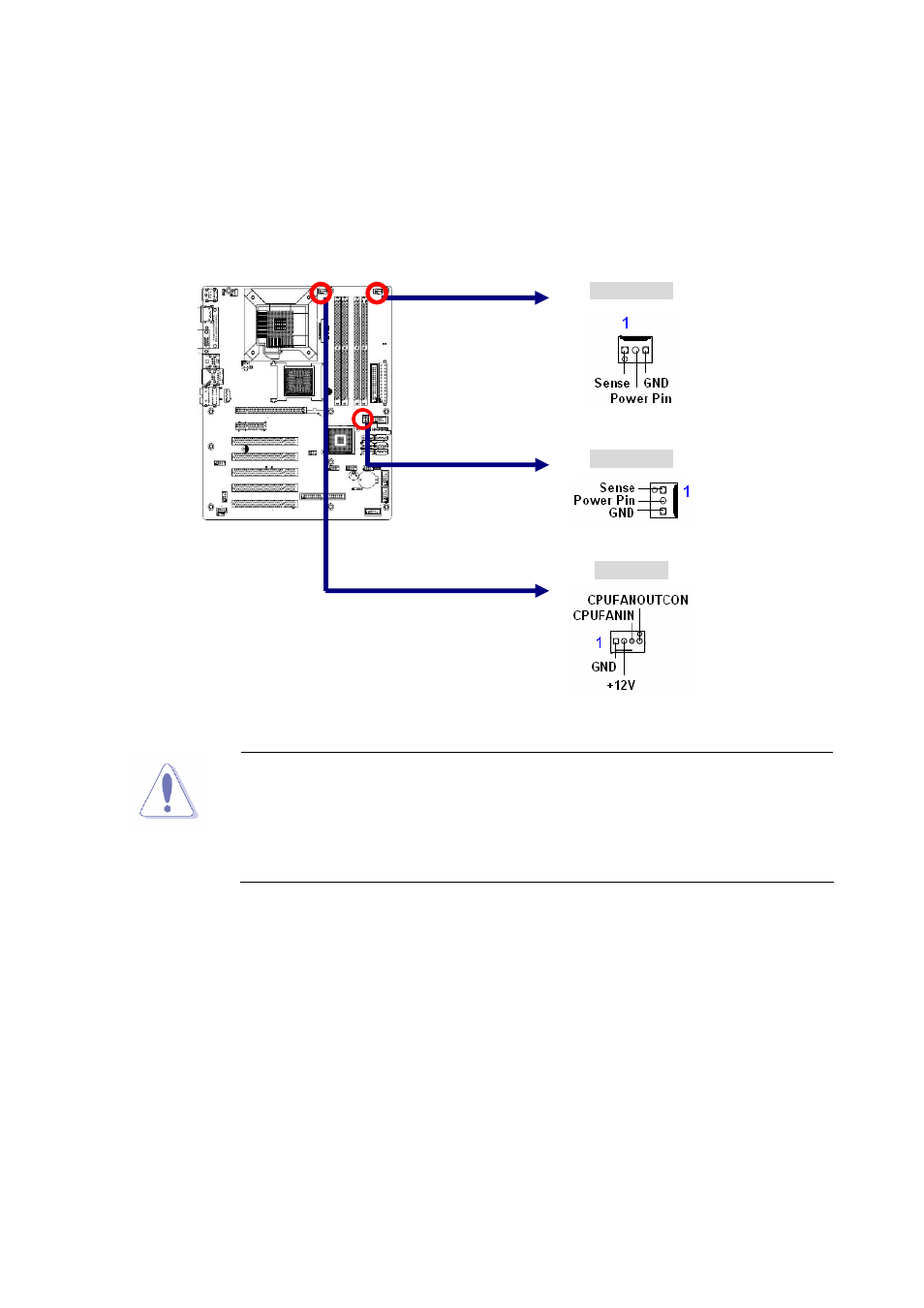

1.8.2.4 CPU & Chassis Fan Connector (CPU_FAN, CHA_FAN1, CHA_FAN2)
The fan connectors support cooling fans of 350 mA ~ 2000 mA (24 W max.) or a total of 1 A
~ 7 A (84 W max.) at +12V. Connect the fan cables to the fan connectors on the
motherboard, making sure that the black wire of each cable matches the ground pin of the
connector
CHA_FAN1
CHA_FAN2
CPU_FAN
z Do not forget to connect the fan cables to the fan connectors.
Insufficient air flow inside the system may damage the
motherboard components, and hardware monitoring errors can
occur if you fail to plug this connector.
z These are not jumpers! DO NOT place jumper caps on the fan
connectors.
