Page 49
User’s Manual
ATX Main board
49

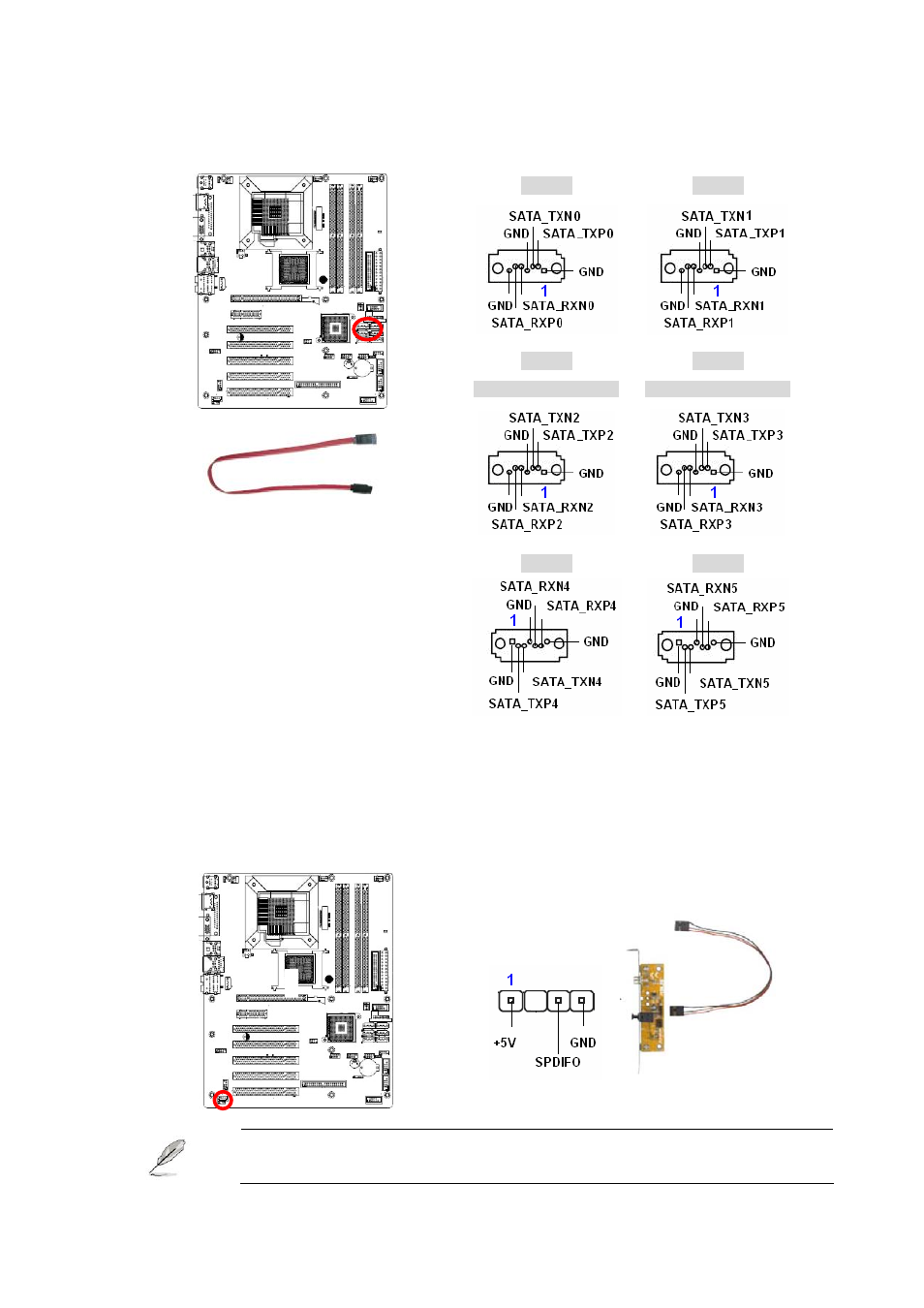

1.8.2.15 Serial ATA Connector (SATA1~6)
(SATA 5, 6 are optional for ICH8DO)
SATA1
SATA2
SATA5
(Optional for ICH8DO)
SATA6
(Optional for ICH8DO)
SATA3
SATA4
1.8.2.16 Digital Audio Connector (SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port(s). Connect
the S/PDIF module cable to this connector, then install the module to a slot opening at the
back of the system chassis.
The S/PDIF module is purchased separately.
